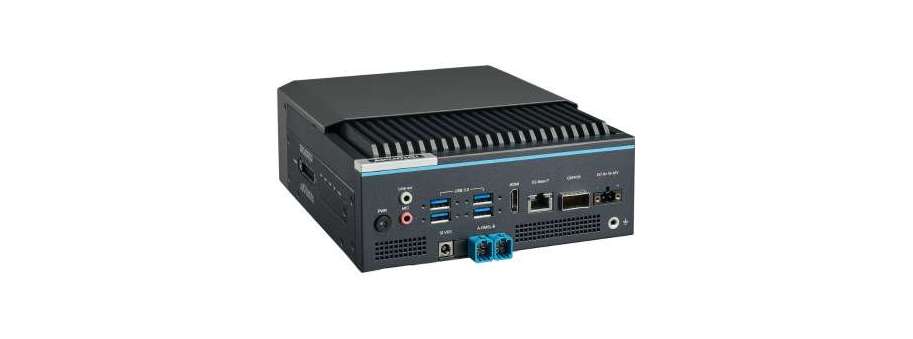

Промышленная система для искусственного интеллекта на базе NVIDIA® Jetson Thor™ 1 x 5GbE, 4 x USB 3.2 Gen 2 Advantech MIC-742-AT
- Встроенный процессор NVIDIA® Jetson T5000™ / Jetson T4000™ с производительностью до 2070 TFLOPS (FP4)
- Поддерживает 1 x QSFP28 (T5000: 4 x 25GbE / T4000: 3 x 25GbE)
- Поддерживает 1 x 5GbE, 4 x USB 3.2 Gen 2, 1 x M.2 AEkey (WiFi), 1 x M.2 Bkey (LTE)
- Поддерживает 4 x CANbus, 1 x I2C
- Поддерживает в общей сложности 8 каналов GMSL2.0 с мини-разъемами FAKRA
Дополнительная информация
Process |
NVIDIA® Jetson T5000™ / Jetson T4000™ |
| CPU |
|
| GPU |
|
| Memory |
|
Ethernet |
|
| RJ45 | 1 x 10/100/1000/2500/5000 Mbps Ethernet |
| QSFP28 |
|
I/O |
|
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB | 4 x USB 3.2 Gen 2 |
| OTG USB | 1 x Micro USB |
| Console | 1 x microUSB console for debug (UART to USB) |
| Audio | 1 x audio speaker out, MIC in on board |
| CANbus | 4 x CAN FD (T5000 only) |
| GMSL (optional) | 4 x MIPI 4 lanes (Support 8-ch GMSL2.0 with mini FAKRA connectors) |
| I2C | 1 x I2C |
| SIM card | 1 x Nano SIM on side of board |
Expansion |
|
| M.2 Ekey | 1 x 2230 E-key (Signal: PCIex1 + USB2.0) |
| M.2 Bkey | 1 x 3052/3042 B-key (Signal: USB3.0 + USB2.0) |
| SATA | 2 x SATA connector |
| TPM | 1 x TPM (onboard) |
Storage |
|
| M.2 M.key | 1 x 2280 M-key NVMe (PCIex4) pre-installed 1TB SSD |
Power |
|
| Power Supply | Power input: 19-36V |
| Power Type | Terminal Block 2 Pin |
| Internal pin header | 3 x SMART FAN |
Environment |
|
| Operational Temperature | -10 ~ 60 °C with 0.7 m/s air flow |
| Operating Humidity | 95% @ 40 °C (non-condensing) |
| Vibration | 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
Mechanical |
|
| Dimensions (W x D x H) | 217 x 76.4 x 184.5 mm |
| Weight | 3kg |
| Installation | Wall mount/Din rail |
| Operating System | NVIDIA Jetpack™ 7.0 |
| Certifications | CE/FCC/CCC/KCC/BSMI/UL (No RED certification) |
