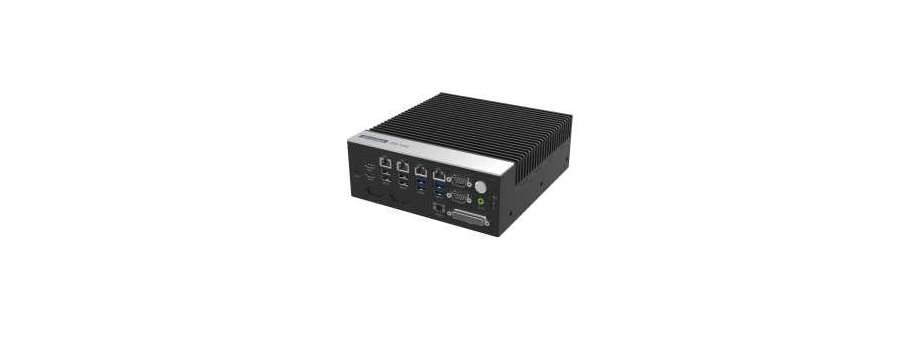

Безвентиляторный встроенный ПК Advantech ARK-3535

Высокопроизводительный компьютер на базе процессора AMD Ryzen™ серии 8000 Advantech ARK-3535

• Поддержка процессора AMD Ryzen™ 8640U/8845HS.
• Поддержка памяти DDR5-5600 SO-DIMM до 96 ГБ.
• Три дисплея с 2 x HDMI2.1 + 1 x Type C. (режим DP ALT)
• M.2 E Key и B Key для беспроводной связи
• До 1 x GbE, 3 x 2,5 GbE, 6 x COM, 8 x USB, 16-битный GPIO, 2 x CANBus
• Встроенный TPM
• 2 x 2,5" устройства хранения SATA
• Расширенный диапазон рабочих температур: от -20 до 50 °C

Дополнительная информация

Processor System
CPU	Ryzen 5 Pro 8640U	Ryzen 7 Pro 8845HS
Frequence	3.5-4.9Ghz	3.8-5.1Ghz
Core Number	6	8
TDP	28W	45W
BIOS	AMI EFI 256 Mbit	AMI EFI 256 Mbit
AI Capacity	31 TOPS	38 TOPS
Memory
Technology	DDR5 5600 MHz	DDR5 5600 MHz
Max capacity	Up to 96G	Up to 96G
Socket	2 x 262 pin SO-DIMM (ECC support)	2 x 262 pin SO-DIMM (ECC support)
Graphics
Chipset	AMD Radeon RDNA3 Graphics	AMD Radeon RDNA3 Graphics
HDMI 2.1	Up to 3840x2160@ 60Hz	Up to 3840x2160@ 60Hz
Type C(Alt)	Up to 3840x2160@ 60H	Up to 3840x2160@ 60H
Triple Display	HDMI x 2 + Type C(Alt) x 1	HDMI x 2 + Type C(Alt) x 1
Ethernet
LAN1/2/3	10/100/1000/2500 Mbps Intel i226V LAN, support Wake On Lan	10/100/1000/2500 Mbps Intel i226V LAN, support Wake On Lan
LAN4	10/100/1000 Mbps Intel i210IT GbE, support OOB by EdgeBMC	10/100/1000 Mbps Intel i210IT GbE, support OOB by EdgeBMC
Audio
Interface	Realtek ALC888S, Mic-in/Line-out(Switch by BIOS)	Realtek ALC888S, Mic-in/Line-out(Switch by BIOS)
I/O Interface
Seriel Ports	6x, (2x RS232/422/485 + 4x RS232/485), COM1/COM2 support High speed COM	6x, (2x RS232/422/485 + 4x RS232/485), COM1/COM2 support High speed COM
USB Ports Type A	8x (4 x USB3.2, 2 x Gen2x1, 2xGen1x1+ 4 x USD2.0)	8x (4 x USB3.2, 2 x Gen2x1, 2xGen1x1+ 4 x USD2.0)
USB Port Type C	1x USB4, DP ALT mode, 15W	1x USB4, DP ALT mode, 15W
GPIO	16-bit GPIO	16-bit GPIO
CANBus	2	2
Remote Switch	1x 4pin connector	1x 4pin connector
Antenna holes	6x (3x left, 3x right)	6x (3x left, 3x right)
Expansion
M.2	1x Key B 2280 PCIe Gen4 x2, USB3.2, with nano SIM holder#1 1x Key E 2230 PCIe Gen3 x2, USB2.0	1x Key B 2280 PCIe Gen4 x2, USB3.2, with nano SIM holder#1 1x Key E 2230 PCIe Gen3 x2, USB2.0
Add-on Card Slot	1 Slot PCIe x16 (by optional AMO-3511 with PCIe x8 signal)	1 Slot PCIe x16 (by optional AMO-3511 with PCIe x8 signal)
Storage
SSD	2 x 2.5” SATAIII Max. 9.5mm height HDD bays	2 x 2.5” SATAIII Max. 9.5mm height HDD bays
M.2	1x Key B 2280 PCIe Gen4 x2 1x Key E 2230 PCIe Gen3 x2	1x Key B 2280 PCIe Gen4 x2 1x Key E 2230 PCIe Gen3 x2
Other
WatchDog Timer	255 levels timer interval, setup by software	255 levels timer interval, setup by software
TPM 2.0	NPCT764AABYX FW7.2.3.1 (On board)	NPCT764AABYX FW7.2.3.1 (On board)
Software Support
Microsoft Windows	Windows 11	Windows 11
Linux	Ubuntu 24.04	Ubuntu 24.04
Power Requirement
Power Type	ATX/AT	ATX/AT
Power Input Voltage	9-36 VDC	9-36 VDC
Power Adapter	230W AC to DC (Option)	230W AC to DC (Option)
Power Consumption
Typical (OS idle mode)	10.8W	9.12W
Max. (Full loading	74.4W	94.08W
Mechanical
Construction	Aluminum top + metal bottom	Aluminum top + metal bottom
Mounting	Wall Mounting Kit	Wall Mounting Kit
Dimensions (W x H x D)	200 x 75 x 215 mm	200 x 75 x 215 mm
Weight	3.285Kg	3.285Kg
Environment
Operating Temperature	With extended temp. peripherals: -20 ~ 50° C with 0.7m/s air flow	With extended temp. peripherals: -20 ~ 50° C with 0.7m/s air flow
Storage Temperature	-40 ~ 85 °C (-40 ~ 185°F)	-40 ~ 85 °C (-40 ~ 185°F)
Relative Humidity	95% @ 40 °C (non-condensing)	95% @ 40 °C (non-condensing)
Vibration during Operation	With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount and SSD)	With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis (with Wall Mount and SSD)
Shock during Operation	With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount and SSD)	With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration (with Wall Mount and SSD)
EMC	CE/FCC Class B, CCC, UKCA	CE/FCC Class B, CCC, UKCA
Safety	UL, CB, CCC, BSMI	UL, CB, CCC, BSMI
