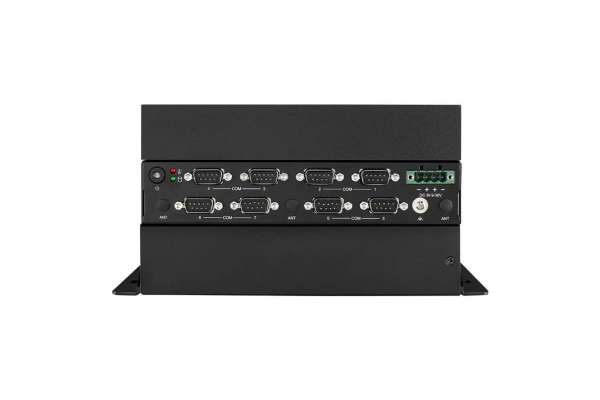

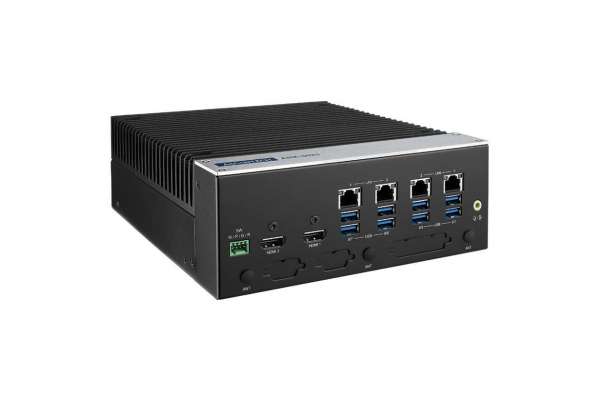

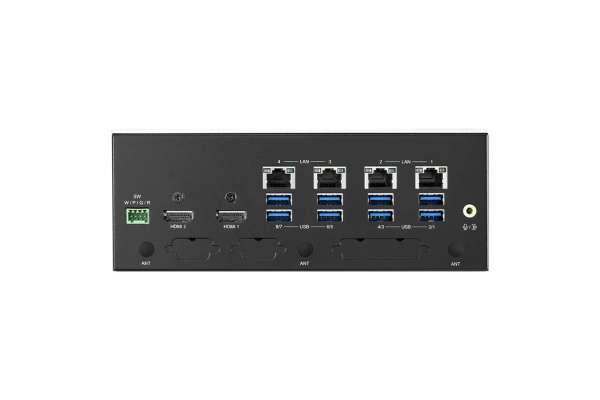

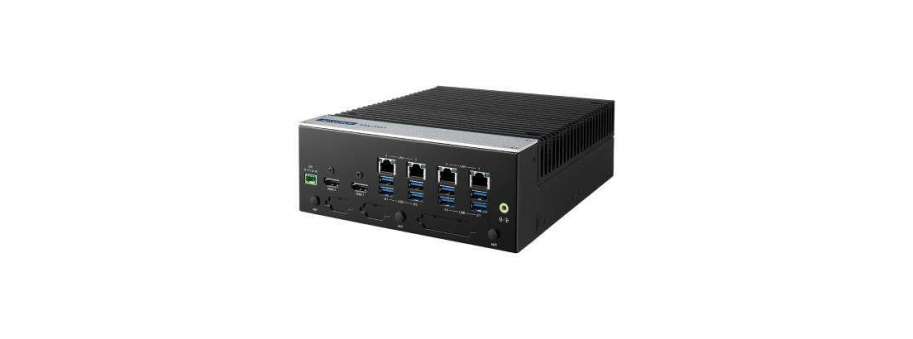

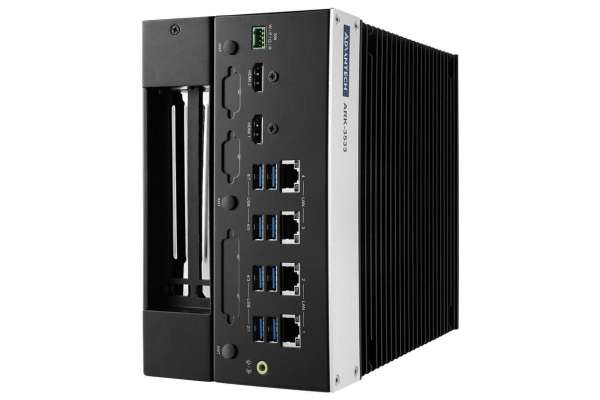

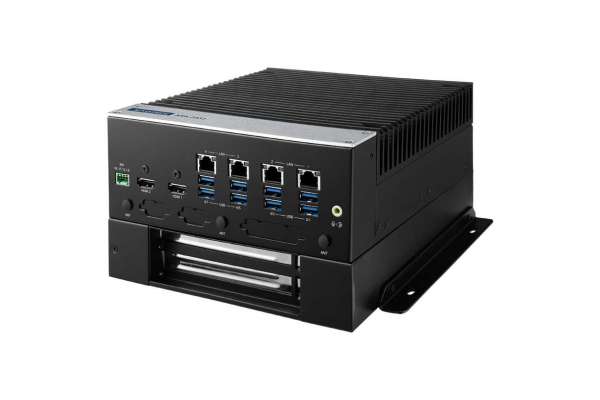

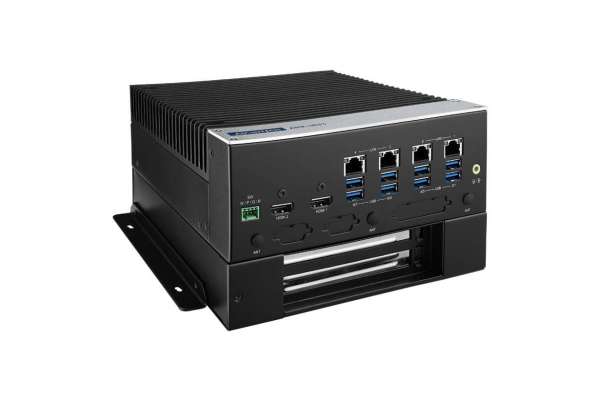

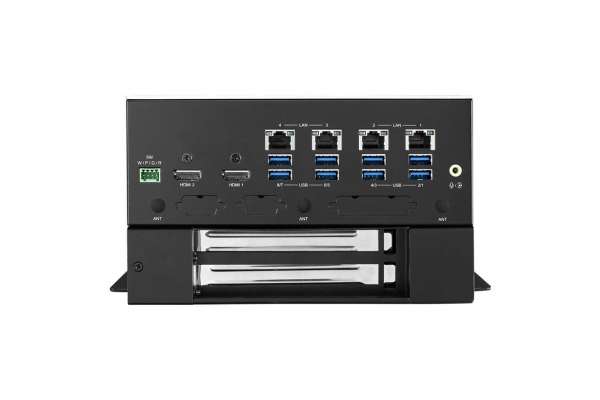

Безвентиляторный ПК Advantech ARK-3533

Расширяемый встраиваемый ПК на Intel® 12-го/13-го/14-го поколения Core™ i3/i5/i7/i9 LGA1700 Advantech ARK-3533

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
ARK-3533-00A1	Компактний промисловий комп'ютер Advantech ARK-3533 Intel RPL-S H610E 4LAN+8USB+8COM, 9-36V	52 927,9
ARK-3533-00A1U	Компактний промисловий комп'ютер Advantech ARK-35 Intel RPL-S H610E 4LAN+8USB+8COM, 9-36V	56 710,4

• Поддержка процессоров Intel® Core™ i3/i5/i7/i9 12-го/13-го/14-го поколения
• Два дисплея: HDMI + HDMI
• Поддержка памяти DDR5 SO-DIMM до 64 ГБ
• Широкий диапазон входного напряжения 9–36 В постоянного тока.
• Поддержка 2 отсеков для жестких дисков 2,5".
• Поддержка до 4 портов GbE, 8 портов USB, 8 портов COM, 2 портов CANBus.
• В комплекте SUSI API, WISE-DeviceOn, Trellix и Acronis.
• Поддержка Windows 11 IoT Enterprise LTSC.

14th Generation Processor
CPU	i9-14900T	i7-14700T	i5-14500T	i3-14100T
P-core Frequency	1.1-5.5GHz	1.3-5.0GHz	1.7-4.8GHz	2.7-4.4GHz
L3 Cache	36MB	33MB	24MB	12MB
Cores	24	20	14	4
TDP	35W	35W	35W	35W
Chipset	H610E	H610E	H610E	H610E
BIOS	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit
13th and 12th Generation Processor
CPU	i9-13900TE	i7-13700TE	i5-13500TE	i3-13100TE	i9-12900TE	i7-12700TE	i5-12500TE	i3-12100TE
P-core Frequency	1.0-5.0GHz	1.1-4.8GHz	1.3-4.5GHz	2.4-4.1GHz	1.1-4.8GHz	1.4-4.6GHz	1.9-4.3GHz	2.1-4.0GHz
L3 Cache	36MB	30MB	24MB	12MB	30MB	25MB	18MB	12MB
Cores	24	16	14	4	16	12	6	4
TDP	35W	35W	35W	35W	35W	35W	35W	35W
Chipset	H610E	H610E	H610E	H610E	H610E	H610E	H610E	H610E
BIOS	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit	AMI EFI 256Mbit

Дополнительная информация

Memory
Technology	DDR5 4800 MHz
Max. Capacity	64 GB
Socket	2 x 262-pin SO-DIMM
Graphics
Chipset	Intel® UHD Graphics 770
Graphic Engine	DirectX 12, OpenGL 4.5 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9
HDMI	2 HDMI ports, HDMI 2.0 for HD video playback, 4096x2160@60Hz
Dual Display	HDMI+HDMI (DP support by project)
Ethernet
LAN1	10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2/3/4	10/100/1000/2500 Mbps Intel i226-V GbE, support Wake On Lan
Audio
Interface	Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)
Others
Watch dog Timer	255-level timer interval, setup by software
TPM	TPM 2.0 (by optional AMO-I029)
I/O Interface
Serial Port	4 x RS-232/422/485 port with auto flow control, 4 x RS-232
USB	4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0
DIO	16bit DIO (by optional cable)
Expansions
CANBus	2 ports by optional cable
M.2	1 x M2. 2230 E key and 1 x M.2 2280 B key with SIM holder #1
Add-on Card Slot	2 Slot PCI (by optional AMO-3510)
Maximum card size	110mm (H) x 180mm (L)
Storage
HDD	2 x 2.5" SATAIII 9mm height HDD bays
NVME	1 x PCIex2 (Share with M.2 2280 B key)
Software Support
Microsoft Windows	Windows 10/11
Linux	Ubuntu 22.04, others by project support
Power Requirements
Power Type	AT/ATX
Power Input Voltage	9-36V
Power Adapter	AC to DC (Optional)
Power Consumption (CPU/Memory Only)
Typical	21.2W
Max.	40.4W
Mechanical
Construction	Aluminum housing
Mounting	Desk mounting
Dimensions (W x H x D)	200 x 75 x 215 mm
Weight	3.2 Kg
Environment
Operating Temperature	Up to 35W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Storage Temperature	-40 ~ 85° C
Relative Humidity	95% @ 40° C (non-condensing)
Vibration During Operation	With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation	With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC	CE/FCC Class B, CCC, BSMI, UKCA
Safety	CB, UL, CCC, BSMI, UKCA
