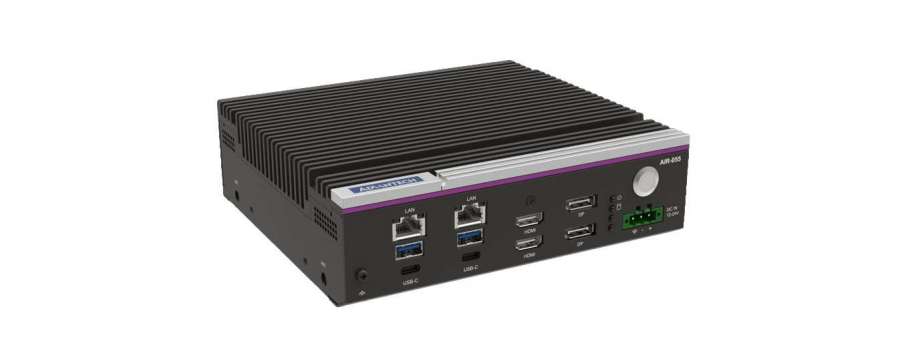

Компактный Edge AI Advantech AIR-055

Система вывода данных на основе ИИ Qualcomm® Dragonwing IQ9075M Advantech AIR-055

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
AIR-055D-U2A1U	Edge Advantech AI система AIR-055 STD IQ9075M 36GB	162 477,0

• Компактный и высокопроизводительный Edge AI-бокс с вычислительной мощностью до 100 TOPS
• Встроенный процессор Qualcomm® Dragonwing IQ9075M
• Широкий диапазон напряжения питания 12~24 В и широкий диапазон температур -20~55 °C
• Множество портов ввода/вывода: 2 x 2.5G LAN, 1 x DIO (DB9), 3 x COM, 2 x CANFD, 2 x USB 3.2 Type A и 2 x USB Type C, 2 x USB 2.0 Type A
• Поддержка различных расширений: 1 x M.2 M-key 2280 (PCIE x4) и 1 x M.2 B-key 3052 (USB 3.2 Gen1)
• Поддержка Edge AI SDK / Inference Kit / WEDA

Дополнительная информация

Model	AIR-055D-U2A1U / AIR-055D-U2A1
Processor Module
Qualcomm® Dragonwing Series	IQ-9075M
CPU	Qualcomm® Kryo Gen 6 CPU built on Arm v8.2 Cortex technology 2.36 GHz
GPU	Adreno 663 GPU support safe GPGPU compute up to 800Mhz
AI Performance Reference	pute up to 800Mhz AI Performance Reference
Memory	36GB 96bit LPDDR5 DRAM
Ethernet
Interface	2x RJ-45
PHY	Realtek RTL8221D
Speed	2.5 Gigabit Ethernet (10/100/1000/2500 Mbps, optional PoE support)
Display
HDMI	2x HDMI 1.4 (Max. resolution 3840 x 2160 @ 30Hz)
DP	2x DP 1.4 (Max. resolution 3840 x 2160 @ 60Hz)
IO Ports
USB	1x USB 3.2 Gen2 Type A* 1x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type C 2x USB 2.0
CANFD (8 Mbps)	2x DB9
DIO	1x 8 bit (DB9)
COM	3 x RS-232/RS-422/RS-485 (COM 1/2 isolation)
Audio	3.5mm Headphone out/MIC Combo Jack
Expansion
M.2	1x M.2 3052 B Key(USB 3.2 Gen1)
Others
TPM	TPM2.0
Storage
M.2 M Key	1 x M.2 2280 M Key(PCIE x4)
128GB UFS3.1	on board (default)
Power Consumption
Typical (OS idle mode)	7.92W
Max. (Full loading)	54.24W
Power Requirement
Power Supply voltage	12-24V DC-IN, Power adaptor 150W
Power Type	ATX/AT mode, ATX default
Environment
Operational Temperature	-20 ~ 55°C with non-POE w/0.7 m/s airflow -20 ~ 55°C with POE w/0.7 m/s airflow
Operating Humidity	95% @ 40 °C (non-condensing)
Vibration	3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Mechanical
Dimensions (W x D x H) Weight	190 x 174 x 57.8 mm
Weight	2.14 kg
Mounting Support	Wall mounting
Operating System
Linux	Ubuntu 24.04
Software Support
Software API	Edge AI SDK / Inference Kit / WEDA compatible
Certifications
EMC/Safety	CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate)
