Встраиваемая система на процессорах Intel® Arrow Lake-S Core™ Ultra 200S Series, высокопроизводительная и с интерфейсом PCIe, поддерживает до 2 плат PCI/PCIe Cincoze DS-1500

Производитель: Cincoze
Facebook Twitter Linkedin Mail

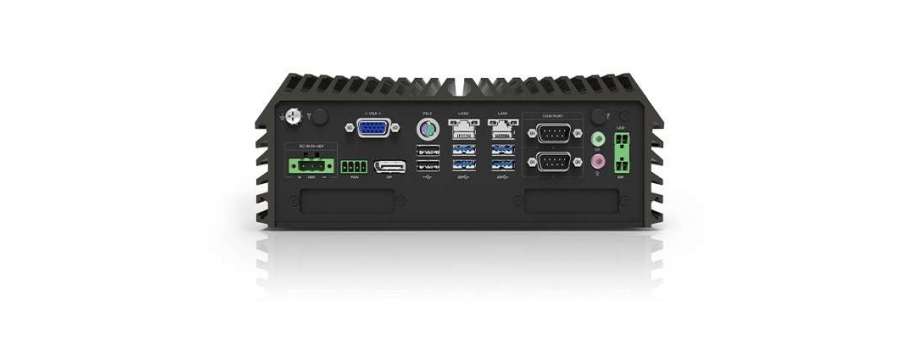

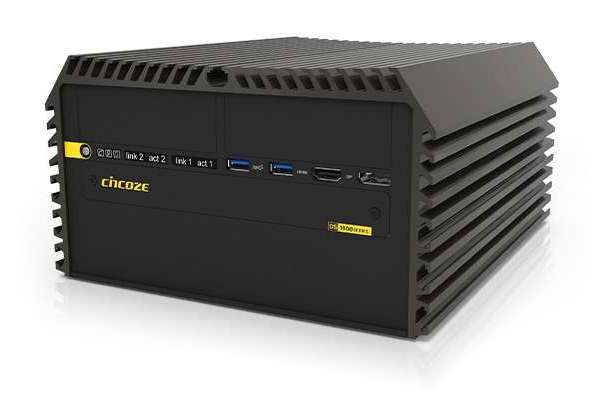

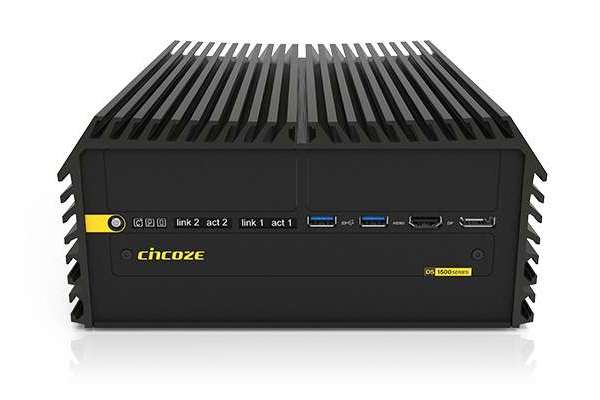

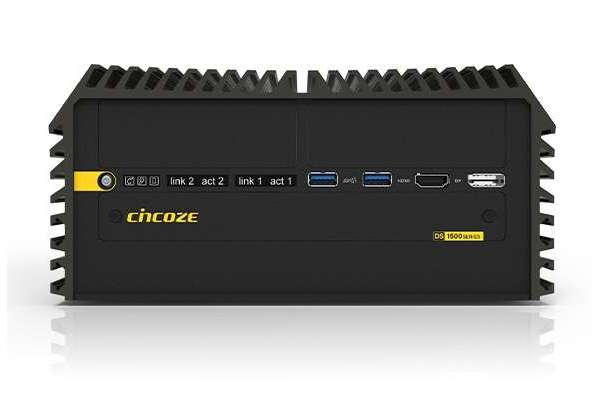

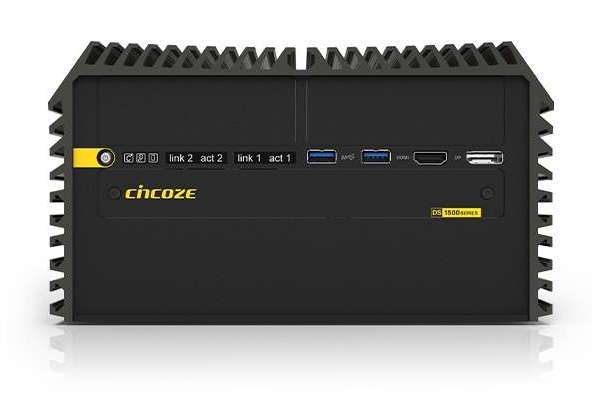

Серия DS-1500 — это высокопроизводительный, расширяемый, прочный встраиваемый компьютер, поддерживающий модульное расширение ввода/вывода и до двух слотов PCI/PCIe. Он имеет международные сертификаты, гарантирующие стабильную и надежную работу в суровых условиях, что делает его идеальным для интеллектуального производства, железнодорожного транспорта и многого другого.

  • Intel® Arrow Lake-S Core™ Ultra 200S Series (максимальная TDP 65 Вт)
  • 2 разъема DDR5 SODIMM/CSODIMM, до 6400 МГц, 96 ГБ
  • 2 слота расширения PCI/PCIe, до 130 Вт
  • Дополнительные модули CMI для расширения ввода/вывода
  • Дополнительные модули CFM для аппаратного TPM, датчика зажигания и PoE
  • Широкий диапазон рабочих температур от -40°C до 60°C

Дополнительная информация

DS-1500 DS-1501 DS-1502

System
Processor

Arrow Lake-S Ultra 200S Series CPU:

- Intel® Core™ Ultra 9 285 24 Cores Up to 5.6 GHz, TDP 65W

- Intel® Core™ Ultra 9 285T 24 Cores Up to 5.4 GHz, TDP 35W

- Intel® Core™ Ultra 7 265 20 Cores Up to 5.3 GHz, TDP 65W

- Intel® Core™ Ultra 7 265T 20 Cores Up to 5.3 GHz, TDP 35W

- Intel® Core™ Ultra 5 245 14 Cores Up to 5.1 GHz, TDP 65W

- Intel® Core™ Ultra 5 245T 14 Cores Up to 5.1 GHz, TDP 35W

- Intel® Core™ Ultra 5 225 10 Cores Up to 4.9 GHz, TDP 65W

- Intel® Core™ Ultra 5 225T 10 Cores Up to 4.9 GHz, TDP 35W
Chipset Intel W880 Chipset
Memory

2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type

- Ultra 9 / 7: Supports 6400MHz, 96GB

- Ultra 5: Supports Up to 5600MHz, 96GB
BIOS AMI BIOS

Graphics
Graphics Engine Integrated Intel® Xe LPG Graphics
Maximum Display Output Supports Quad Independent Display
VGA 1x VGA Connector : 1920 x 1200@60Hz
DP

2x DP Connector : 4096 x 2304@60Hz

- Support cable switch HDMI 4096 x 2160@30Hz

* Verified maximum resolution: 3840x2160 @60Hz
HDMI

1x HDMI Connector : 4096x2160@30Hz

* Verified maximum resolution: 3840x2160 @30Hz

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN
  • 1x 2.5 GbE LAN, RJ45 - GbE1: Intel® I225
  • 1x GbE LAN, RJ45 - GbE2: Intel® I219
COM 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 2x 10Gbps USB 3.2 Gen2x1, Type A
  • 4x 5Gbps USB 3.2 Gen1x1, Type A
  • 2x 480Mbps USB 2.0, Type A
PS/2 1 x PS/2, 6 Pin Mini-DIN Female Connector

Storage / Expansion
2.5" SSD / HDD
  • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
  • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
M.2 Key B Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA 3.0 ), Support 5G / GNSS / Storage / Add-on Card Expansion
  • 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB2.0 / SATA), Support GNSS / Storage / Add-on Card Expansion
M.2 Key M Socket 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA 3.0 ), Support Storage / Add-on Card Expansion
PCI Express

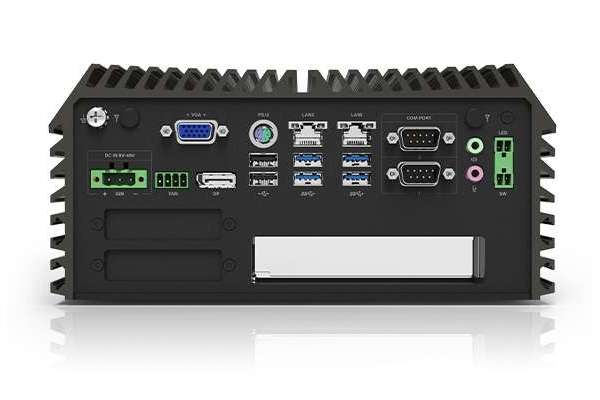

For DS-1501:

1 x PCI/PCIe Expansion Slot with Optional Riser Card

* Supports maximum dimensions of add-on card (L x H)：235 x 124 mm

* Supports GPU card up

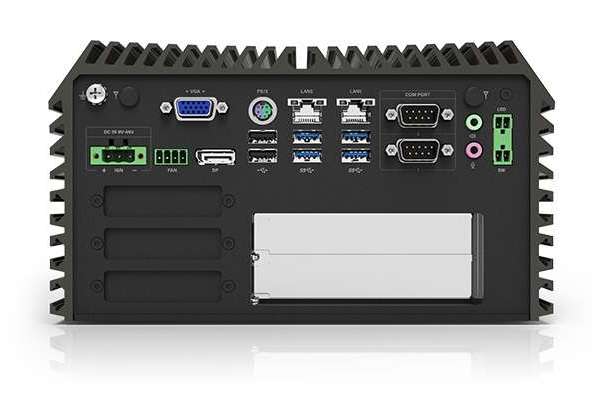

For DS-1502:

2 x PCI/PCIe Expansion Slot with Optional Riser Card

* Supports maximum dimensions of add-on card (L x H)：235 x 124 mm

* Supports GPU card up to 130
SIM 2x SIM Socket
CMI (Combined Multiple I/O) Socket
  • 2x High Speed CMI Interface for optional CMI Module Expansion
  • 2x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Socket
  • 1x CFM IGN Interface for optional CFM-IGN Module Expansion
  • 1x CFM-TPM Interface for optional CFM-TPM Module Expansion

Other Function
RAID Support RAID 0/1/5/10
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
TPM Support Discrete TPM2.0 (with Optional CFM Module)
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Antenna Holes 2

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block
Max Power Consumption
  • 35W CPU: 163W
  • 65W CPU: 262.8W

- Test conducted with CPU, 1x RAM, and 1x storage

- 100% load during burn-in
Inrush Current (Peak)
  • 35W CPU: 5.812 A@24V
  • 65W CPU: 5.983 A@24V

Physical
Dimension( W x D x H )
  • DS-1500: 227 x 261 x 88 mm
  • DS-1501: 227 x 261 x 108 mm
  • DS-1502: 227 x 261 x 128 mm
Weight Information
  • DS-1500: 4.9 kg
  • DS-1501: 5.3 kg
  • DS-1502: 5.7 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall Mount
Physical Design
  • Fanless Design
  • Cableless Design
  • Jumper-less Design
  • Unibody Design

Reliability & Protection
Reverse Power Input Protection Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF

307,224 Hours

- Database: Telcordia SR-332 Issue3, Method 1, Case 3

Operating System
Windows Windows® 11, Windows® 10
Linux Ubuntu 24.04

Environment
Operating Temperature
  • 35W TDP Processor: -40°C to 60°C (-40°F to 140°F)
  • 65W TDP Processor: -40°C to 50°C (-40°F to 122°F) With External Fan Kit

- With extended temperature peripherals; Ambient with air flow

- According to IEC60068-2-1, IEC60068-2-2
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 95%@60°C (non-Condensing)
Shock MIL-STD-810H
Vibration MIL-STD-810H
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 50121-3-2 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Railway

EMC:

EN 50155: 2021 Clause 4.4.6, 13.4.9

EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019
Fire Protection EN 45545-2
Safety UL, cUL, CB, IEC, EN 62368-1
