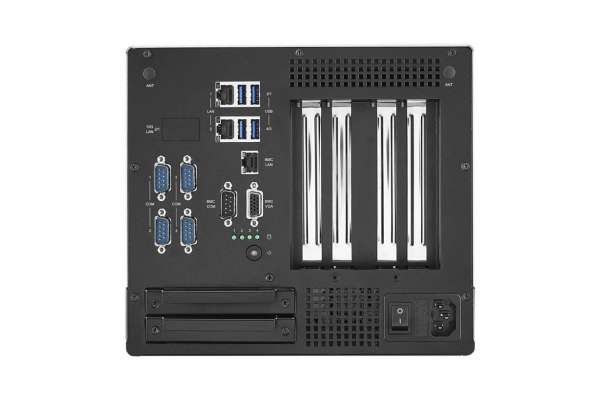

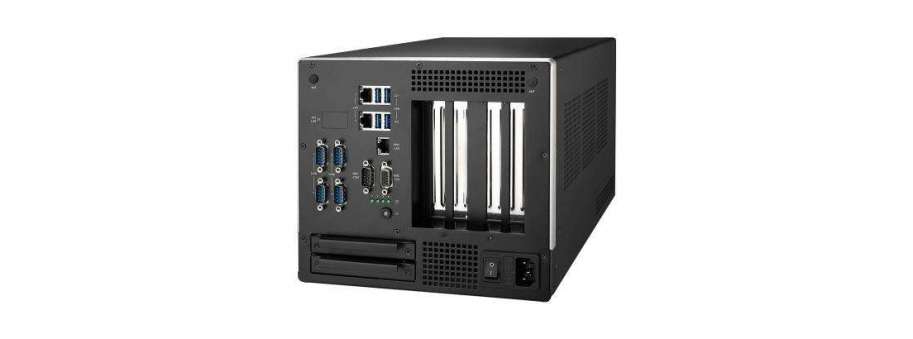

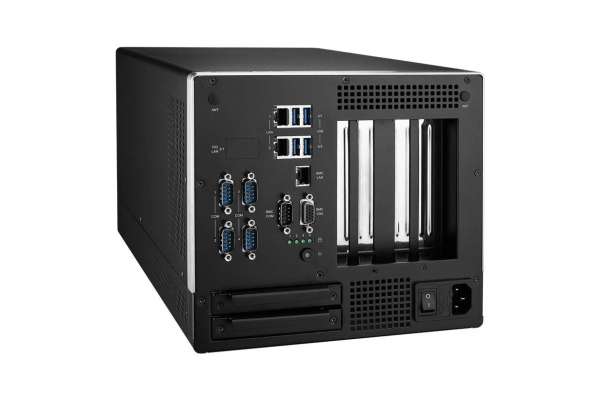

Промышленный ПК экстремальной производительности на Intel® 2nd Gen. Xeon®-D с 3 слотами расширения Advantech ARK-7060
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| ARK-7060-U0A1 | Компактний промисловий комп'ютер Advantech ARK Intel ICELAKE Xeon D-1746TER 10core, 2LAN+4USB | 241 704,0 | |
| ARK-7060-U4A1 | Компактний промисловий комп'ютер Advantech ARK Intel ICELAKE Xeon D-1715TER 4core, 2LAN+4USB | 144 463,0 |
- Процессор Intel® Xeon® D-1746TER/D-1715TER
- 4x DDR4 SO-DIMM Поддержка памяти ECC/non-ECC до 128 ГБ
- Универсальное расширение: PCI, PCIex4, PCIex16, M.2 B key, M.2 E key
- Встроенный блок питания мощностью 850 Вт
- Поддержка до 4 отсеков для жестких дисков 2,5"
- Дополнительные порты Ethernet 2 x 10GbE
- Управление по стандарту IPMI 2.0 с улучшенными характеристиками надежности и безопасности.
Дополнительная информация
| Processor System | ARK-7060-U0A1 | ARK-7060-U4A1 |
| CPU | Xeon D-1746TER | Xeon D-1715TER |
| Frequency | 2.0GHz turbo boost up to 3.1 GHz | 2.0GHz turbo boost up to 3.1 GHz |
| Core Number | 10 | 4 |
| L3 Cache | 15MB | 15MB |
| TDP | 67W | 50W |
| Chipset | N/A | N/A |
| BIOS | AMI EFI 512Mbit | AMI EFI 512Mbit |
Memory |
||
| Technology | Up to 4x 2666/2933MHz DDR4 ECC/non-ECC SO-DIMM | Up to 4x 2666/2933MHz DDR4 ECC/non-ECC SO-DIMM |
| Max. Capacit | 128 GB | 128 GB |
| Socket | 4 x 260-pin SO-DIMM | 4 x 260-pin SO-DIMM |
Ethernet |
||
| LAN1, 2 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan |
| LAN3, 4 (Optional) | 10GbE via Intel X550 (support by optional AMO-I031) | 10GbE via Intel X550 (support by optional AMO-I031) |
Others |
||
| Watch dog Timer | 255-level timer interval, setup by software | 255-level timer interval, setup by software |
| TPM | TPM 2.0 (Support by optional AMO-I029) | TPM 2.0 (Support by optional AMO-I029) |
I/O Interface |
||
| Serial Port | 4 x RS-232/422/485 port with auto flow control | 4 x RS-232/422/485 port with auto flow control |
| USB | 4 x USB 3.0 ports | 4 x USB 3.0 ports |
| Video | 1 x VGA via Aspeed AST2500 BMC | 1 x VGA via Aspeed AST2500 BMC |
| Others | 1 x GbE management port, 1 x console port | 1 x GbE management port, 1 x console port |
Expansions |
||
| M.2 B Key | 1X 2230/2242/2280 support SIM holder #1 | 1X 2230/2242/2280 support SIM holder #1 |
| M.2 E Key | 1X 2230 for WiFi Module #1 | 1X 2230 for WiFi Module #1 |
| Add-on Card Slot |
|
|
Storage |
||
| HDD | 2 x 2.5" swappable SATAIII HDD Bay with RAID 0/1 and max height 15mm (up to 4 x 2.5" SATAIII HDD Bay by optional AMK-A0042) | 2 x 2.5" swappable SATAIII HDD Bay with RAID 0/1 and max height 15mm (up to 4 x 2.5" SATAIII HDD Bay by optional AMK-A0042) |
Software Support |
||
| Microsoft Windows | Windows Server, Windows 10 | Windows Server, Windows 10 |
| Linux | Ubuntu 20.04, others by project support | Ubuntu 20.04, others by project support |
Power Requirements |
||
| Power Type | ATX | ATX |
| Power Input Voltage | 100-240V AC | 100-240V AC |
| Power Adapter | 850W power supply built-in | 850W power supply built-in |
Power Consumption (CPU/Memory Only) |
||
| Typical | 72.6W | 62.7W |
| Max. | 104.5W | 83.6W |
Mechanical |
||
| Mounting | Wall Mount | Wall Mount |
| Dimensions (W x H x D) | 230 x 205 x 390 mm (9.05" x 8.07 x 15.35") | 230 x 205 x 390 mm (9.05" x 8.07 x 15.35") |
| Weight | 9.7Kg | 9.7Kg |
| Fan | 1 x system fan 120(W) x 120(H) x 38(D)mm, 1 x CPU cooler | 1 x system fan 120(W) x 120(H) x 38(D)mm, 1 x CPU cooler |
System Management |
||
| IPMI | Aspeed AST2500 BMC IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | Aspeed AST2500 BMC IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Environment |
||
| Operating Temperature | With extended temp peripherals: -10 ~ 50° C with 0.7m/s air flow | With extended temp peripherals: -10 ~ 50° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C | -40 ~ 85° C |
| Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Vibration during Operation | With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis | With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis |
| Shock during Operation | With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration |
| EMC | CE/FCC Class B, CCC, BSMI, UKCA Safety CB(62368), UL(62368), CCC, BSMI, U | CE/FCC Class B, CCC, BSMI, UKCA Safety CB(62368), UL(62368), CCC, BSMI, U |
| Safety | CB(62368), UL(62368), CCC, BSMI, UKCA | CB(62368), UL(62368), CCC, BSMI, UKCA |
