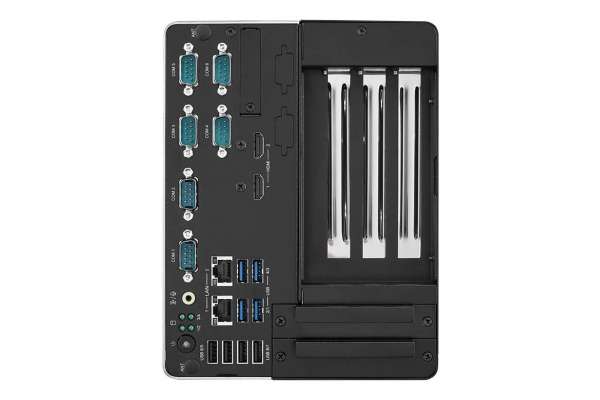

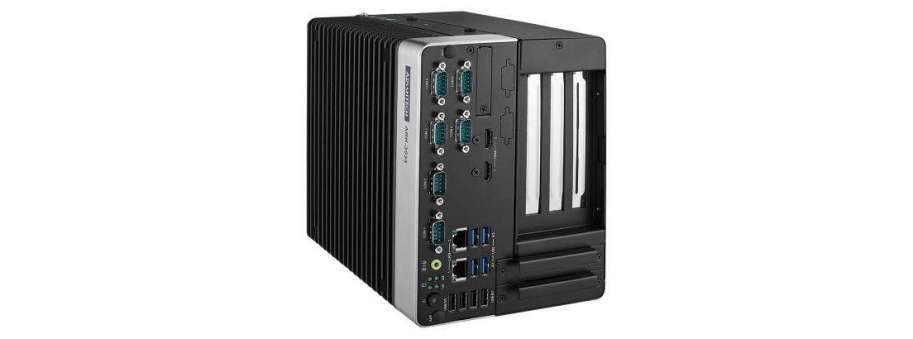

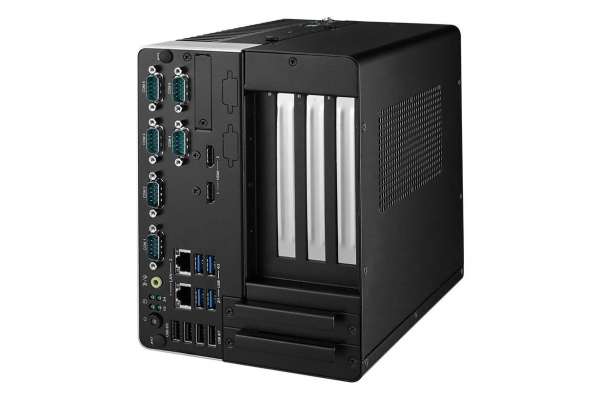

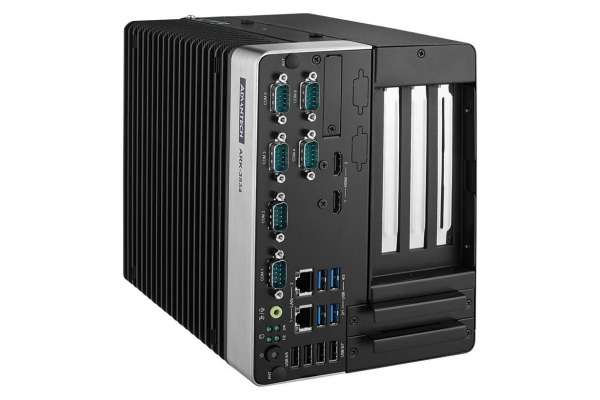

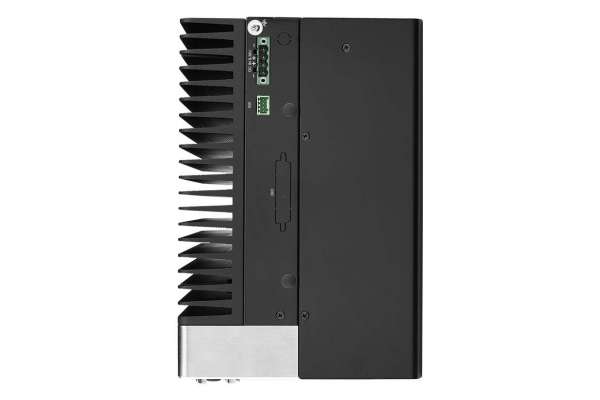

Расширяемый безвентиляторный ПК на процессорах Intel® Core™ 12-го/13-го/14-го поколения i3/i5/i7/i9 LGA1700 Advantech ARK-3534C
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| ARK-3534C-00A1 | Компактний промисловий комп'ютер Advantech ARK-35 Intel ADL-S H610E PCIex16+2*PCI, 9-36V | 70 336,8 |
- Поддержка процессоров Intel® Core™ 12-го/13-го/14-го поколения i3/i5/i7/i9.
- Три независимых дисплея: HDMI + HDMI + дополнительный дисплей.
- Поддержка памяти DDR5 SO-DIMM до 64 ГБ.
- Широкий диапазон входного напряжения 9–36 В постоянного тока.
- До 3 комплектов отсеков для жестких дисков 2.5".
- Поддержка до 4 портов GbE, 8 портов USB, 8 портов COM, 2 портов CANBus, 16-разрядного DIO, TPM2.0.
- SUSI API, WISE-DeviceOn, Trellix и Acronis в комплекте.
- Поддержка Windows 11 IoT Enterprise LTSC.
14th Generation Processor |
|||||||||
| CPU | i9-14900 | i7-14700 | i5-14500 | i5-14400 | i3-14100 | ||||
| P-core Frequency | 2.0-5.4GHz | 2.1-5.3GHz | 2.6-5.0GHz | 2.5-4.7GHz | 3.5-4.7GHz | ||||
| L3 Cache | 36MB | 33MB | 24MB | 20MB | 12MB | ||||
| Cores | 24 | 20 | 14 | 10 | 4 | ||||
| TDP | 65W | 65W | 65W | 65W | 60W | ||||
| Chipset | H610E (R680E support by project | H610E (R680E support by project | H610E (R680E support by project | H610E (R680E support by project | H610E (R680E support by project | ||||
| BIOS | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | AMI EFI 256Mbit | ||||
13th and 12th Generation Processor |
|||||||||
| CPU | i9-13900E | i7-13700E | i5-13500E i | i3-13100E | i9-12900E | i7-12700E | i5-12500E | i3-12100E | G6900E |
| P-core Frequency | 1.8-5.2GHz | 1.9-5.1GHz | 2.4-4.6GHz | 3.3-4.4GHz | 2.3-5.0GHz | 2.1-4.8GHz | 2.9-4.5GHz | 3.2-4.2GHz | 3.0GHz |
| L3 Cache | 36MB | 30MB | 24MB | 12MB | 30MB | 25MB | 18MB | 12MB | 4MB |
| Cores | 24 | 16 | 14 | 4 | 16 | 12 | 6 | 4 | 2 |
| TDP | 65W | 65W | 65W | 60W | 65W | 65W | 65W | 60W | 46W |
| Chipset | H610E (R680E support by project) | H610E (R680E support by project) | H610E (R680E support by project) | H610E (R680E support by project) | H610E (R680E support by project) | H610E (R680E support by project) | H610E (R680E support by project) | H610E (R680E support by project) | H610E (R680E support by project) |
| BIOS | AMI EFI 256Mbi | AMI EFI 256Mbi | AMI EFI 256Mbi | AMI EFI 256Mbi | AMI EFI 256Mbi | AMI EFI 256Mbi | AMI EFI 256Mbi | AMI EFI 256Mbi | AMI EFI 256Mbi |
Дополнительная информация
Memory |
|
| Technology | DDR5 4800 MHz |
| Max. Capacity | 64 GB |
| Socket | 2 x 262-pin SO-DIMM |
Graphics |
|
| Chipset | Intel® UHD Graphics 770 |
| Graphic Engine |
|
| HDMI | 2 HDMI port, HDMI 2.0 for HD video playback, 4096x2160@60Hz |
| Optional 3rd Display module | DVI-D / DP / HDMI Display Port |
| Triple Display | HDMI+HDMI + 3rd display module |
Ethernet |
|
| LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On LAN |
| LAN2 | 10/100/1000/2500 Mbps Intel i225-V GbE, support Wake On LAN (LAN3/LAN4 support by project with PCH R680E) |
| Audio | |
| Interface | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) |
Others |
|
| Watch dog Timer | 255-level timer interval, setup by software |
| TPM | TPM 2.0 (by optional AMO-I029) |
I/O Interface |
|
| Serial Port | 4 x RS-232/422/485 port with auto flow control, 2 x RS-232 (additional COM7/8 2 x RS-232 by optional cable) |
| USB |
|
| DIO | 16bit DIO (by optional cable) |
Expansions |
|
| CANBus | 2 ports by optional cable |
| M.2 | 1 x M2. 2230 E key and 1 x M.2 2280 B key with SIM holder #1 |
| Add-on Card Slot | 2 Slot PCI + 1 Slot PCIex16 (If card power power consumption over 30W for add-on cards, please bundled with AMO-3508 kit for power and thermal solutions) |
| Maximum card size | 110mm (H) x 180mm (L) |
Storage |
|
| HDD | 2 x 2.5" SATAIII 15mm height HDD bay (Up to 3 x 2.5" SATAIII HDD bays) |
| NVME | 1 x PCIex2 (Share with M.2 2280 B key) |
Software Support |
|
| Microsoft Windows | Windows 10/11 |
| Linux | Ubuntu |
Power Requirements |
|
| Power Type | AT/ATX |
| Power Input Voltage | 9-36V |
| Power Adapter | AC to DC, 230W (Optional) |
Power Consumption (CPU/Memory Only) |
|
| Typical | 56.1W |
| Max. | 92.4W |
Mechanical |
|
| Construction | Aluminum housing |
| Mounting | Desk mounting |
| Dimensions (W x H x D) | 156 x 204 x 230 mm |
| Weight | 5.705Kg |
Environment |
|
| Operating Temperature | Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow with HDD: 0 ~ 40° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C |
| Relative Humidity | 95% @ 40° C (non-condensing) |
| Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| EMC | CE/FCC Class B, CCC, BSMI |
| Safety | CB, UL, CCC, BSMI |
