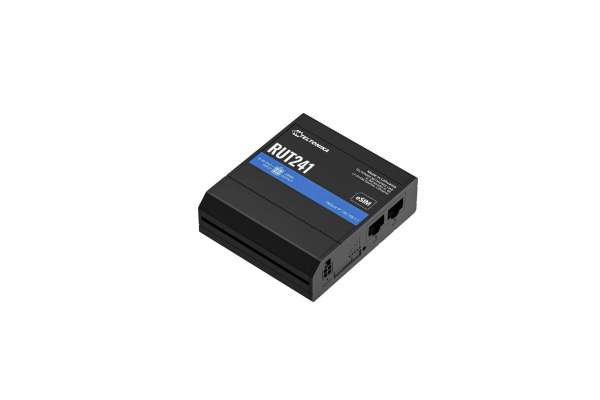

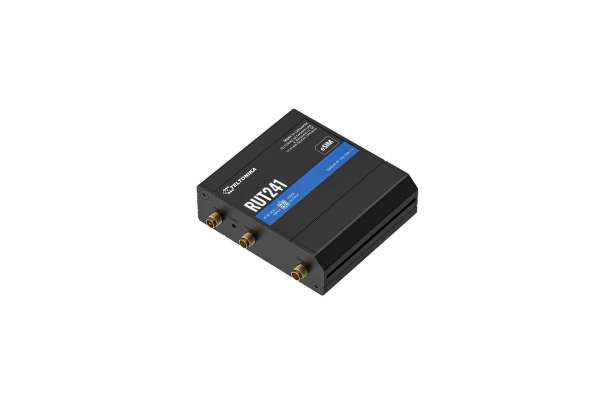

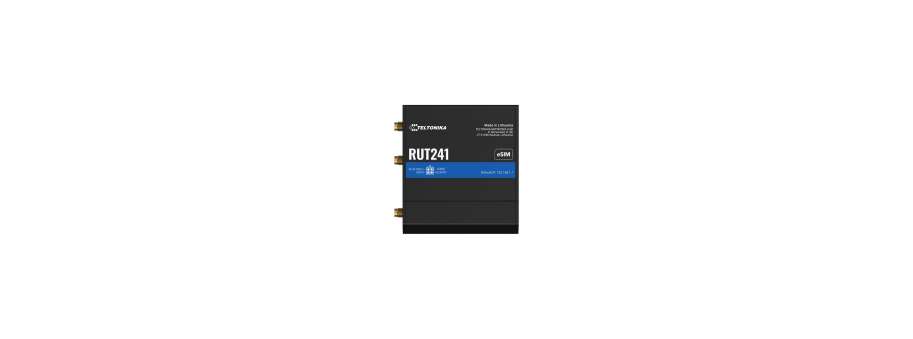

Компактный промышленный сотовый маршрутизатор для надежного и универсального подключения в сетях IoT Teltonika RUT241
RUT241 eSIM™ — это промышленный сотовый маршрутизатор, поддерживающий LTE Cat 4 и eSIM™ с потребительской архитектурой SGP.22 с возможностью выбора точки доступа. Этот компактный маршрутизатор поддерживает физическую SIM-карту с семью профилями eSIM™, которыми можно управлять через веб-интерфейс и RMS.
RUT241 eSIM™ обеспечивает бесперебойное соединение благодаря автоматическому переключению на резервный WAN-порт и двум портам Ethernet, что делает его идеальным выбором для решений M2M и IoT.
Дополнительная информация
Hardware |
|
| Mobile | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| Storage | 16 MB, SPI Flash |
| Powering options | 4-pin industrial DC power socket, 9 - 30 VDC |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder |
| eSIM™* | Consumer type eSIM™*, profile download and removal operations, up to 7 eSIM™ profiles |
| TPM | Identification and authentication module, TPM 2.0 standard |
| Antenna connectors | 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Wi-Fi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Inputs/Outputs | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Status LEDs | 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminum housing, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 130 g |
Ethernet |
|
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
Input/Output |
|
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
Power |
|
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | < 6.5 W Max |
Physical Interfaces |
|

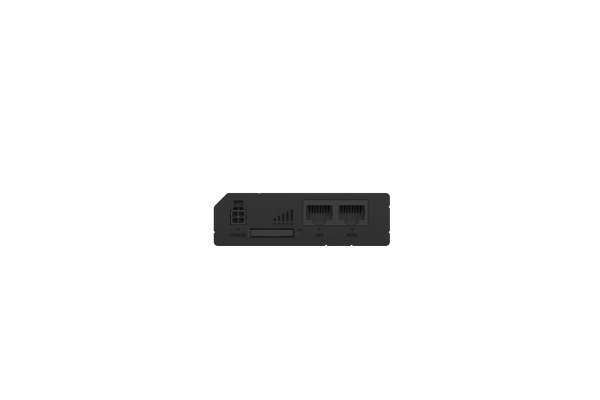

| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder |
| Power | 1 x 4-pin power connector |

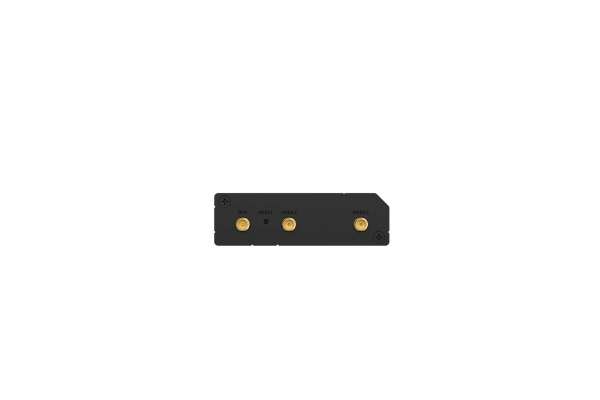

| Antennas | 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors |
| Reset | Reboot/User default reset/Factory reset button |
Physical Specification |
|
| Casing material | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 125 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment |
|
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
