Capacity Touch
HDMI
High Brightness
Input 24V DC
IP65
MIL-STD-810
Military T range
Screen Size 15"
Wallmount

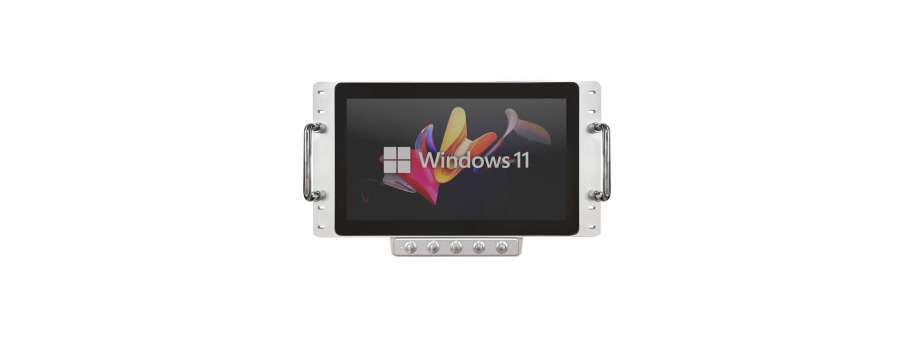

Монитор 15,6", 1500 нит, пленка Mosmite, AG, VGA/DP/HDMI, 9~36 В постоянного тока, MIL-STD-461G/1275E ELGENS TDM-P156WH5TAGF-RND2
- 15.6'' 1920*1080 FHD LCD и P-cap Touch
- IP65 и Rackmount Форма передней панели
- 1500 нит LED подсветка
- пленка Mosmite с функцией AR
- Anti-Glare
- HDMI с металлическим круглым разъемом
- USB fo Touch с металлическим круглым разъемом
- DC вход питания с MS3114E8 круглым разъемом

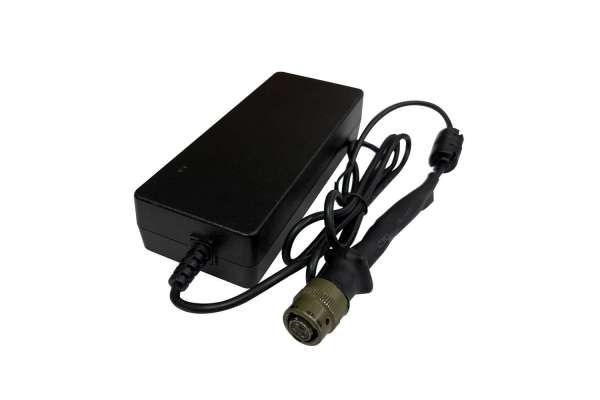

- DC 24V вход питания с 90W адаптером питания
- -40~70°C Рабочая температура
Дополнительная информация

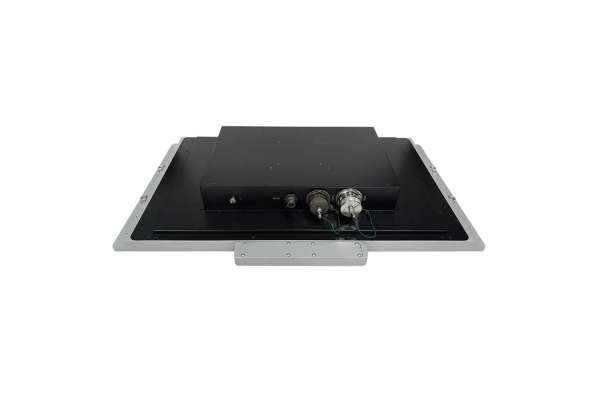

I/O Connect |
|
| External I/O Port | HDMI by Metal Circular Connector (with 1.5 meter external cable) USB(for Touch) by Metal Circular Connector (with 1.5 meter external cable) Power Input by MS3114E8 Connector |
LCD |
|
| Max. Resolution | 1920 x 1080 |
| Contrast Ratio | 800 : 1 |
| Max. Color | 16.2M |
| Luminance | 1500 nits |
| View Angle | 85/85/85/85 |
Power Requirement |
|
| Power Input | 24VDC Power Input by MS3114E8 Connector |
Touch Screen |
|
| Type | P-cap USB |
Environment |
|
| Operating Temp | -40~70 °C，IEC-60068-2-1/2/14 |
| Storage Temp | -40~70 °C |
| Humidity | 10~90% @40 °C, non-condensing |
| EMC |
|
| Vibration | MIL-STD-810H, Method 514.8, Procedure I, 5~500Hz Certification |
| Shock | MIL-STD-810H, Method 516.8, Procedure I, 20g 11ms Certification |
Mechanical |
|

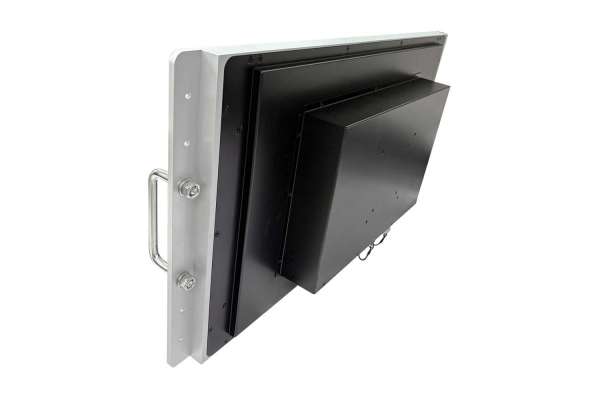

| Construction | Aluminum Bezel and Metal case |
| IP Rating | IP65 Front Side |
| Mounting | Wall Mount , VESA Mount |
| Dimension | TBC |
