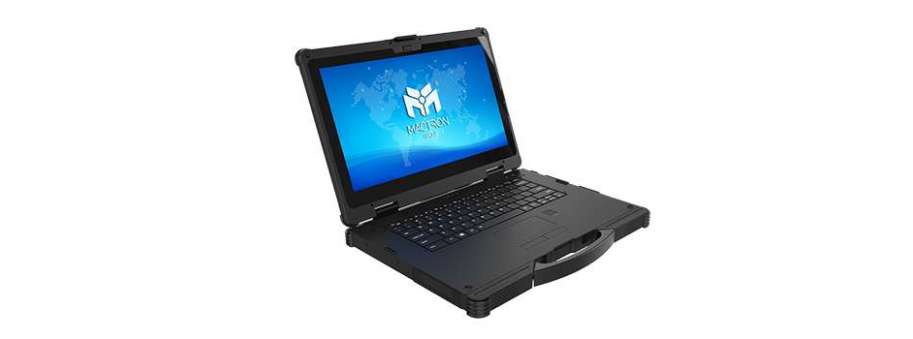

14" Промышленная система для искусственного интеллекта на Intel® Core™ Ultra 7 155H MACTRON NAS1408

Производитель: MACTRON
Facebook Twitter Linkedin Mail
  • 14" система Windows с процессором Intel® Core™ Ultra 7 155H
  • Новый интегрированный нейронный процессор для ускорения работы ИИ
  • Прочная конструкция для использования в любых условиях
  • Двухбатарейная система с возможностью горячей замены
  • Высокая яркость 1000 нит, читаемость при солнечном свете
  • Высокоскоростной интерфейс Thunderbolt 4
  • Расширенные возможности беспроводной связи: поддержка 4G/LTE, WiFi 6, Bluetooth 5.1 и GNSS

Дополнительная информация

Display
Display Type 14-inch FHD
Resolution 1920x1080
Brightness 1000 nits
Touch Panel 10-Point Capacitive Screen, Hardness above 7H; Scratch-resistant; Supports glove touch

System
CPU Intel® Core™ Ultra 7 Processor 155H 24M Cache, up to 4.80 GHz
GPU iGfx/dGfx (Intel Xe LPG Graphics)
Memory 32GB DDR5 4800MHz
Storage 256GB M.2 SSD
SSD 1 x M.2 2280 M-Key SSD (Expansion Slot) (Optional)
Operating System Windows 11/10 IoT
Security TPM2.0
I/O Ports
  • 3 x USB Type-A (1 x USB3.2, 1 x USB3.0, 1 x USB2.0)
  • 1 x USB Type-C (Support Thunderbolt 4)
  • 1 x Φ3.5mm standard earphone jack
  • 1 x HDMI 2.0a Mini
  • 1 x SIM card
  • 1 x TF card
  • 1 x RJ45 10M/100M/1000M self-adaptive
  • 1 x RJ45 10M/100M/1000M self-adaptive (USB2.0), supports Gigabit Ethernet protocol
  • 1 x RS232
  • 1 x DC19V/3.78A Φ5.5mm power interface
  • 1 x 12PIN Pogo Pin (USB & Charging)
  • 1 x Anti-theft Lock Slot
  • 1 x Right-side Cooling Vent
  • 1 x M.2 E-KEY interface for custom modules.
WiFi Wi-Fi 6
4G/5G 4G (M.2 interface) LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41 ; 5G (Optional)
Bluetooth BT5.1 class 1; Transmission Distance: 10m
GPS Supports single GPS or single glonass, default GPS
Data Collection Fingerprint Module NFC Module

Physical
Material ABS+PC
Camera Front 5.0MP
Speaker 2 x Built in 4Ω/3W
Microphone 1 x Internal MIC
Keyboard US Layout Keyboard with Backlight
Color Black
Dimension (WxHxD) 363.2 x 287.4 x 42.1mm
Weight 2970g
Buttons
  • 1 x Power Button
  • 1 x P Key (one-click screen off/on)
  • 1 x F (toggle switch, enable/disable wireless functions)
  • 1 x Camera Constant white light when active, light off when inactive.
Indicator Light
  • 1 x Power Constant blue light when power on, light off when off.
  • 1 x Battery (Dual-color red/green) Red when charging, green when fully charged, blinking red for low battery, light off during discharge.
  • 1 x Caps Lock Key Red light on indicates caps lock on, off indicates caps lock off.
  • 1 x Airplane Mode Red light on indicates airplane mode on, off indicates airplane mode off.
Battery (Built-in) Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5hrs (Default 50% volume, 200 lumens brightness, playing 1080P HD video)
Battery (Removable) Removable Polymer Lithium-ion Battery, Hot-swappable 4850mah/11.55V (56WH) 8hrs (Playing 1080P HD video, Conditions: System in balance mode, 30% brightness, 320 lumens, 30% volume (70 dB at 10cm), WiFi and Bluetooth turned off.)
Power Adapter DC input 100-240VAC0.5A50/60Hz DC19V/3.78A 71.82W
Standard Accessory 1 x DC19V / 3.78A adapter
Box Dimension 442 x 312.5 x 72 mm
Box Weight TBD

Environment
IP Rating IP65
Drop Test 1.22m drop resistance
Certification CE, UN3803, Optional FCC, CCC, MIL-STD-810H
Operating Temperature -20 °C to 60 °C
Storage Temperature -30 °C to 70 °C
Relative Humidity 95% Non-Condensing
Warranty 2 Years
