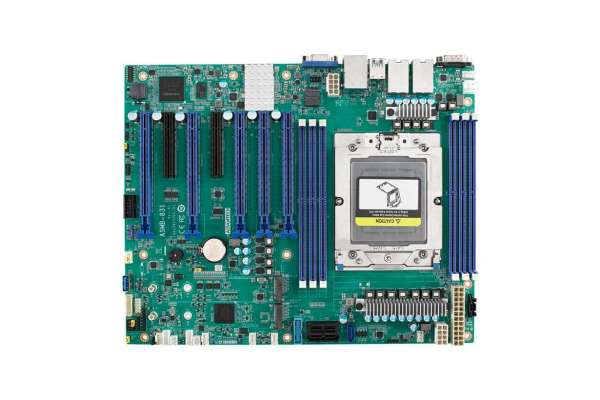

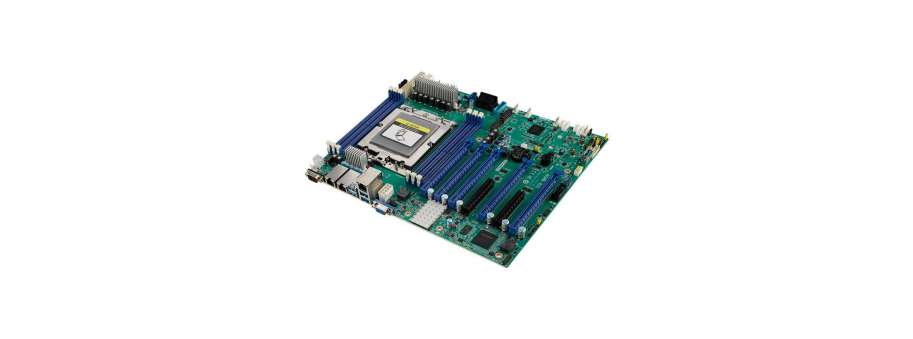

Серверная материнская плата LGA 6096 AMD® EPYC™ 9004 ATX с 6 x DDR5, 5 x PCIe x16 + 2 x PCIe x8, 9 x SATA3, 7 x USB 3.2 (Gen1), Dual 10GbE и IPMI Advantech ASMB-831

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
ASMB-831T2-00A1 SP5 AMD ATX SMB w/9 SATA/5 PCIe x16/2 10GbE/IPMI  68 407,7
  • Серверная плата LGA 6096 (Socket SP5) ATX с процессором AMD® EPYC™ 9004
  • DDR5 4800 МГц RDIMM
  • Пять PCIe x16 (Gen5) и два PCIe x8 (Gen5) для 4 двухъярусных карт
  • Intel® X710-AT2 с двумя портами 10GbE
  • 9 портов SATA3 и 7 портов USB 3.2 (Gen1)
  • 2 M.2 2280/22110 (совместимые с SATA/PCIe)
  • Диапазон рабочих температур окружающей среды 0 ~ 60 °C

Дополнительная информация

Form Factor ATX form factor

Processor System

Socket AMD LGA 6096 (Socket SP5)
CPU type AMD EPYC™ 9004 processors (CPU cooler should be purchased separately)

Memory

Total slots 6x (1 DIMM per channel)
Capacity Maximum 384GB ECC RDIMM
Memory type DDR5 ECC-REG 3600/4000/4400/4800 MHz RDIMM
Memory size 16 GB, 32 GB, 64 GB (RDIMM)

Expansion Slots

Total PCI/PCI-X/PCIe slots 7
Slot location 1 PCIe x16 slot (Gen5 x16 link)
Slot location 2 PCIe x8 slot (Gen5 x8 link)
Slot location 3 PCIe x16 slot (Gen5 x16 link)
Slot location 4 PCIe x8 slot (Gen5 x8 link)
Slot location 5 PCIe x16 slot (Gen5 x16 link)
Slot location 6 PCIe x16 slot (Gen5 x16 link)
Slot location 7 PCIe x16 slot (Gen5 x16 link)

Graphics

VGA ASPEED AST2600

Storage

SATA controller AMD EPYC™ CPU integrated: Eight (via Mini-SAS HD SFF-8643) + one SATA3
SAS controller -

Networking

GbE/10GbE LAN Intel® X710-AT2 (dual 10GbE ports)

Onboard I/O Connector

PSU connector 24-pin SSI power connector + 2 x 8-pin SSI 12V power connector + 1 x 4-pin SSI 12V power connector
USB connector 2 x USB 3.2 Gen1 ports (one onboard header) + 1 x Type-A USB 3.2 Gen1 port
Fan header 6 x 4-pin (5 for system + 1 for CPU)
M.2 1 x M.2 2280/22110 (PCIe Gen4 / SATA) + 1 x M.2 2280/22110 (PCIe Gen4 only)
SMBus 1
Chassis intruder 1
Front LAN LED 1
Audio Header -
PS/2 KB/Mouse header -
Serial port header -

Rear I/O Connector

External serial port 1
External USB port 4 (USB 3.2 Gen1)
VGA port 1
RJ-45 3 (1 port dedicated LAN and 1 port shared LAN for IPMI function)
PS/2 Keyboard/Mouse -
Infiniband -

Management Solution

Software -
Out of band remote management Yes

Monitoring

CPU temperature Yes
System Monitoring Yes

Watchdog Timer

Output System reset
Interval Programmable 1 ~ 255 sec/min

Power Requirement

Power On 3.3V / 5V / 12V / 12V_8P_1 / 12V_4P_1
(210W CPU@2.6GHz DDR5-2666 64G*6) 2.976A / 3.264A / 0.616A / 15.72A /6.876A

Environment

Temperature
  • Operating: 0 ~ 60 °C/32 ~ 140 °F, depends on CPU speed and cooling solution
  • Non-operating:-40 ~ 85 °C/-40 ~ 185 °F
Humidity
  • Operating: 10% ~ 95%
  • Non-operating: 10% ~ 95% (Non condensing)

Physical Characteristics

Dimension (L x H) 304 x 244 mm (12 x 9.6 in)
