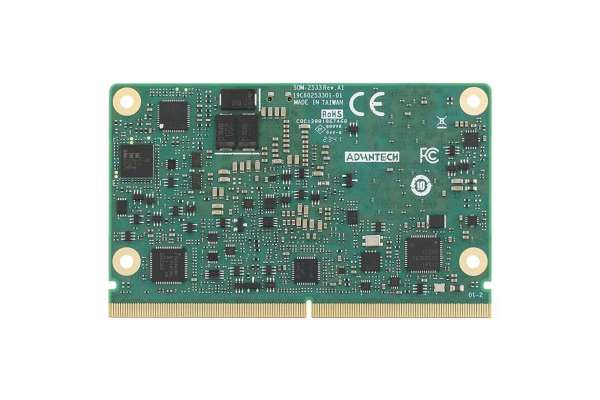

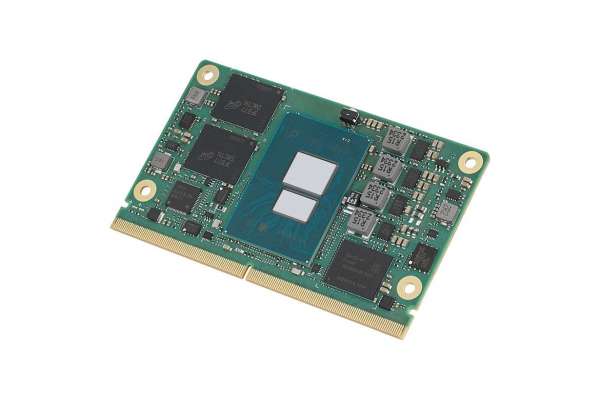

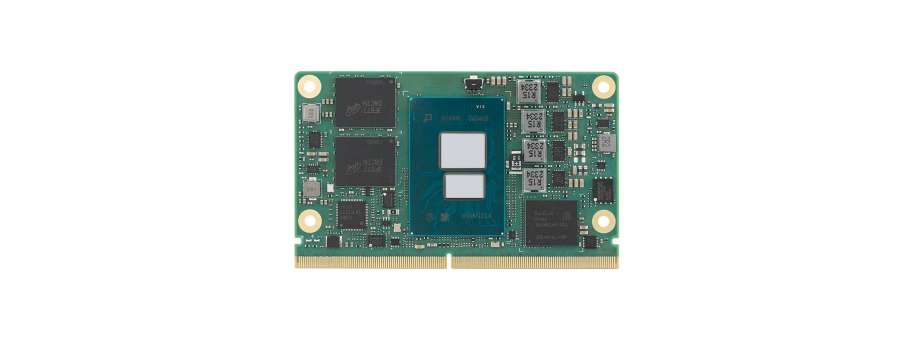

Модуль на процессорах Intel® Core-i®/Pentium®/Celeron® и Atom® x7000 Series (кодовое название: Alder Lake-N/Amston Lake) Advantech SOM-2533/R

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
SOM-2533DNCC-S8A1 SMARC i3-N305 16GLPDDR5 64GEMMC 2*LAN/CAN  44 898,6
SOM-2533CCBC-S5A1 SMARC x7425E 8GLPDDR5 32GEMMC 2*LAN/CAN  25 957,2
SOM-2533CN0C-S8A1 SMARC i3-N305 8GLPDDR5 32GEMMC 2*LAN  40 911,7
SOM-2533BN0C-U0A1 SMARC N97 4GLPDDR5 32GEMMC 2*LAN  23 218,6
SOM-2533BN0C-S0A1 SMARC N200 4GLPDDR5 32GEMMC 2*LAN  28 853,7
SOM-2533AN0C-S0A1 SMARC N50 4GLPDDR5 eDP 32GEMMC 1*LAN  22 192,3
  • Распиновка выводов SMARC2.1.1
  • Процессоры Intel® Core-i®/Pentium®/Celeron® и Atom® серии x7000
  • Одноканальная память LPDDR5 4800MT/s до 16 ГБ, поддержка IBECC
  • Три варианта дисплея с разрешением до 4K2K (DP++, HDMI, LVDS/eDP/MIPI-DSI)
  • Расширение множества входов/выходов: PCIe gen3, USB3.2 Gen2, SATA, CAN-bus
  • Встроенная память eMMC до 64 ГБ (опционально)
  • Поддержка iManager, встроенных программных API и Wise-DeviceOn

Processor System

CPU N50 N97 N200 i3-N305 x7425E x7832RE x7433RE x7211RE
Base Frequency 1.0 GHz 2.0 GHz 1.0 GHz 1.0/1.8 GHz 1.5 GHz 1.3 GHz 1.5 GHz 1.0 GHz
Max Single Core Turbo Frequency 3.4 GHz 3.6 GHz 3.7 GHz 3.8 GHz 3.4 GHz 3.6 GHz 3.4 GHz 3.2 GHz
Cores 2 4 4 8 4 8 4 2
LLC 6 MB 6 MB 6 MB 6 MB 6 MB 6 MB 6 MB 6 MB
CPU TDP 6W 12W 6W 9/15W 12W 12W 9W 6W
IBECC Yes Yes Yes Yes Yes Yes Yes Yes
BIOS AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit

Graphics

EU 16 24 32 32 24 32 32 16
Base. Frequency 600 MHz 850 MHz 450 MHz 1.0 GHz 800 MHz 800 MHz 600 MHz 400 MHz
Max. Frequency 750 MHz 1.2 GHz 750 MHz 1.25 GHz 1.0 GHz 1 GHz 800 MHz 800 MHz

Дополнительная информация

Form Factor

Form Factor SMARC
Pin-out Type SMARC2.1.1

Processor System

BIOS AMI UEFI 256Mbit

Memory

Technology LPDDR5
Speed 4800 MT/s
Max. Capacity Up to 16GB
Channel/Socket Single Channel / Memory down
ECC Support IBECC Supported by Specific CPU SKUs

Graphics

Controller Intel® UHD Graphics
3D/HW Acceleration
  • Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows)
  • Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)

Display

LCD (LVDS/eDP) 1port LVDS Dual Channel: 1920 x 1200 @60Hz/eDP 1920 x 1080 @60Hz (Up to eDP 4096 x 2304 by specific SKU)
DDI (HDMI/DisplayPort)

1 DDI Port Support Configurable HDMI/DisplayPort

-HDMI 2.0b: 4096 x 2034 @ 60Hz

-DisplayPort 1.4: 4096 x 2034 @ 60Hz

HDMI HDMI 2.0b: 4096 x 2034 @ 60Hz
Multiple Display Triple Simultaneous Independent Display

Expansion

PCI Express x1 (Gen3) 3 PCIe x1 by default, 1 PCIe x1 by option; Support Configurable 1 PCIe x4 by option
Audio Interface HD Audio/ Up to 2 I2S
eSPI Yes
Serial Bus
SMBus Yes
I2C Bus Yes

Ethernet

Gigabit 2 Ports support 10M / 100M / 1000M / 2.5G speeds, Support TSN by specific SKU; 1 SERDES reserved by option

I/O

SATA3.0 1 Port (6 Gbps)
USB3.2 (Gen2) 2 Ports (10 Gbps)
USB2.0 6 Ports (480 Mbps)
SPI Bus Yes. For BIOS EEPROM
GPIO 8-bit
Onboard Storage eMMC up to 64GB (Optional)
Watchdog 65536 level, 0 ~ 65535 sec
COM Port 1 Ports (4-Wire), 3 Ports (2-Wire)
TPM fTPM
CAN Bus 2 Ports

Power

Type ATX: Vin, VSB; AT: Vin
Supply Voltage Vin: 4.75-5.25V, RTC Battery: 2.0V ~ 3.3V
Power Consumption (Max.) TBD
Power Consumption (Idle) TBD

Environment

Operating Temperature
  • Standard: 0 ~ 60 °C (32 ~ 140 °F)
  • Extend: -40 ~ 85 °C (-40 ~ 185 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Humidity
  • Operating: 40 °C@95% relative humidity, non-condensing
  • Storage: 60 °C@95%relative humidity, non-condensing
Vibration Resistance 3.5 Grms

Mechanical

Dimensions 84 mm x 50 m
