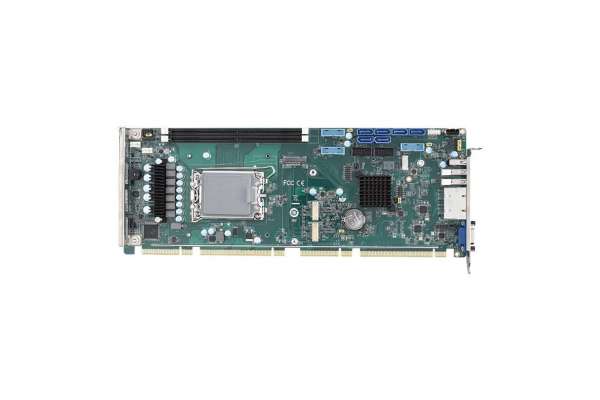

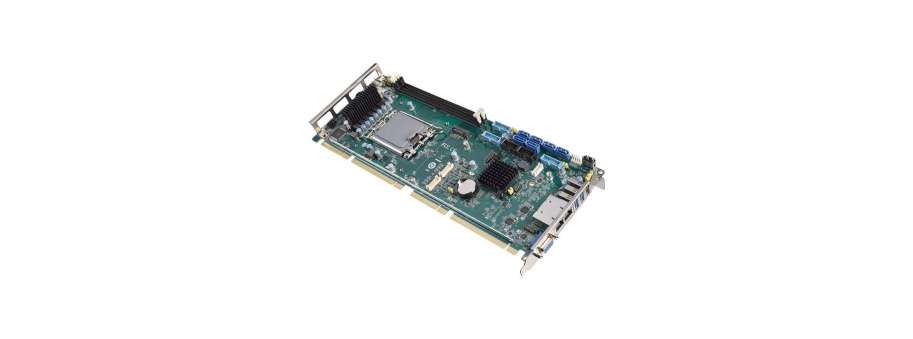

Системная хост-плата Advantech PCE-5133

LGA1700 Системная плата на 12-го поколения Intel® Core™ i9/i7/i5/i3/Pentium® с DDR5, SATA 3.0, USB 3.2, M.2, Dual 2.5GbE и тремя дисплеями Advantech PCE-5133

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
PCE-5133G2-00A1	LGA1700 R680E FSHB DDR5/Core i9/VGA	43 039,4

• Процессор Intel® Core™ i9/i7/i5/i3/Pentium LGA1700 с чипсетом R680E
• До 64 ГБ двухканальной (ECC/ non-ECC) оперативной памяти DDR5 4800 МГц
• PCIe 3.0, M.2, USB 3.2, SATA 3.0, Dual 2.5GbE LAN и SW Raid 0, 1, 5, 10
• Поддержка VGA и 2 x DVI-D/DP/HDMI (с дополнительным кабелем)
• Поддержка внеполосного удаленного управления с помощью AMT
• Поддержка модулей TPM и COM компании Advantech, SUSI 4.0 и встроенных программных API.

Примечание: Устаревшие платформы не поддерживаются.

CPU

i9- 12900(E)

i9- 12900TE

i7- 12700(E)

i7- 12700TE

i5- 12500(E)

i5- 12500TE

i3- 12100(E)

i3- 12100TE

Pentium G7400E

Pentium G7400TE

Celeron G6900E

Celeron G6900TE

P-core Base Frequency

2.3GHz

1.1GHz

2.1GHz

1.4GHz

2.9GHz

1.9GHz

3.2GHz

2.1GHz

3.6GHz

3.0GHz

3.0GHz

2.4GHz

L3 Cache

30MB

30MB

25MB

25MB

18MB

18MB

12MB

12MB

6MB

6MB

4MB

4MB

Cores

16

16

12

12

6

6

4

4

2

2

2

2

Processor Base Power

65W

35W

65W

35W

65W

35W

65W

35W

46W

35W

46W

35W

Дополнительная информация

Processor System
Socket	LGA 1700
Chipset	R680E
BIOS	AMI 256MB SPI Flash
Bus
PCI-Express	1 x PCIe x16/2 x PCIe x8 and 1 x PCIe x4 to backplane
PCI	4 x PCI master to backplane, 32-bit, 33 MHz
Memory
Technology	Dual-channel (ECC/non-ECC) U-DIMM DDR5 4800 MHz
Max. Capacity	Up to 64GB (based on CPU)
Socket	2 x DDR5 288-pin DIMM
Graphics
Controller	Chipset integrated with Intel® UHD Graphics
VRAM	Shared system memory is subject to OS
VGA	Supports resolutions of up to 2048 x 1152 pixel @ 60 MHz
DVI-D	Supports resolutions of up to 1920x 1200 @ 60 MHz
Display Port	Supports resolutions of up to 4096 x 2160 @ 60 MHz
HDMI	Supports resolutions of up to 1920 x 1080 @ 60MHz
Triple Display	1st: VGA, 2nd DP/DVI-D/HDMI, 3rd DP/DVI-D/HDMI (2nd and 3rd display via optional cable)
Ethernet
Interface	10/100/1000/2500 Mbps
Controller	LAN 1: Intel® i225LM LAN 2: Intel® i225LM
Connector with LED	2 x RJ45
Rear I/O
USB 3.2 Gen2	2
USB2.0	1
Ethernet	2
VGA	1
Internal Connector
USB	5 x USB 2.0 ( 1 USB Type A + 4 to backplane), 6 x USB 3.2
SATA (SW Raid 0,1,5,10)	6
M.2 (2280 Type M)	1 (PCIe x4)
DP/DVI-D/HDMI	2 (Pin header)
COM	2 x RS232
GPIO	8bit
Watchdog Timer
Output	System reset
Interval	Programmable 1-255 sec
Miscellaneous
Audio	Intel® High Definition audio interface (requires audio extension module PCA-AUDIO-HDB1E)
Power Requirement
Test Environment	Intel i9-12900E, Memory *2 DDR5 16GB
Voltage	+3.3V, +5V, +12V
Current	2.52A, 4.13A, 6.86A
Environment
Temperature	Operating: 0 ~ 60 °C (dependent on CPU and cooler solution) Non-Operating: 40 ~ 85 °C
Humidity	Operating: 40 °C @ 85% relative humidity (non-condensing) Non-Operating: 60 °C @ 95% relative humidity (non-condensing)
Physica
Dimensions (L x H)	338 x 122 mm (13.3" x 4.8")
