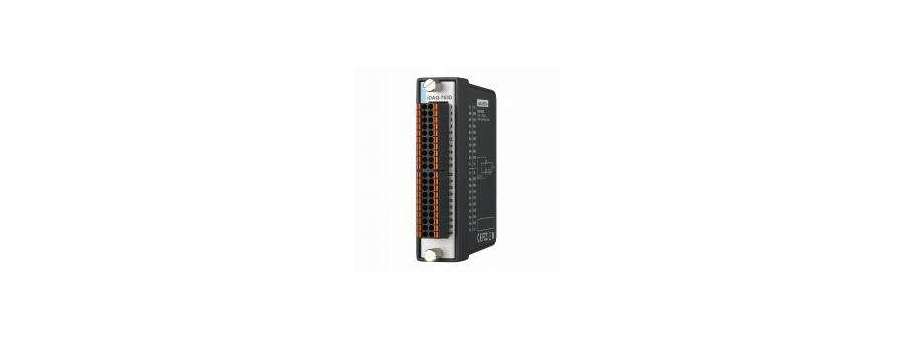

16-канальный модуль вывода SSR iDAQ Advantech iDAQ-763D

Дополнительная информация

Solid State Relay (SSR) Output

Channels 16
Load voltage 60 VDC max
Load current 1.3 A max.@ 25 °C / 0.7 A max.@ 60 °C per channel
Peak load current 4 A (100 ms, 1 pulse)
Output impedance 0.13 Ω typ./0.5 Ω max
OFF-state leakage current 1 μA max.
Response time
  • Turn-on time 1.0 ms typ./1.3 ms max.
  • Turn-off time 0.6 ms typ./0.8 ms max.
Isolation protection 600 VRMS
Power-on output state OFF state
Acquisition type Static or buffered, software configurable
Buffered output Update rate 500 Hz max., software configurable Internal data buffer (FIFO) size 512 samples, each sample contains state of all channels

General

Power consumption from chassis 225 mW typ./ 800 mW max
Dimensions 100 x 80 x 25 mm (3.94 x 3.15 x 0.98 in.)
Operating temperature -20 °C to 60 °C
Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
Operating humidity 10% to 90% RH, non-condensing
Storage humidity 5% to 95% RH, non-condensing
Vibration 5Grms
Shock 30G
Certification
  • EMC: CE, FCC
  • Safety: CB, UL
