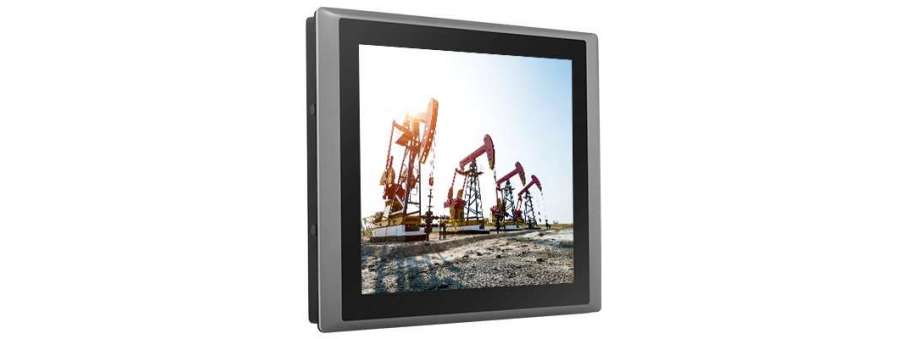

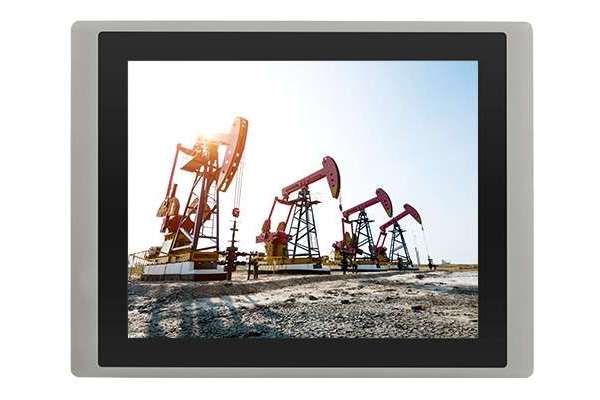

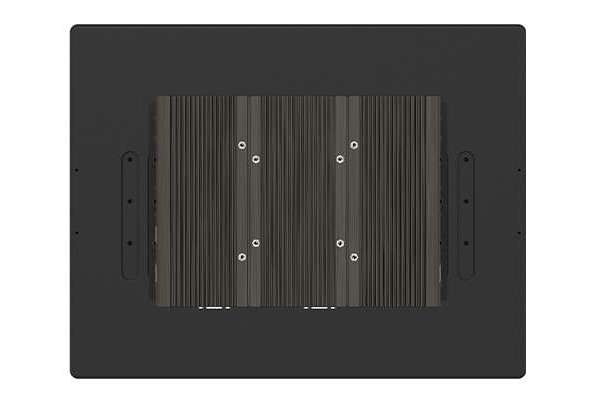

Модульный и расширяемый панельный ПК с TFT-LCD дисплеем и процессором Intel Meteor Lake-PS Core Series (разъем LGA) Cincoze CS-117/P2302

Производитель: Cincoze
Facebook Twitter Linkedin Mail

Серия CS-117/P2302 — это высокопроизводительные панельные ПК, обеспечивающие читаемость на солнце и сверхвысокую яркость до 1800 нит. Они оснащены процессорами Intel® Core™ Ultra U-серии (Meteor Lake-PS), что позволяет выбирать из множества размеров экрана, соотношений сторон и уровней яркости. Широкий набор портов ввода/вывода, гибкие возможности расширения, прочность, простота обслуживания на месте и другие характеристики делают серию CS-117/P2302 лучшим выбором для наружных киосков или HMI-приложений.

  • 17" TFT-LCD дисплей с проекционным емкостным сенсорным экраном
  • Процессор Intel® Meteor Lake-PS Core™ Ultra 7/5/3
  • 2 разъема DDR5 SO-DIMM, поддержка памяти до 5600 МГц, 96 ГБ памяти
  • Сверхвысокая яркость до 1500 нит
  • Четыре независимых входа дисплея (CDS / HDMI / DP / VGA)
  • 1 разъем M.2 Key E Type 2230 для расширения беспроводного/Bluetooth модуля
  • 1 разъем M.2 Key B Type 3052/3042 для расширения 5G/GNSS/хранилища/дополнительных карт
  • 1 разъем M.2 Key B Type 3042 для расширения хранилища/дополнительных карт
  • Конструкция с литой алюминиевой передней панелью
  • Соответствие стандарту IP65

Дополнительная информация

Display
LCD Size 17" (5:4)
Max. Resolution 1280 x 1024 (SXGA)
Brightness (cd/m2) 1500
Contrast Ratio 800 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 160 / 140
Backlight LED Life Time 50,000 hrs (LED Backlight)

Touch Screen
Touch Type Projected Capacitive
Wet Touch Tracking v

Physical
Dimension ( W x D x H ) 450 x 350 x 63.2mm
Weight Information 5.64 kg
Mechanical Construction Flat Rugged Aluminum Die-casting Bezel

Power
Power Consumption 30.65W (Typ.)

Environment
Front Panel Protection IP 65 Compliant
Operating Temperature -20°C to 70°C (-4°F to 158°F) (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature -30°C to 80°C (-22°F to 176°F)
Relative Humidity 90% RH @ 40°C (Non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

System
Processor
Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W
- Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W
- Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W
Memory 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB
BIOS AMI BIOS

Graphics
Graphics Engine Intel® Graphics
Maximum Display Output Supports Quad Independent Display
CDS 1x CDS Connector (1920 x 1080 @60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
VGA 1x VGA Connector (1920 x 1080 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN
2x 2.5GbE LAN, RJ45
- GbE1: Intel® I225
- GbE2: Intel® I225
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 2 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 3.2 Gen1x1 (5Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
DIO 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage / Expansion
2.5” SSD/HDD 2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 Key E Socket 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion
M.2 Key B Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/GNSS/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 3042 (PCIe Gen 3x2 / USB2.0), Support Storage/Add-on Card Expansion
PCI Express
  • 1x PCI or 1x PCIe Gen3 x4 Expansion slot (with Optional Riser Card)
  • Supports maximum dimensions of add-on card (H x L) : 111 x 169mm (for P2302E)
SIM Socket 1 x Front Accessible SIM Socket
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion

Other Function
RAID RAID 0/1
Clear CMOS Switch 1x Clear CMOS Switch
Reset Button 1x Reset Button
Watchdog Timer Software Programmable Supports 256 Levels System Reset
OSD Button LCD On/Off, Brightness Up, Brightness Down
Internal Speaker AMP 2W + 2W
Status LED Indicator Power LED, Storage LED
Antenna Holes 6x Antenna Holes

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption
Intel Core™ Ultra 7 Processor 165UL: 79.7W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing
Inrush Current (Peak) Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu Desktop 24.04 LTS

Physical
Dimension( W x D x H )
  • 254.5 x 190 x 49.5 mm (for P2302)
  • 254.5 x 190 x 69 mm (for P2302E)
Weight Information
2.16 kg (for P2302)
2.26 kg (for P2302E)
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Reliability & Protection
Reverse Power Input Protection Yes
Over Voltage Protection
  • Protection Range: 51~58V
  • Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF 206,043 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3

Environment
Operating Temperature
-40°C to 65°C (-40°F to 149°F)
* PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 95%RH @ 65°C (non-Condensing)
Shock
  • Operating, 50 Grms (w/SSD, according to IEC60068-2-27)
  • MIL-STD-810H
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-6)
  • MIL-STD-810H
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment
EMC
- EN/BS/IEC 61000-6-4: 2019 Class A
- EN/BS/IEC 61000-6-2: 201
Safety UL, cUL, CB, IEC, EN 62368-1
