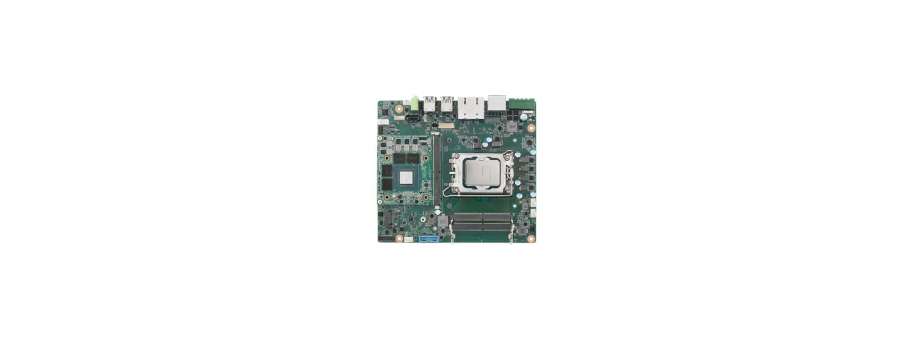

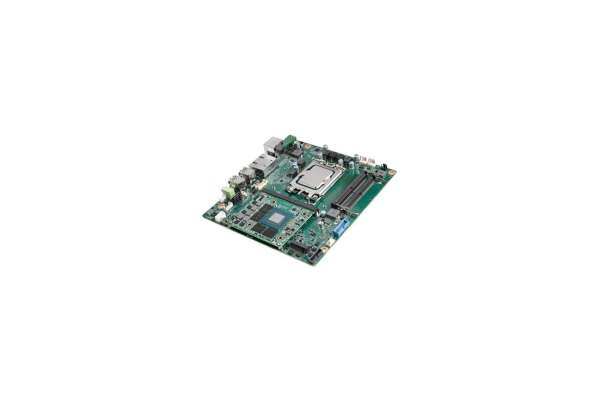

Материнская плата 1U Advantech AIMB-288E

Тонкая материнская плата с искусственным интеллектом на Intel® Core™ (Alder Lake) 12/13/14 пок., интеграция графического модуля MXM Advantech AIMB-288E

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
AIMB-288EH-00A1	Промислова материнська плата Advantech AIMB-288EH ADL-S LGA1700 H610E w/ Nvidia T1000/2 GbE/2DP	80 225,7
AIMB-288EH-01A1	Промислова материнська плата Advantech AIMB-288EH-01A1 ADL-S LGA1700 H610E w/ Nvidia A500/2 GbE/2DP	76 798,7
AIMB-288EH-02A1	Промислова материнська плата Advantech AIMB-288EH-02A1 ADL-S LGA1700 H610E w/ Nvidia A2000/2 GbE/2DP	124 780,0
AIMB-288EH-03A1	Промислова материнська плата Advantech AIMB-288EH-03A1 ADL-S LGA1700 H610E w/ VEGA-X110/2 GbE/2DP	59 662,6

• Процессоры Intel® Core™ 12-го поколения, макс. 16 ядер, поддержка чипсета H610E
• Интегрированная графика, NVIDIA RTX/Quadro или Intel Arc™
• До 64 ГБ DDR5 4800MT/s с двумя модулями SO-DIMM
• Три дисплея с 2 DP и 1 eDP, до 4K
• Широкие возможности расширения: 1 M.2 M-key и 1 M.2 B-key, 6 USB 3.2 Gen1x1, 1 SATA III
• Квалифицирован для Edge AI SRP WISE-DeviceOn и API для встраиваемого ПО

Processor System
CPU	i9-12900E/i9-12900TE	i7-12700E/i7-12700TE	i5-12500E/i5-12500TE	i3-12100E/i3-12100TE	G7400E/G7400TE
Core Number	16/16	12/12	6/6	4/4	2/2
Max Speed	5.0GHz/ 4.8GHz	4.8GHz/ 4.7GHz	4.5GHz/ 4.3GHz	4.2GHz/ 4.0GHz	3.6GHz/ 3.0GHz
SmartCache	30MB/30MB	25MB/25MB	18MB/18MB	12MB/12MB	2.5MB/2.5MB
TDP	65W/35W	65W/35W	65W/35W	65W/35W	46W/35W
Graphics
GPU	Intel Arc A370M	Quadro® T1000	Quadro® A500	Quadro® A2000
Cores	8 Xe-cores	896 CUDA® cores	2048 CUDA® cores	2560 CUDA® cores
FP32 Performance (TFLOPS)	4.198	2.6	6.54	8.25
Memory	GDDR6 4 GB	GDDR6 4GB	GDDR6 4GB	GDDR6 8GB

Дополнительная информация

Processor System
Chipset	H610E
BIOS	AMI EFI 256 Mbit SPI
Expansion Slot
M.2	1, M-key for storage (Type: 2280; NVMe supported) 1, B-key for storage (Type: 2242)
Memory
Technology	2, Dual Channel DDR5 4800 MT/s SO-DIMM
Max. Capacity	64GB (up to 32GB per SO-DIMM)
Socket	2, 262 PIN DDR5 SO-DIMM (Non-ECC)
Display (From Intel® UHD Graphics)
DP	2 Ports DP++, DP1.4a, up to 4096 x 2304 @ 60 Hz
eDP	1 Port, up to 3840 x 2160 @ 60 Hz
Triple Display	DP+DP+eDP
Ethernet
Controller	LAN1: 1 GbE Intel I219-LM LAN2: 1 GbE Intel I226V
Connector	RJ45 x 2
Audio
Codec	Realtek ALC888S, High Definition Audio (HD), Line-Out (default)
Amplifier	Yes (Option, 3.2W)
SATA
Max Data Transfer Rate	6.0 Gb/s
Channel	1 (SATA III)
Rear I/O
Display Port	2
Ethernet	2
USB	4 USB 3.2 Gen1x1
Audio	1 (Line out by default, (Line in/Line out/Mic in programable)
Power Connector	1 Terminal block (4P, Phoenix Contact)
Internal Connector
USB	2, USB 3.2 Gen1x1
eDP	1
Serial	2, (RS-232/422/485 with auto flow control)
SATA	1
M.2	1 x M-key (2280, for NVMe Storage) 1 x B-key (2242, for LTE wireless connectivity)
SATA Power Connector	1
Watchdog Timer
Output	System reset
Interval	Programmable 1 ~ 255 (second or minute)
Power Requirements
Input voltage	19-24V DC-in
Connector	Connector
Environment
Temperature	Operating: 0 ~ 60° C (32 ~ 140° F), depends on STD or THIN GPU cooler Non-Operating: -40 ~ 85° C (-40 ~ 185° F)
Physical Characteristics
Dimensions	170 mm x 190 mm (6.69" x 7.48")
