Производитель: PLANET Technology Corp.
In the last few years, PLANET has launched various IP67 protected Industrial products which can be deployed and provide stable Ethernet performance under difficult industrial environments. To further meet some specific industrial environments, PLANET has released a new series of industrial solutions, the ISW-804PT-M12, to provide higher level protection ability with the following features:
• Industrial Protected IP67 Metal Case
• Robust M12 Ethernet Connector
• Waterproof / Dustproof
• IEEE 802.3af PoE
• Wide Temperature Support
Industrial IP67 Metal Case and Robust M12 PoE Ethernet Connector Interface

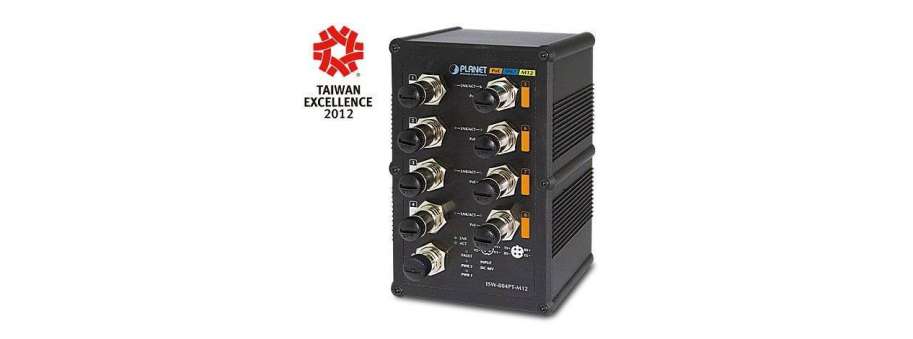

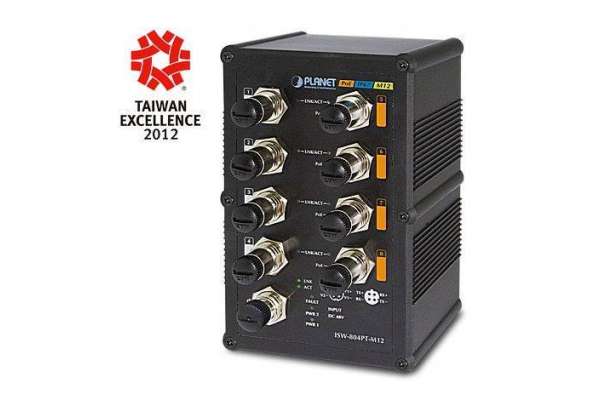

The ISW-804PT-M12, the Industrial 8-Port 10/100Mbps M12 PoE Fast Ethernet Switch, is designed with the IP67 industrial case, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The compact, IP67 standard metal case of the ISW-804PT-M12 allows either DIN rail or wall mounting installation for efficient use of cabinet space.
The ISW-804PT-M12 is equipped with 8-port 10/100Base-TX auto-negotiation M12 connector with 4-port IEEE 802.3af PoE (Port 5 to port 8); each PoE port provides 15.4-watt PoE output. The M12 connector provides tight and strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment.
Suitable for Industrial Environment

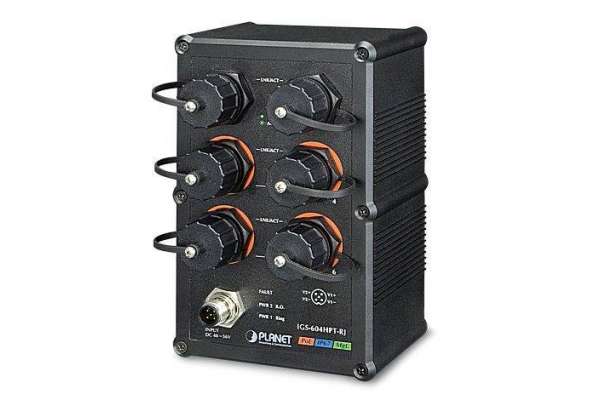

PLANET IGS-604HPT-RJ, an Industrial Managed Ethernet Switch, comes with an IP67-rated industrial case, 4-port 10/100/1000T 802.3at PoE, 2-port 10/100/1000T, and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-604HPT-RJ can be easily mounted on a DIN rail or wall taking up less space. Each of the four Gigabit PoE+ ports provides 36-watt of power, which means a total power budget of up to144 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It also provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
Waterproof and Dustproof RJ45 Ethernet Connector and Shielded Plug
The IGS-604HPT-RJ is equipped with a 6-port 10/100/1000BASE-T auto-negotiation waterproof and dustproof RJ45 connector with 4-port IEEE 802.3at PoE+ (Port 3 to port 6); each PoE port provides 36-watt PoE output. These shielded RJ45 plugs can make the general UTP cable waterproof and dustproof. When connected to the waterproof and dustproof RJ45 connector, it provides tight and strong connection, and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.
Environmentally Hardened Design
The IGS-604HPT-RJ is able to protect itself from dust and water ingress, and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.
