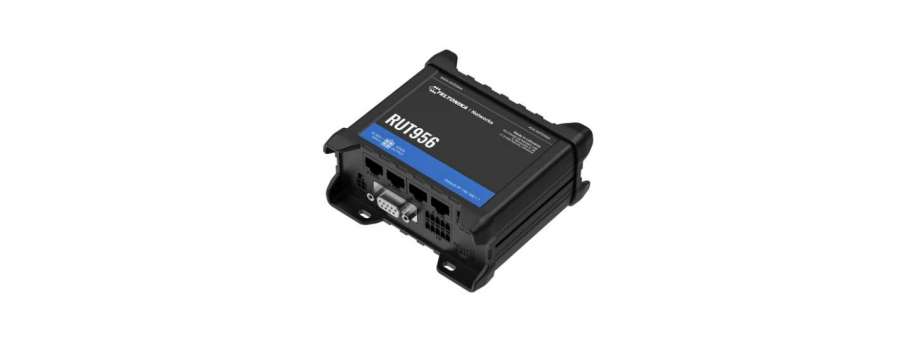

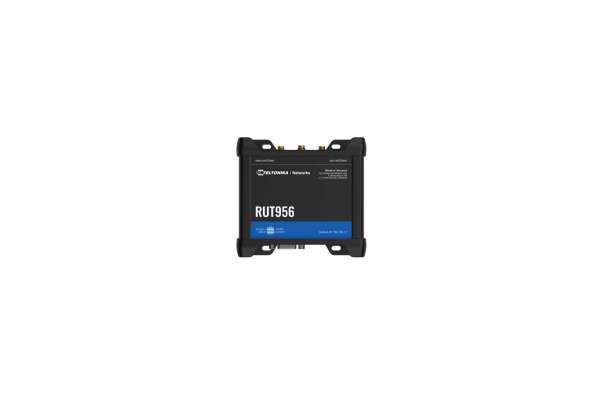

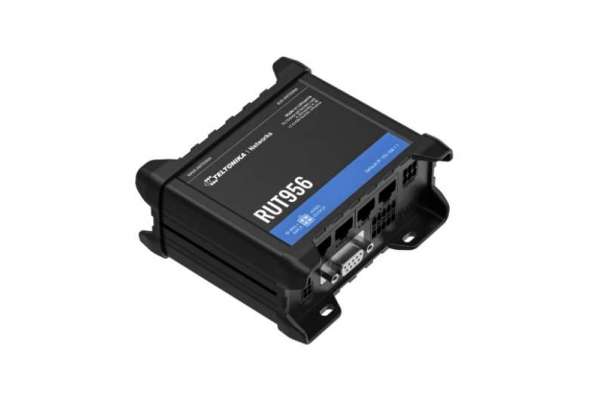

Промышленный сотовый маршрутизатор 4G (LTE) с Ethernet, последовательным интерфейсом (RS232, RS485) и несколькими входами/выходами Teltonika RUT956

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
RUT956100000 Teltonika RUT956 (Mediatek) - LTE маршрутизатор на 2 SIM, із Wi-Fi та 4 портами Ethernet, RS232, RS485, I/O, GPS, в комплекті антени із кабелем та блок живлення.  12 795,6 Доступно
RUT956200000 Teltonika RUT956 (Mediatek) - LTE маршрутизатор на 2 SIM, із Wi-Fi та 4 портами Ethernet, RS232, RS485, I/O, GPS, в комплекті антени із кабелем та блок живлення.  12 924,9 Доступно

RUT956 - это промышленный маршрутизатор, сочетающий в себе возможности сотовой, Wi-Fi и проводной связи с автоматическим отказоустойчивым WAN и возможностями GNSS. Последовательные интерфейсы связи позволяют интегрировать в экосистему решения более разнообразные устройства, а средства ввода/вывода и расширенное программное обеспечение RutOS облегчают управление оборудованием, автоматизацию и оповещение о событиях.

Дополнительная информация

Wireless
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi users Up to 100 simultaneous connections

Ethernet

WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall ort forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol

System characteristics

CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

Serial

RS232 DB9 connector, RS232 (with RTS, CTS flow control)
RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB

Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / output

Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

Power

Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption < 2 W idle, < 7 W Max

Physical interfaces

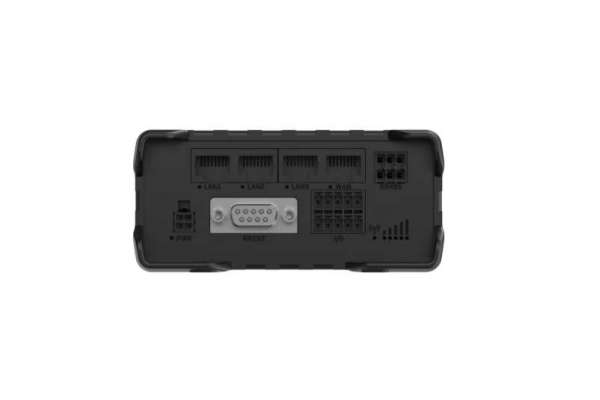

Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power 1 x 4-pin power connector
Input/output 1 x 10-pin industrial socket for inputs/outputs

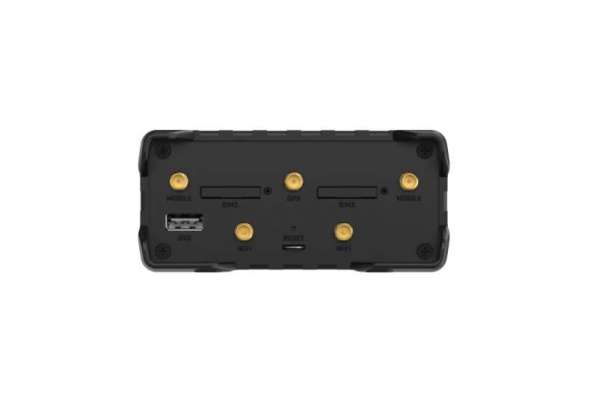

Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

Physical specification

Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 110 x 50 x 100 mm
Weight 287 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement

Operating environment

Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
