Рабочая станция ECS-9600 GTX950

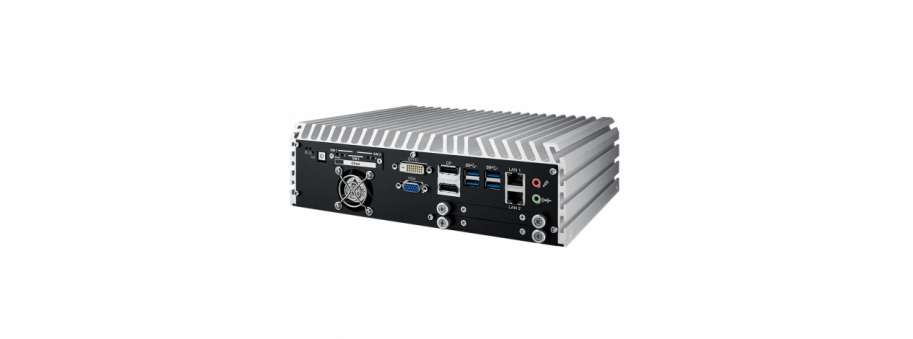

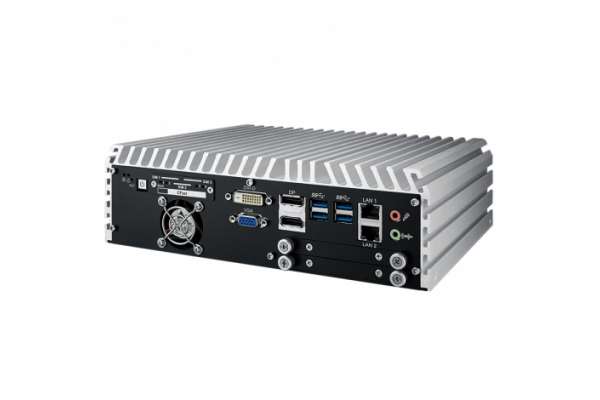

Промышленная графическая станция Vecow ECS-9600 на Intel® Xeon/Core i7 с видеоадаптером Nvidia GeForce® GTX950 на 6 дисплеев

Промышленные компьютеры >> Встраиваемые компьютеры для визуализации

 Цены и наличие

Производитель: Vecow

Powered by Intel® Xeon®/ Core™ i7 (Skylake-H) processor running with NVIDIA GeForce® GTX 950 graphics engine, supporting advanced CUDA applications & up to 7 independent HD displays, -40°C to 60°C operating temperature, all-in-one integrated features, multiple I/O connection, outstanding system performance, excellent mobile availability, smart manageability, wide range power input, surge protection, ignition power control, isolated DIO, EN50155 and industrial-grade reliability, Vecow ECS-9700/9600 GTX950 Series Embedded Workstation System is your great solution for Machine Vision, Embedded Workstation, Vehicle Computing, Health Care, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0 embedded applications.

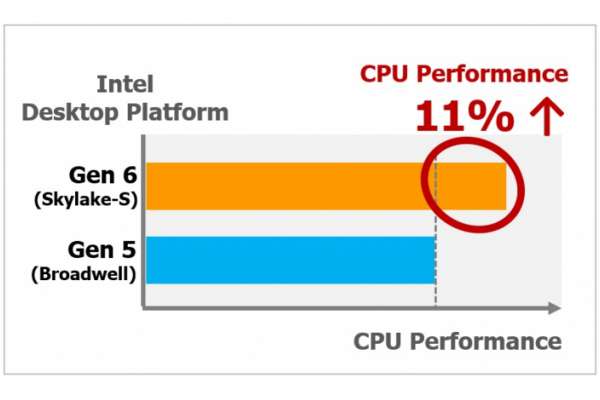

  • Quad Core 6th Generation Intel® Xeon®/ Core™ i7 Processor (Skylake-H) with CM236 Chipset supports up to 6 independent 4K displays
  • Advanced NVIDIA GeForce® GTX 950 Graphics engine supports NVIDIA Pascal™ GPU architecture
  • Multiple VGA, DVI-D, DVI-I, DisplayPort and HDMI display interfaces, up to 7 independent HD displays
  • 2 DDR4 2133MHz Memory, up to 32GB (ECC/ Non-ECC)
  • 2 Independent GigE LAN, iAMT 11.0 supported
  • 4 SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
  • -40°C to 60°C Operating Temperature

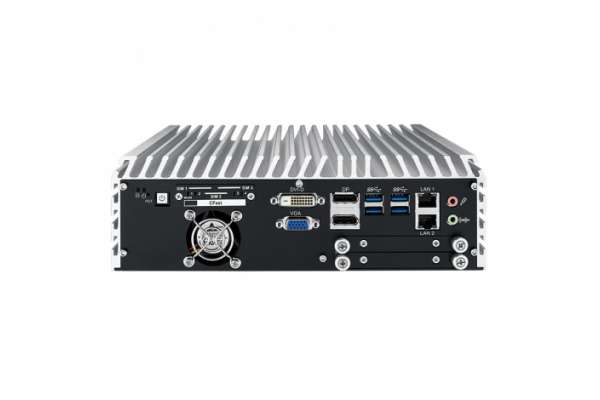

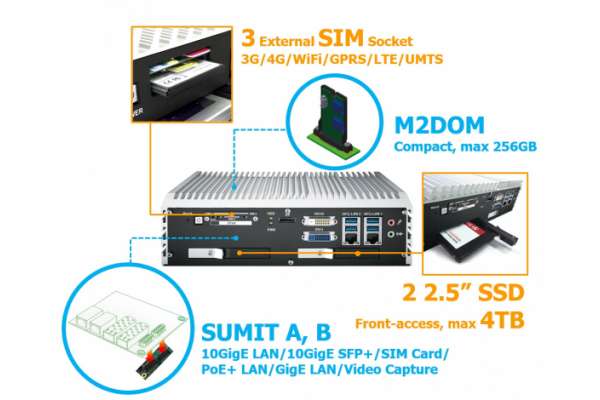

  • Front-access : 2 2.5" SSD Tray, 3 SIM, 1 CFast
  • 6 External USB 3.0, 4 COM

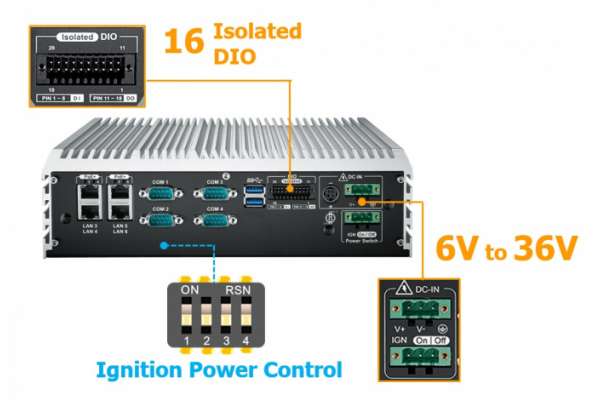

  • 16 Isolated DIO, 4 Mini PCIe/ mSATA
  • 10V to 36V DC power input with 80V Surge Protection
  • Configurable Ignition Power Control
  • Optional supports full function SUMIT A, B

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
ECS-9600-505M-GTX950 Промисловий компактний комп'ютер Vecow ECS-9600-505M-GTX950 (ECS-9600, Quad Core Intel® Xeon® E3-1505M v5, NVIDIA GeForce® GTX 950, 2 GigE LAN, 2 SSD Tray, 6 USB 3.0, 4 COM, 4 SIM, 16 Isolated DIO (ECC supported))  80 914,7
ECS-9600-820Q-GTX950 Промисловий компактний комп'ютер Vecow ECS-9600-820Q-GTX950 (ECS-9600, Quad Core Intel® Core™ i7-6820EQ, NVIDIA GeForce® GTX 950, 2 GigE LAN, 2 SSD Tray, 6 USB 3.0, 4 COM, 4 SIM, 16 Isolated DIO)  76 930,2

Дополнительная информация

System
Processor

Intel® Xeon® E3-1505M v5/ Core™ i7-6820EQ Processor (Skylake-H)
Chipset Intel® CM236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/ Non-ECC)
I/O Interface
Serial  4 COM RS-232/ 422/ 485 (ESD 8KV)
USB

- 6 USB 3.0 (External)

- 1 USB 2.0 (Internal)
Isolated DIO

16 Isolated DIO : 8 DI, 8 DO
LED Power, HDD, PoE, Wireless
SIM Card  4 SIM Card Socket (3 External, 1 Internal)
Expansion
Mini PCIe

4 Mini PCIe Socket :

- 3 Full-size for PCIe/ USB/ External SIM Card/ mSATA

- 1 Full-size for PCIe/ Internal SIM Card/ mSATA
SUMIT A, B 2 SUMIT Slot (Optional)
Graphics
Graphics Processor

- Intel® HD Graphics P530/ 530

- NVIDIA GeForce® GTX 950
Interface

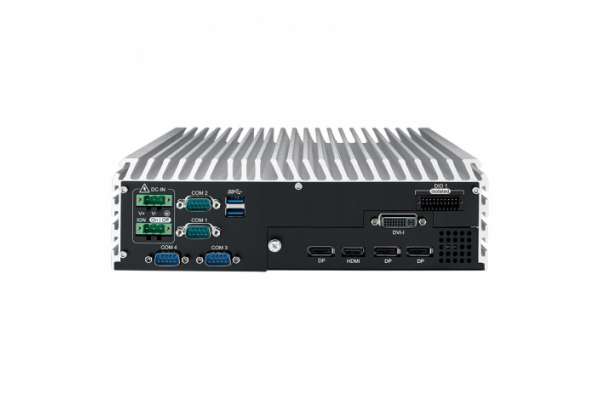

9 Display interfaces :

- 1 VGA : Up to 1920 x 1200 @ 60Hz

- 1 DVI-D : Up to 1920 x1200 @ 60Hz

- 1 DVI-I : Up to 1920 x 1200 @ 60Hz

- 2 DisplayPort : Up to 4096 x 2304 @ 60Hz

- 3 DisplayPort : Up to 5120 x 3200 @ 60Hz

- 1 HDMI : Up to 5120 x 3200 @ 60Hz
Storage
SATA 4 SATA III support S/W RAID 0, 1, 5, 10 :

- 3 SATA III (6Gbps)

- 1 SATA III co-lay with Mini PCIe (6Gbps)
mSATA

4 mSATA connection :

- 3 SATA III (Mini PCIe Type, 6Gbps)

- 1 SATA III co-lay with SATA (Mini PCIe Type, 6Gbps)
Storage Device

- 1 CFast Socket, Push-in/ Push-out Ejector

- 2 Front-access 2.5" SSD/ HDD Tray
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219 Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input 10V to 36V, DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control 16 Mode (Internal)
Remote Switch 3-pin Terminal Block
Surge Protection Up to 80V/1ms Transient Power
Others
TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS Windows 10, Windows 8.1, Windows 7, Linux
Mechanical
Dimension (W x L x H) 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight 4.5 kg (9.92 lb)
Mounting

- Wallmount by mounting bracket

- 2U Rackmount (Optional)
Environment
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 60°C
Shock

- IEC 60068-2-27

- SSD : 50G @ wallmount, Half-sine, 11ms
Vibration

- IEC 60068-2-64

- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN 50155, EN 50121-3-2
