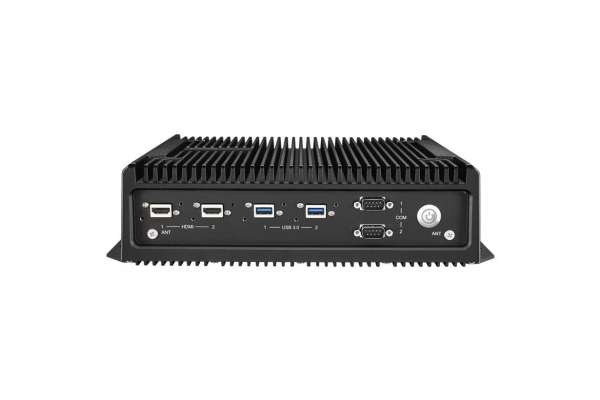

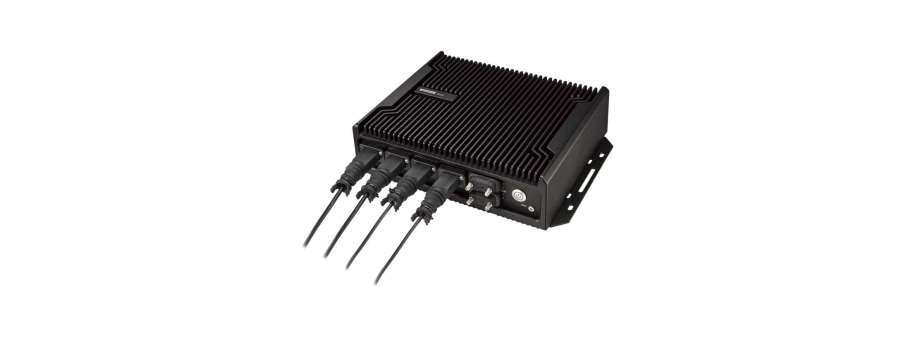

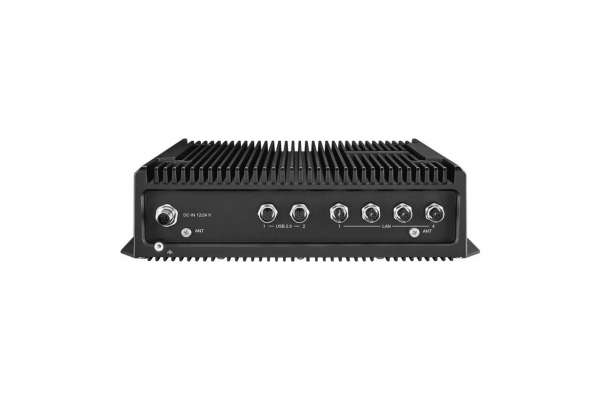

Корпусный безвентиляторный ПК IP65 с процессором Intel® Core™ 11-го поколения для наружного транспорта Advantech TS-207

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
TS-207-V2DNA1 Промисловий комп'ютер TS-207-V2DNA1 Intel Celeron 6305E IP65 In-Vehicle 12/24V  123 125,0
TS-207-V5DAA1 Промисловий компактний комп'ютер для транспорту TS-207-V5DAA1 Intel i5-1145GRE IP65 In-Vehicle 12/24V  177 314,0
  • Процессоры Intel® Core™ серии U 11-го поколения
  • Усовершенствованное видеонаблюдение с ускорителем ИИ
  • Безвентиляторный режим работы при температуре от -40 до 70°C
  • Поддержка 4 портов Gigabit Ethernet или опций PoE*
  • Корпуса IP65 для требовательных приложений AIoT
  • Интеллектуальное управление зажиганием автомобиля
  • Сертификация E-Mark(13), EN50155 и MIL-STD810H
  • Удаленное управление Advantech WISE-DeviceOn

Дополнительная информация

TS-207-V5DAA1 TS-207-V2DNA1

Processor System

CPU Intel i5-1145GRE Intel Celeron 6305E
Frequency 1.5/ 4.1 GHz (Max Trubo) 1.8 GHz
L3 Cache 8 MB 4 MB
BIOS AMI EFI 128 Mbit AMI EFI 128 Mbit

Memory

Technology DDR4 Dual-channel memory, Up to 3200MT/S DDR4 Dual-channel memory, Up to 3200MT/S
Onboard memory 8GB None
SODIMM Memory 1x SO-DIMM socket (up to 32GB) 1x DDR4-3200 8GB DRAM

Graphics

Controller Intel® Iris® Xe Graphics 1.30 GHz Intel® Iris® Xe Graphics 1.25 GHz
HW Acceleration HW Encode: Supports AVC, MPEG-2, HEVC, and VP9. HW Decode: Supports Direct3D* 9 Video API (DXVA2),Direct3D12 Video API,Intel Media SDK,MFT (Media Foundation Transform) filters,Intel VA API HW Encode: Supports AVC, MPEG-2, HEVC, and VP9. HW Decode: Supports Direct3D* 9 Video API (DXVA2),Direct3D12 Video API,Intel Media SDK,MFT (Media Foundation Transform) filters,Intel VA API
HDMI 2x HDMI 2.0b with 4Kx2K support at 48-60Hz/24bpp 2x HDMI 2.0b with 4Kx2K support at 48-60Hz/24bpp

Audio

Main System 1x Pin header, Line-in, Line out, Mic-in (support by project) 1x Pin header, Line-in, Line out, Mic-in (support by project)

Ethernet

LAN (PoE) 4x M12 circular connectors with 10/100/1000 Mbps speed (IEEE802.3af PoE options with maximum power output of 60W. Support by project) 4x M12 circular connectors with 10/100/1000 Mbps speed (IEEE802.3af PoE options with maximum power output of 60W. Support by project)

I/O Interface

Serial Ports 2x DB-9 RS-232/422/485 with auto flow control 2x DB-9 RS-232/422/485 with auto flow control
USB Interface
  • 2x USB type-A 3.0 & 2.0
  • 2x M12 circular with USB 2.0 support
  • 2x USB type-A 3.0 & 2.0
  • 2x M12 circular with USB 2.0 support

Other

Watchdog timer 255-level timer interval, setup by software 255-level timer interval, setup by software
TPM TPM2.0 TPM2.0

Expansion

mPCIe (MINIPCIE2) 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0) 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0)
mPCIe/mSATA (MINIPCIE1) 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0 & SATA) 1x Full size mini PCIe slot (with PCIe Gen 1/USB 3.0, USB 2.0 & SATA)
M.2 1x M.2 2230 E key (with PCIe Gen 1, USB 2.0) 1x M.2 2230 E key (with PCIe Gen 1, USB 2.0)

Storage

mSATA 1x MSATA (leverage mSATA/mPCIe slot) 1x MSATA (leverage mSATA/mPCIe slot)
SATA 1x SATA-III (mounting kits, option) 1x SATA-III (mounting kits, option)
Onboard NVMe SSD Up to 32GB (support by project) Up to 32GB (support by project)

Software Support

Microsoft Windows Windows 10 Windows 10
Linux Ubuntu 20.04 LTS Ubuntu 20.04 LTS

Power Requirement

Power Input Voltage
  • In-Vehicle: +12/24VDC
  • Railway: +24VDC
  • In-Vehicle: +12/24VDC
  • Railway: +24VDC
Vehicle Power Ignition Selectable boot-up & shut-down voltage, on/off delay time Selectable boot-up & shut-down voltage, on/off delay time
Power Consumption
  • Maximum load 52.82W with used +12VDC
  • Idle mode (S0) 26.1W with used +12VDC
  • Maximum load 52.82W with used +12VDC
  • Idle mode (S0) 26.1W with used +12VDC
Isolation 1.5 KV Isolated 1.5 KV Isolated

Mechanical

Construction Aluminum housing, Black Aluminum housing, Black
Mounting
  • Desk/Wall-mounting
  • Din-Rail/VESA mounting by project based support
  • Desk/Wall-mounting
  • Din-Rail/VESA mounting by project based support
Dimensions (W x H x D)
  • 280 x 81 x 230 mm (without wall-mounting)
  • 316 x 81 x 230 mm (with wall-mounting)
  • 280 x 81 x 230 mm (without wall-mounting)
  • 316 x 81 x 230 mm (with wall-mounting)

Environment

Operating Temperature
  • Standard: 0-60 °C
  • Extended: -40-70 °C with air flow 0.7m/s (with extended temperature peripherals)
  • Standard: 0-60 °C
  • Extended: -40-70 °C with air flow 0.7m/s (with extended temperature peripherals)
Storage Temperature -40 ~ 85 °C (-40~185 °F) -40 ~ 85 °C (-40~185 °F)
Relative Humidity 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing)
Sealing level IP65 (work with option Amphenol waterproof cap and boot style hood to protect mating interfaces against water and dust incursion) IP65 (work with option Amphenol waterproof cap and boot style hood to protect mating interfaces against water and dust incursion)

Vibration/Shock

  • IEC 60721-3-5 (Vehicle-5M3)
  • MIL-STD-810H method 814.8 (Category 4. Trucks and trailer)
  • IEC 60721-3-5 (Vehicle-5M3)
  • MIL-STD-810H method 814.8 (Category 4. Trucks and trailer)

Regulation

EMC CE/FCC Class B CE/FCC Class B
Safety
  • 12V/ 24VDC: E-Mark (E13)*
  • 24VDC: EN50155 and EN45545*
  • 12V/ 24VDC: E-Mark (E13)*
  • 24VDC: EN50155 and EN45545*
In-Vehicle Power ISO7637-2 Lev.4 ISO7637-2 Lev.4

Others

Warranty 3 years 3 years
