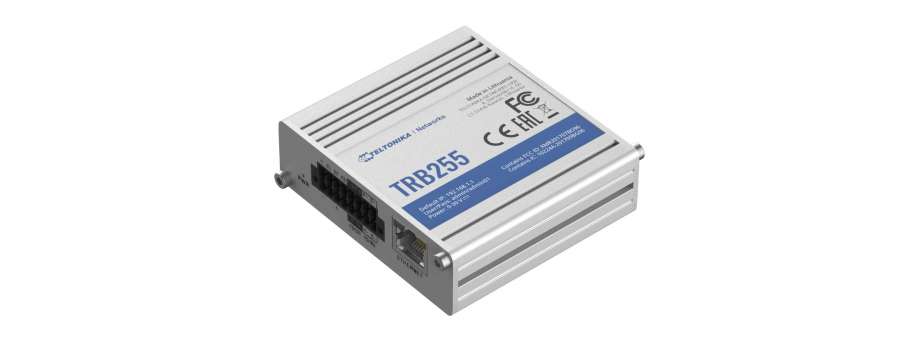

Mobile
|
|
| Mobile module |
LTE (Cat M1) / NB-IoT / EGPRS
|
| SIM switch |
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail |
| Status |
Signal strength, Connected band, SINR, RSRP, RSRQ, Bytes sent/received |
Ethernet
|
|
| LAN |
1 x LAN port 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
Network
|
|
| Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) (planned) |
| Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), UPNP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned) |
| VoIP passthrough support (planned) |
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring |
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall |
Port forward, traffic rules, custom rules |
| DHCP |
Static and dynamic IP allocation, DHCP Relay |
System characteristics
|
|
| CPU |
Qualcomm QCA9531, MIPS 24kc, 650 MHz |
| RAM |
64 MB, DDR2 |
| Flash memory |
16MB SPI Flash (4 MB available for user) |
Input/output
|
|
| Configurable I/O |
3 x Configurable Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA |
| Analog input |
1 x Analog input (0 - 30 V) |
| Events (planned) |
SMS, Email |
| Output control |
HTTP POST/GET, Schedule |
| I/O juggler (planned) |
Allows to set certain I/O conditions to initiate event |
Serial
|
|
| RS232 |
Terminal block connector: TX, RX, RTS, CTS |
| RS485 |
Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface) |
| Supported baud rates |
From 300 to 3000000 |
| Number of data bits |
7 or 8 |
| Number of stop bits |
1 or 2 |
| Parity |
None, Even, Odd |
| Flow control |
None, RTS/CTS (only for RS232 interface), Xon/Xoff |
Power
|
|
| Connector |
2 pins in 16 pin industrial terminal block |
| Input voltage range |
9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max |
| Power consumption |
Idle: <1.2 W, Max: <5 W |
Physical interfaces
|
|
| Ethernet |
1 x RJ45 port, 10/100 Mbps |
| I/O’s |
3 x Configurable I/O, 1 x Analog input in 16 pin terminal block |
| Status LEDs |
3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED |
| SIM |
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray |
| Power |
2 pins in 16 pin terminal block |
| Antennas |
1 x SMA connector for Mobile, 1 x SMA connector for GNSS |
| RS232 |
4 pins in 16 pin terminal block (TX, RX, RTS, CTS) |
| RS485 |
4 pins in 16 pin terminal block (D+, D-, R+, R-) |
| Reset |
Reboot, restore to user default (planned), restore to factory defaults |
Physical specification
|
|
| Casing material |
Aluminium housing with DIN rail mounting option |
| Dimensions |
74 x 83 x 25 mm (L x W x H) |
| Weight |
165 g |
| Mounting options |
DIN rail, wall mounting (additional kits needed), flat surface placement |
Operating environment
|
|
| Operating temperature |
-40 ℃ to 75 ℃ |
| Operating humidity |
10% to 90% non-condensing |
