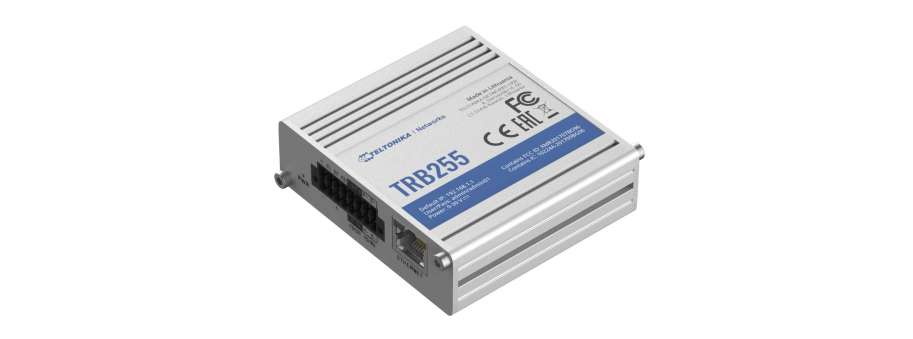

LTE Cat M1 & NB-IoT gateway TRB255

LTE Cat M1 & NB-IoT gateway Teltonika TRB255 with RS232, RS485 & Ethernet and 1 x LAN port 10/100 Mbps

Networks and Communications >> Cellular Routers & Gateways

 Price and avalability

Manufacturer: Teltonika

TRB255 can be used to integrate modern and legacy industrial equipment into one solution via RS232, RS485 & Ethernet interfaces.

This industrial LTE Cat M1 & NB-IoT gateway is backward compatible to EGPRS (2G) networks. It can still be used with 2G network, however in case it gets shut down, there is a possibility to switch to LPWAN connectivity options.

TRB255 has a wide range of industrial and networking features such as Modbus, SMS control, Firewall, OpenVPN and more.

This product is compatible with the Teltonika Networks Remote Management System (RMS).

User manual

Price and avalability

Partnumber Description Price VAT incl Avalability
Teltonika RMS Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою).  75,8 Доступно

Additional information

Mobile


Mobile module

LTE (Cat M1) / NB-IoT / EGPRS

SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail
Status Signal strength, Connected band, SINR, RSRP, RSRQ, Bytes sent/received

Ethernet


LAN 1 x LAN port 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network


Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) (planned)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), UPNP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned)
VoIP passthrough support (planned) H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay

System characteristics


CPU Qualcomm QCA9531, MIPS 24kc, 650 MHz
RAM 64 MB, DDR2
Flash memory 16MB SPI Flash (4 MB available for user)

Input/output


Configurable I/O 3 x Configurable Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
Analog input 1 x Analog input (0 - 30 V)
Events (planned) SMS, Email
Output control HTTP POST/GET, Schedule
I/O juggler (planned) Allows to set certain I/O conditions to initiate event

Serial


RS232 Terminal block connector: TX, RX, RTS, CTS
RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Supported baud rates From 300 to 3000000
Number of data bits 7 or 8
Number of stop bits 1 or 2
Parity None, Even, Odd
Flow control None, RTS/CTS (only for RS232 interface), Xon/Xoff

Power


Connector 2 pins in 16 pin industrial terminal block
Input voltage range 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
Power consumption Idle: <1.2 W, Max: <5 W

Physical interfaces


Ethernet 1 x RJ45 port, 10/100 Mbps
I/O’s 3 x Configurable I/O, 1 x Analog input in 16 pin terminal block
Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 1 x power LED, 1 x Eth port status LED
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
Power 2 pins in 16 pin terminal block
Antennas 1 x SMA connector for Mobile, 1 x SMA connector for GNSS
RS232 4 pins in 16 pin terminal block (TX, RX, RTS, CTS)
RS485 4 pins in 16 pin terminal block (D+, D-, R+, R-)
Reset Reboot, restore to user default (planned), restore to factory defaults

Physical specification


Casing material Aluminium housing with DIN rail mounting option
Dimensions 74 x 83 x 25 mm (L x W x H)
Weight 165 g
Mounting options DIN rail, wall mounting (additional kits needed), flat surface placement

Operating environment


Operating temperature -40 ℃ to 75 ℃
Operating humidity 10% to 90% non-condensing
