EKI-1511X and EKI-1512X serial device servers

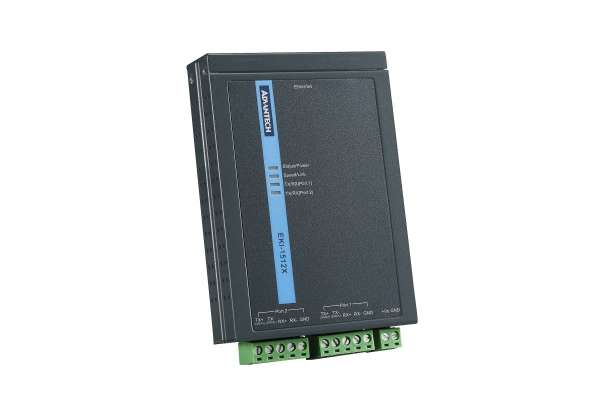

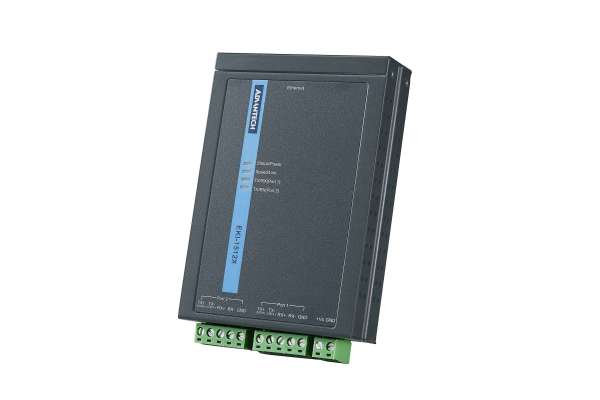

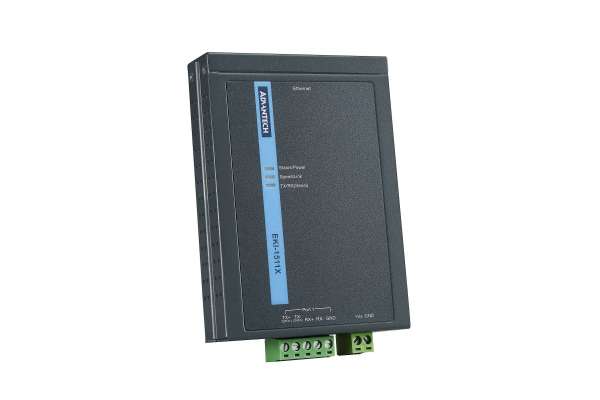

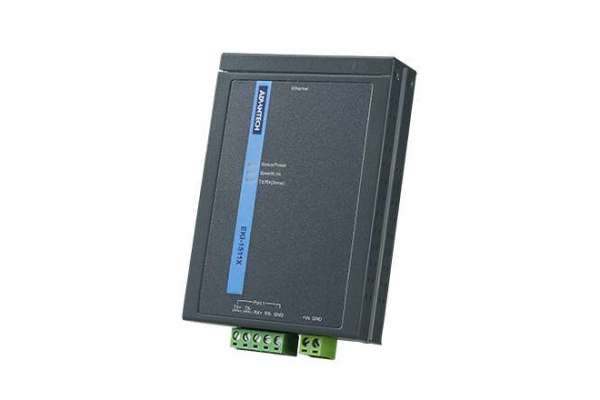

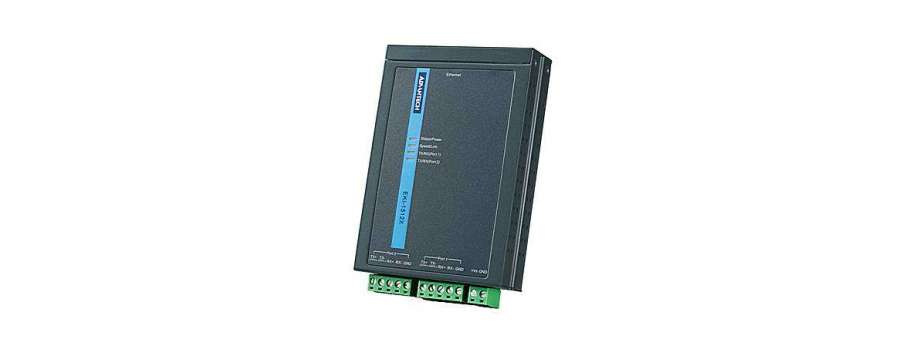

1/2-port RS-422/485 Serial Device Server Advantech EKI-1511X and EKI-1512X in IP slim metal case with terminal block wiring

Networks and Communications >> Device servers, gateways and converters

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The EKI-1511X and EKI-1512X are serial device servers which connect RS-422/485 serial devices, such as PLC, meters, and sensors to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1511X and EKI-1512X provide various operation modes: COM port redirection (Virtual COM port), TCP server, TCP Client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1511X and EKI-1512X, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client and UDP modes, the EKI-1511X and EKI-1512X ensure the compatibility of network software that uses a standard network API. Moreover you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming. With a compact and slim IP30 metal case, EKI-1511X and EKI-1512X can be installed into a field cabinet easily. EKI-1511X and EKI-1512X provide terminal block connector for RS-422/485 that user can setup the physical wiring without any manually made connector. And with EMC level 3 protection, EKI-1511X and EKI-1512X can work in harsher working environments than other serial device servers.

Price and avalability

Partnumber Description Price VAT incl Avalability
EKI-1511X-AE Мережевий пристрій/Перетворювач інтерфейсів 1-port RS-422/485 Serial Device Server  4 224,5 Доступно
EKI-1512X-AE Мережевий пристрій/Перетворювач інтерфейсів 2-port RS-422/485 Serial Device Server  5 598,9

Additional information

Part Number

EKI-1511X-AE

EKI-1512X-AE

Software



Configuration

Windows utility, Web Browser

Operation Modes

COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection

OS Support

32-bit/64-bit Windows XP/7/8/8.1/10, Windows Server 2003/2008/2008 R2/2012/2012 R2 and Linux

Ethernet Communications



Ethernet Standard

IEEE 802.3, 802.3u

Port Connector

RJ45

Port Number

1

2

Speed

10/100BaseT(X), Auto-sensing

Mechanism



Weight

250g

275g

Dimensions (W x H x D)

85 x 120 x 26 mm

Enclosure

Metal

IP Rating

IP30

Mounting

Wall mount

Serial Communications



Port Number

1

2

Serial Type

RS-422/485

Transmission Speed

50~ 921.6 kbps, any baud rate setting

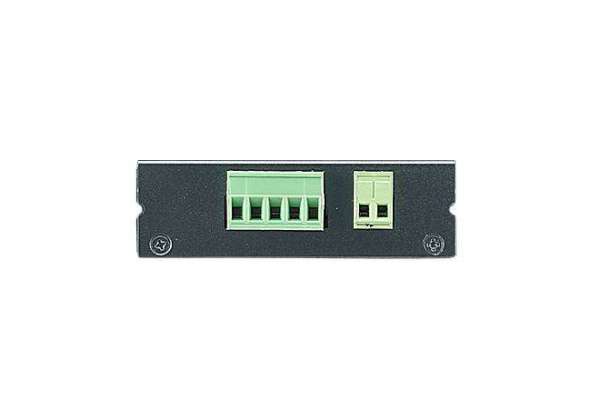

Port Connector

Terminal Block

Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

Freefall

IEC 60068-2-32

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Power Requirements



Connectors

2-pin removeable screw terminal

Operating Current

0.1 A @ 24 V

Operating Voltage

10 ~ 30 VDC

Power Consumption

2.5 W

Reverse Polarity

Present

Warranty



Warranty Period

5 years

Environment



Operating Temperature

-10 ~ 60°C (14 ~ 140°F)

Relative Humidity (Non-condensing)

10 ~ 95%

Storage Temperature

- 40 ~ 85°C ( -40 ~ 185°F)
