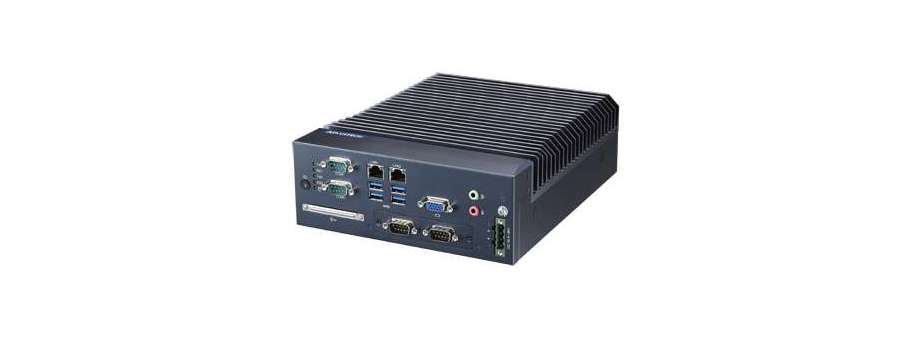

Компактная безвентиляторная система Advantech Intel Xeon Broadwell-DE SoC MIC-7900
Цены и наличие
| Код товара | Описание товара | Цена с НДС | Наличие на складе |
|---|---|---|---|
| MIC-7900-S5A2 | Intel Xeon D-1559 1.5GHz,12 Core | 136 607,0 | |
| MIC-7900-S6A2 | Intel Xeon D-1539 1.6GHz, 8 Core | 109 166,0 |
Компактная безвентиляторная система Intel Xeon Broadwell-DE SoC MIC-7900
- Процессор Intel Xeon Broadwell-DE D-1539 / D-1559 SoC
- Широкий диапазон рабочей температуры (-20 ~ 50 ° C)
- 9 ~ 36 В постоянного тока
- 2 x RS-232/422/485 и 4 x RS232 последовательных порта (с кабелем расширения)
- 1 х 2,5 "HDD, 1 х CFast, 1 х M.2
- Поддержка полного спектра i-модуля
- 4 х GigaLAN и 4 х USB 3.0
- Поддерживает i-модуль Advantech, SUSIAccess и API встроенного программного обеспечения
Дополнительная информация
Part Number |
MIC-7900-S5A1E |
MIC-7900-S6A1E |
| Processor System | ||
|
CPU |
Intel Xeon D-1559 |
Intel Xeon D-1539 |
|
Core Number |
12 | 8 |
|
Frequency |
1.5 GHz |
1.6 GHz |
|
L3 Cache |
12M |
8M |
|
BIOS |
AMI 64 Mb SPI Flash |
AMI 64 Mb SPI Flash |
| Ethernet | ||
|
Controller |
4 x Intel i210IT |
4 x Intel i210IT |
|
Interface |
4 x RJ45 |
4 x RJ45 |
| Memory | ||
|
Technology |
Dual Channel(Non-ECC) DDR4 1866/2133 MHz |
Dual-channel DDR4 2133 MHz (Support ECC) |
|
Max. Capacity |
32 GB |
32 GB |
|
Socket |
2x 260 pin DDR4 SO-DIMM socket, up to 16GB per socket |
2x 260 pin DDR4 SO-DIMM socket, up to 16GB per socket |
| Environment | ||
|
Operating Shock |
With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration |
With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration |
|
Operating Vibration |
With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis |
With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis |
|
Operating-Temperature |
-20 ~ 50 °C with 0.7 m/s air flow |
-20 ~ 50 °C with 0.7 m/s air flow |
| Expansion Slot | ||
|
M.2 |
1 (Support PCIE signal) |
1 (Support PCIE signal) |
|
Mini-PCIE |
1 (no support m-SATA storage) |
1 (no support m-SATA storage) |

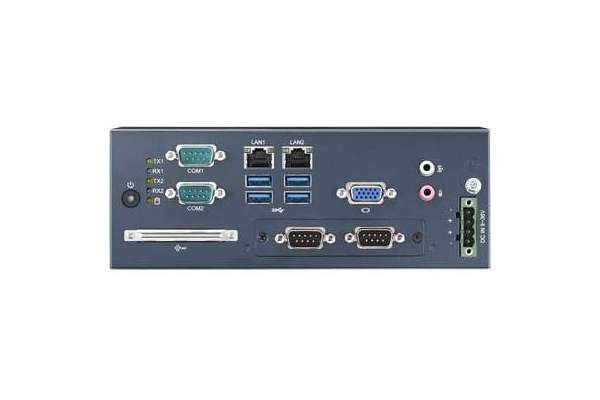

| Front I/O Interface | ||
|
Audio Jack |
1xLine-out; 1x Mic-in |
1xLine-out; 1x Mic-in |
|
Serial Port |
2xRS-232/422/485 |
2xRS-232/422/485 |
|
USB3.0 |
4 | 4 |
| Graphics | ||
|
Graphic Interface |
VGA |
VGA |
|
Chipset Integrated |
Aspeed 1400 |
Aspeed 1400 |
| Physical Characteristics | ||
|
Dimensions (W x H x D) |
74x192x230mm (2.9" x 7.6" x9") |
74x192x230mm (2.9" x 7.6" x9") |
|
Weight |
2.9kg (6,39lbs) |
2.9kg (6,39lbs) |
| Power | ||
|
Power Input |
9-36VDC |
9-36VDC |
|
Power Type |
ATX/AT |
ATX/AT |
| Storage | ||
|
CFast |
1 | 1 |
|
HDD |
1 x internal 2.5" HDD Bay |
1 x internal 2.5" HDD Bay |
| WatchDog Timer | ||
|
Interval |
Programmable 1 ~255 sec |
Programmable 1 ~255 sec |
|
Output |
System Reset |
System Reset |
