System with Broadwell-DE SoC processor MIC-7900

Intel Xeon Processor Broadwell-DE SoC Compact Fanless System MIC-7900

Industrial Computer >> Embedded computers with expansion slots

 Price and avalability

Manufacturer: Advantech Co., Ltd.

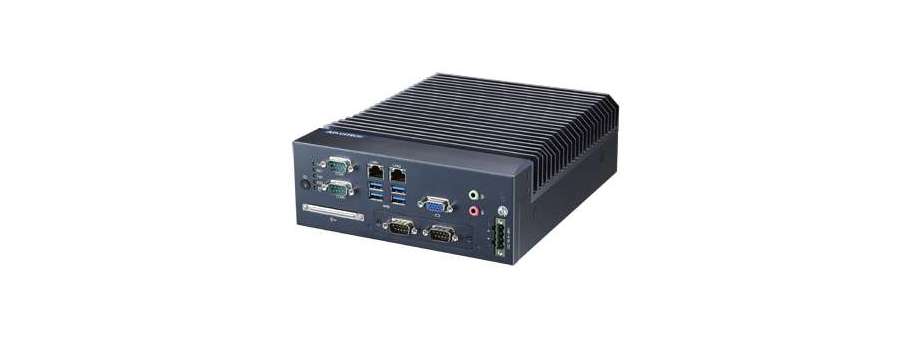

Intel Xeon Processor Broadwell-DE SoC Compact Fanless System MIC-7900

  • Intel Xeon Processor Broadwell-DE D-1539/D-1559 SoC CPU
  • Wide operating temperature (-20 ~ 50 °C)
  • 9 ~ 36V DC input power range
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (with expansion cable)
  • 1 x 2.5" HDD, 1 x CFast, 1 x M.2
  • Support full range of i-module
  • 4 x GigaLAN and 4 x USB 3.0
  • Supports Advantech’s i-module, SUSIAccess, and embedded software APIs

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-7900-S5A1E Компактный промышленный компьютер Intel Xeon D-1559 1.5GHz,12 Core  78 849,2
MIC-7900-S6A1E Компактный промышленный компьютер Intel Xeon D-1539 1.6GHz, 8 Core  62 734,6

Additional information

Part Number

MIC-7900-S5A1E

MIC-7900-S6A1E

Processor System

CPU

Intel Xeon D-1559

Intel Xeon D-1539

Core Number

12  8

Frequency

1.5 GHz

1.6 GHz

L3 Cache

12M

8M

BIOS

AMI 64 Mb SPI Flash

AMI 64 Mb SPI Flash

Ethernet

Controller

4 x Intel i210IT

4 x Intel i210IT

Interface

4 x RJ45

4 x RJ45

Memory

Technology

Dual Channel(Non-ECC) DDR4 1866/2133 MHz

Dual-channel DDR4 2133 MHz (Support ECC)

Max. Capacity

32 GB

32 GB

Socket

2x 260 pin DDR4 SO-DIMM socket, up to 16GB per socket

2x 260 pin DDR4 SO-DIMM socket, up to 16GB per socket

Environment

Operating Shock

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

Operating Vibration

With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis

With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis

Operating-Temperature

-20 ~ 50 °C with 0.7 m/s air flow

-20 ~ 50 °C with 0.7 m/s air flow

Expansion Slot

M.2

1 (Support PCIE signal)

1 (Support PCIE signal)

Mini-PCIE

1 (no support m-SATA storage)

1 (no support m-SATA storage)

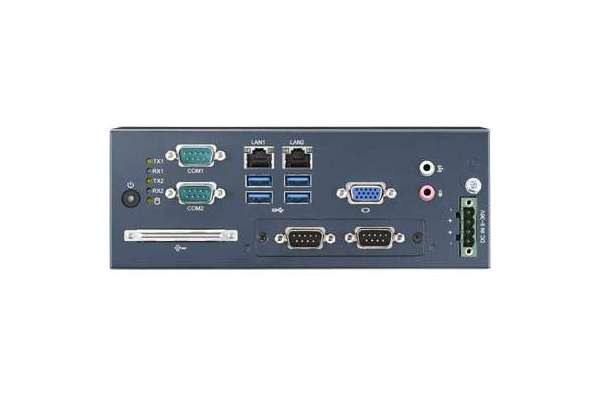

Front I/O Interface

Audio Jack

1xLine-out; 1x Mic-in

1xLine-out; 1x Mic-in

Serial Port

2xRS-232/422/485

2xRS-232/422/485

USB3.0

4 4
Graphics

Graphic Interface

VGA

VGA

Chipset Integrated

Aspeed 1400

Aspeed 1400

Physical Characteristics

Dimensions (W x H x D)

74x192x230mm (2.9" x 7.6" x9")

74x192x230mm (2.9" x 7.6" x9")

Weight

2.9kg (6,39lbs)

2.9kg (6,39lbs)

Power

Power Input

9-36VDC

9-36VDC

Power Type

ATX/AT

ATX/AT

Storage

CFast

1 1

HDD

1 x internal 2.5" HDD Bay

1 x internal 2.5" HDD Bay

WatchDog Timer

Interval

Programmable 1 ~255 sec

Programmable 1 ~255 sec

Output

System Reset

System Reset
