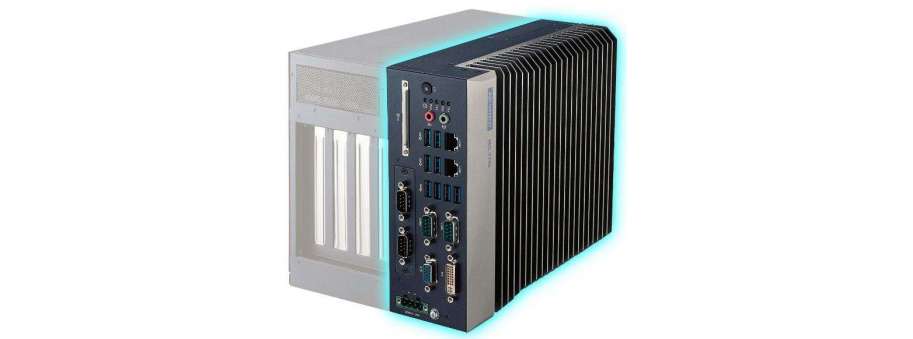

Intel® 6th / 7th Generation Core i Desktop Compact Fanless System Advantech MIC-7700

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-7700H-00A2 Компактний промисловий комп'ютер Advantech MIC-7700, H110, Modular IPC  49 131,1
MIC-7700H-02A2 H110, i211AT, Modular IPC  50 918,9
MIC-7700Q-00A2 Компактний промисловий комп'ютер Advantech MIC-7700, Q170, VGA+DVI, 4 COM, 8 USB3.0  54 693,4
MIC-7700Q-02A2 Q170, i211AT, Modular IPC  58 961,1
  • Intel® 6th/7th Generation Core i Desktop CPU (LGA1151) with Q170/H110 chipset
  • 2 x RS-232/422/485 and 4 x RS232 serial ports (with expansion cable)
  • 1 x 2.5" HDD, 1 x CFast, 1x mSATA and 1 mini-PCIe with SIM
  • Supports 2 LAN, Isolation COM, 32-bit GPIO modules
  • 2 x GigaLAN and 8 x USB 3.0
  • VGA and DVI output
  • Supports Advantech’s i-module, SUSIAccess, and embedded software APIs
  • 9 ~ 36 V DC input power range
  • Wide operating temperature

Additional information

MIC-7700H-00A1 MIC-7700Q-00A1
Expansion Slot

Mini-PCIE

1 x miniPCIe with USIM and 1 x mSATA

1 x miniPCIe with USIM and 1 x mSATA

Front I/O Interface

USB2.0

4 -

USB3.0

4 8

Audio Jack

1xLine-out; 1x Mic-in

1xLine-out; 1x Mic-in

Serial Port

2xRS-232/422/485; 2xRS-232

2xRS-232/422/485; 2xRS-232

Environment

Operating Shock

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

Operating Vibration

1Grms (with HDD), 3Grms (with SSD)

1Grms (with HDD), 3Grms (with SSD)

Ethernet

Interface

2 x RJ-45

2 x RJ-45

Controller

LAN1: Intel I219V, LAN2: Intel I210IT

LAN1: Intel I219V, LAN2: Intel I210IT

Graphics

Graphic Interface

VGA + DVI

VGA + DVI

Chipset Integrated

Intel HD Graphic 530/510, support DirectX12

Intel HD Graphic 530/510, support DirectX12

Miscellaneous

Control

Power Switch

Power Switch

Physical Characteristics

Dimensions (W x H x D)

78 x 192 x 230 mm

78 x 192 x 230 mm

Weight

2.8 kg (6.17 lbs)

2.8 kg (6.17 lbs)

Power

Power Input

9-36VDC

9-36VDC

Power Type

ATX/AT

ATX/AT

Storage

CFast

1 1

HDD

1 x internal 2.5" HDD Bay

1 x internal 2.5" HDD Bay

WatchDog Timer

Interval

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

Output

System Reset

System Reset

Memory

Max. Capacity

32GB (16GB per DIMM)

32GB (16GB per DIMM)

Socket

2 x 260-pin SO-DIMM

2 x 260-pin SO-DIMM

Technology

Dual Channel DDR4-2133MHz

Dual Channel DDR4-2133MHz

Processor System

CPU

Intel Core i3/i5/i7 (LGA1151)

Intel Core i3/i5/i7 (LGA1151)

Chipset

Intel H110

Intel Q170

Core Number

4 / 2 core

4 / 2 core

BIOS

AMI 128Mbit SPI Flash

AMI 128Mbit SPI Flash

Frequency

Based on Intel CPU spec

Based on Intel CPU spec

L3 Cache

8 MB/6 MB/4 MB/3 MB/2 MB

8 MB/6 MB/4 MB/3 MB/2 MB
