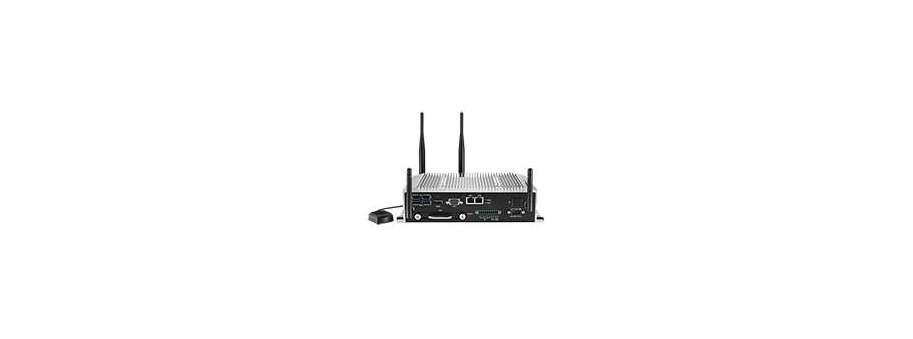

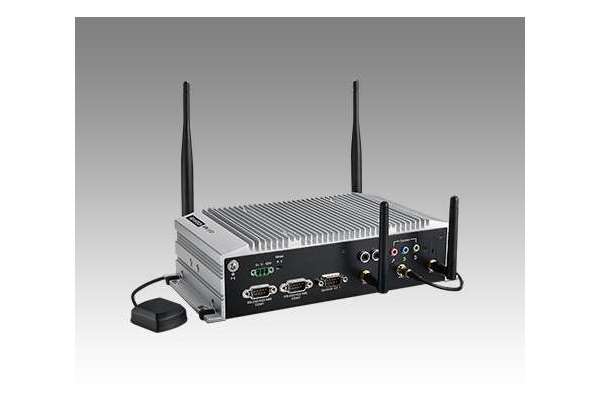

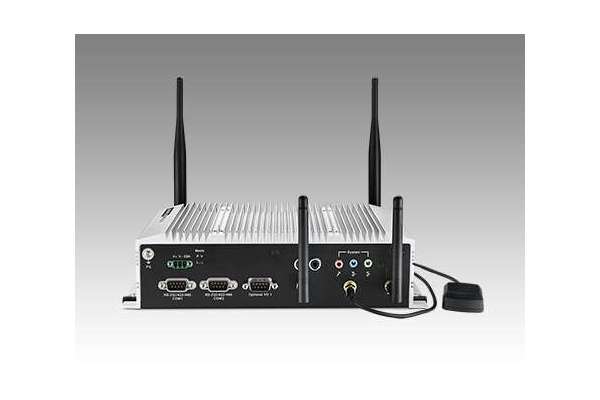

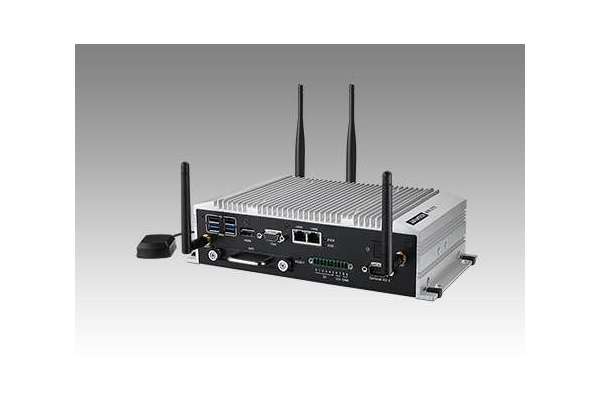

Прочный безвентиляторный ПК Advantech ARK-2121V

Встраиваемый бесшумний бортовой ПК с NVR 4 портами PoE Intel® Atom E3825 / Atom E3845 SoC Advantech ARK-2121V

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
ARK-2121V-S3A2E	Компактний промисловий комп'ютер Advantech ARK Intel Atom E3825 DC 1.33GHz w/4 COM D1 Stepping	49 141,8
ARK-2121V-S9A2E	Компактний промисловий комп'ютер Advantech ARK Intel Atom E3845 QC 1.91GHz w/4 COM D1 Stepping	55 966,3

• 2-хъядерный процессор Intel® Atom E3825 с тактовой частотой 1,33 ГГц 4-хъядерный процессор E3845 с тактовой частотой 1,91 ГГц SoC.
• 4 порта PoE для поддержки основных IP-камер.
• Изолированные COM-порты и DIO.
• Разнообразные коммуникационные возможности, например WWAN, WLAN.
• Интеллектуальная система запуска двигателя автомобиля.
• Широкий диапазон входного напряжения 11–36 В постоянного тока с изоляцией.
• 1 съемный отсек для 2,5-дюймового диска.
• Поддержка iManager, SUSIAccess и встроенных программных API.
• Широкий диапазон рабочих температур от -40 до 70 °C (в зависимости от проекта).

Дополнительная информация

	ARK-2121V-S9A2E	ARK-2121V-S3A2E
Processor System
CPU	Intel Atom E3845 QC SoC	Intel Atom E3825 DC SoC
Frequency	1.91 GHz	1.33 GHz
L2 Cache	2 MB	1 MB
BIOS	AMI EFI 64 Mbi	AMI EFI 64 Mbi
Memory
Technology	DDR3L 1333 MHz	DDR3L 1066 MHz
Max. Capacity	8 GB	8 GB
Socket	1 x 204-pin SO-DIMM	1 x 204-pin SO-DIMM
Graphics
Chipset	Intel Gen7 Graphics	Intel Gen7 Graphics
Graphic Engine	DirectX11, OpenGL3.2, OpenCL1.1 Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2	DirectX11, OpenGL3.2, OpenCL1.1 Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2
VGA	Up to 2560 x 1600 @ 60Hz	Up to 2560 x 1600 @ 60Hz
HDMI	Lockable HDMI connector, up to 1080p	Lockable HDMI connector, up to 1080p
Audio
Main System	Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in	Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
Ethernet
LAN #1	10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN	10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
LAN #2	10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN	10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
I/O Interface
Power over Ethernet, PoE	4 x 10/100 Mbps - 4ports full-load, IEEE802.3af Class 2 (7Watt) - 2ports full-load, IEEE802.3af Class 3 (15.4Watt)	N/A
Serial Ports	2x non-isolated RS-232/422/485 with auto flow control	2x isolated RS-232/422/485 with auto flow control (3KV isolation) 2x non-isolated RS-232/422/485 with auto flow control
CANBus	Option, 2ch CANBus 2.0A/B (1xCOM will be replaced)	Option, 2ch CANBus 2.0A/B (1xCOM will be replaced)
GPIO	6 x DI & 2 x DO w/ 3KV isolation Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel On-state Voltage: 24 VDC nominal, open collector to 30 VD	6 x DI & 2 x DO w/ 3KV isolation Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel On-state Voltage: 24 VDC nominal, open collector to 30 VD
USB	3 x USB 2.0 & 1 x USB3.0	3 x USB 2.0 & 1 x USB3.0
Other
Watchdog timer	255-level timer interval, setup by software	255-level timer interval, setup by software
Expansion
Mini PCIe #1	Full-size Mini PCIe (USB, SATA interface)	Full-size Mini PCIe (USB, SATA interface)
Mini PCIe #2	Full-size Mini PCIe w/SIM holder (PCIe, USB interface)	Full-size Mini PCIe w/SIM holder (PCIe, USB interface)
Mini PCIe #3/4	2 x Full-size Mini PCIe w/SIM holders (USB interface)	2 x Full-size Mini PCIe w/SIM holders (USB interface)
Storage
2.5" Drive Bay	1 x removable 2.5" drive bay (Standard 9.5mm height, 15mm height support by project)	1 x removable 2.5" drive bay (Standard 9.5mm height, 15mm height support by project)
mSATA	Laverage MiniPCIe #1 slot	Laverage MiniPCIe #1 slot
Software Support
Microsoft Windows	Win7, Win10	Win7, Win10
Linux	Support by project	Support by project
Power Requirement
Power Type	ATX/AT	ATX/AT
Power Input Voltage*	11 ~ 36 VDC w/isolation	11 ~ 36 VDC w/isolation
Vehicle Power Ignition	Selectable boot-up & shut-down voltage, on/off delay time	Selectable boot-up & shut-down voltage, on/off delay time
Power Consumption	16W (Typical), 66W (Max)	16W (Typical), 36W (Max
Isolation	1.5KV Isolated	1.5KV Isolated
Mechanical
Construction	Aluminum housing, Silver	Aluminum housing, Silver
Mounting	Din-Rail mounting, Desk/wall-mounting, VESA mounting	Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions (W x H x D)	264.5 x 69.2 x 133.0 mm	264.5 x 69.2 x 133.0 mm
Environment
Operating Temperature	With extended temperature peripherals: -40 ~ 70 °C with 0.7m/s air flow (standard) With standard temperature peripherals: 0 ~ 45 °C with 0.7m/s air flow	With extended temperature peripherals: -40 ~ 70 °C with 0.7m/s air flow (standard) With standard temperature peripherals: 0 ~ 45 °C with 0.7m/s air flow
Storage Temperature	-40 ~ 85 °C (-40~185 °F)	-40 ~ 85 °C (-40~185 °F)
Relative Humidity	95% @ 40 °C (non-condensing)	95% @ 40 °C (non-condensing)
Vibration/Shock	With mSATA/SSD: IEC 60721-3-5 Class 5M3	With mSATA/SSD: IEC 60721-3-5 Class 5M3
Regulation
EMC	CE/FCC Class A, CCC, BSMI (No RED certification)	CE/FCC Class A, CCC, BSMI (No RED certification)
Safety	UL, CCC, BSMI, E-Mark (E13)	UL, CCC, BSMI, E-Mark (E13)
In-Vehicle Power	ISO7637-2 Lev.4	ISO7637-2 Lev.4
