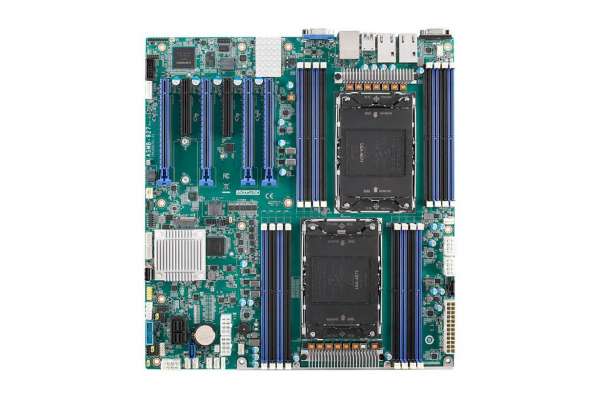

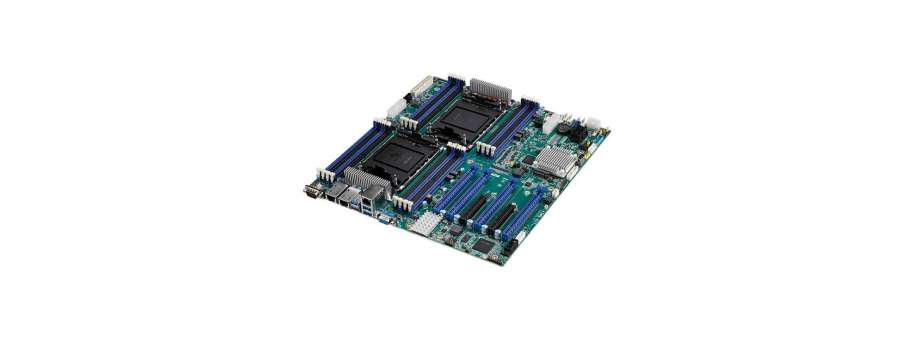

Промышленная серверная плата с Dual LGA4677 процессором Intel® Xeon® 4 поколения EATX Advntech с 16 DDR5, 4 PCIe x16, 9 SATA3.0, 6 USB 3.2 (Gen1), Dual 10GbE и IPMI ASMB-927

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
ASMB-927T2-00A1 LGA4677 EATX SMB 16 DIMM/4 PCIe x16/2 10GbE/IPMI  91 511,0
  • Серверная плата LGA4677 EATX с масштабируемым процессором Xeon® 4-го поколения
  • DDR5 4800 МГц RDIMM до 4 ТБ (16 модулей DIMM) поддерживает энергонезависимую память Intel® Optane™
  • Четыре PCIe x16 и два PCIe x8
  • Intel® X710-AT2 с двумя портами 10GbE
  • Девять разъемов SATA3.0 и один разъем M.2 (совместимый с SATA/PCIe)
  • Диапазон рабочих температур окружающей среды 0 ~ 40 °C

Дополнительная информация

Form Factor

EATX form factor

Processor System

Socket Dual Intel LGA4677
CPU type Intel 4th Generation Xeon Scalable processors (CPU cooler should be purchased separately and TDP up to 205W*)

Core Logic

Chipset Intel C741 chipset

Memory

Total slots 16 (1 DIMM per channel)
Capacity Maximum 4TB ECC RDIMM
Memory type DDR5 ECC-REG 3200/3600/4000/4400/4800 MHz RDIMM
Memory size 16GB, 32GB, 64GB, 128GB, 256GB

Expansion Slots

Total PCI/PCI-X/PCIe slots 6
Slot location 1 PCIe x16 slot (x16 link), signal from CPU0, CXL support
Slot location 2 PCIe x8 slot (x8 link), signal from CPU1
Slot location 3 PCIe x16 slot (x16 link), signal from CPU0, CXL support
Slot location 4 PCIe x8 slot (x8 link), signal from CPU1
Slot location 5 PCIe x16 slot (x16 link), signal from CPU0, CXL support
Slot location 6 PCIe x16 slot (x16 link), signal from CPU1, CXL support

Graphics

VGA Aspeed AST2600

Storage

SATA controller Intel® C741: 8 x SATA3.0 (6 Gb/s) via Mini SAS HD (SFF-8643), support software RAID 0,1,5,10 1 x SATA3.0 (6Gb/s)
SAS controller -

Networking

GbE/10GbE LAN Intel® X710-AT2 (dual 10GbE ports)

Onboard I/O Connector

PSU connector 24-pin SSI power connector + 5 x 8-pin SSI 12 V power connector
USB connector 2 x USB 2.0 ports (one onboard header) + 2 x USB 3.2 Gen1 ports (one onboard header) + 1 x Type-A USB 2.0 port
Fan header 7 x 4pin (5 for system + 2 for CPU)
M.2 1 x M.2 2242/2280 B+M key (SATA and PCIe)
SMBus 1
Chassis intrusion 1
Front LAN LED 1
Audio Header 1
PS/2 Keyboard/Mouse header 1
Serial port header 1

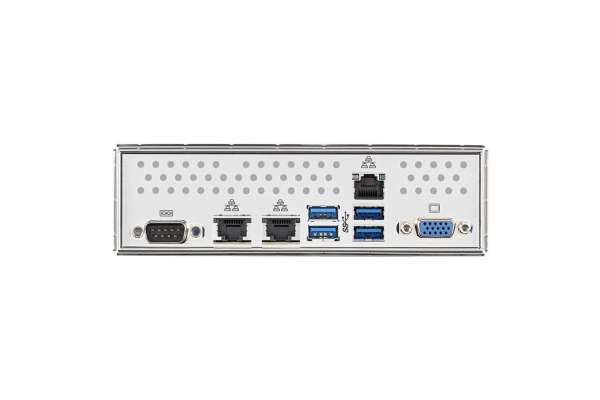

Rear I/O Connector

External serial port 1
External USB port 4 x USB3.2 Gen1
VGA port 1
RJ-45 3 (1 port dedicated for IPMI function)
PS/2 Keyboard/Mouse -
Infiniband -

Management Solution

Software -
Out of band remote management Yes

Monitoring

CPU temperature Yes
System Monitoring Yes

Watchdog Timer

Output System reset
Interva Programmable 1 ~ 255 sec/min

Power Requirement

Power On

(205W CPU@1.6GHz DDR5 4800 64G*16)

3.3V (2.2A)

5V (1.9A)

12V (0.3A)

5Vsb (0.1A)

-12V (0A)

12V_8P(38.53A)

Environment

Temperature
  • Operating 0 ~ 40 °C/ 32 ~ 104 °F, depends on CPU speed and cooler solution
  • Non-operating -40 ~ 85 °C/-40 ~ 185 °F
Humidity
  • Operating 10% ~ 95%
  • Non-operating 10% ~ 95% (Non condensing)

Physical Characteristics

Dimension (L x H) 304.8 x 330.2 mm (12" x 13")
