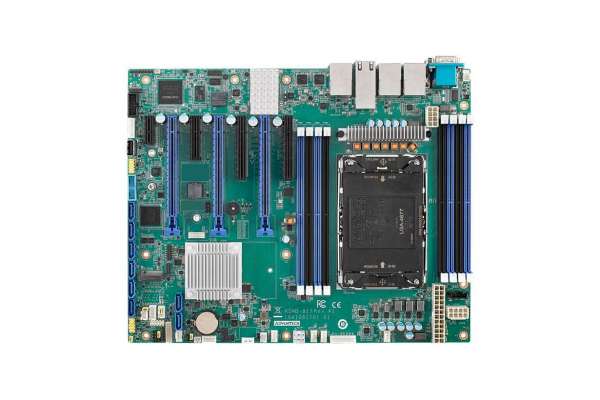

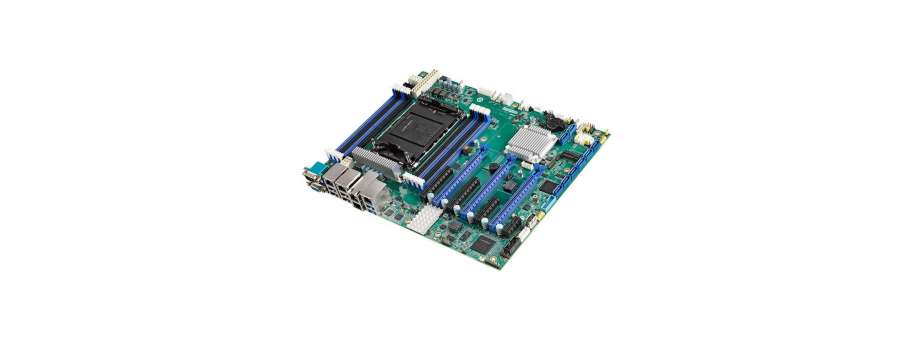

Серверная плата с Intel® Xeon® Scalable ATX 4-го поколения Advantech с 8 модулями памяти DDR5, 3 модулями PCIe x16, 8 портами SATA 3, 4 портами USB 3.2 (Gen1), 2 портами 10GbE и IPMI ASMB-817

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
ASMB-817T2-00A1 LGA4677 ATX SMB w/8 SATA/3 PCIe x16/2 10GbE/IPMI  73 944,3
ASMB-817I-00A1 LGA4677 ATX SMB w/8 SATA/3 PCIe x16/IPMI  63 022,1
  • Серверная плата LGA4677 ATX с масштабируемым процессором Intel Xeon® 4-го поколения
  • DDR5 4400/4800 МГц RDIMM до 2 ТБ (8 модулей DIMM) поддерживает энергонезависимую память Intel® Optane™
  • Расширения 3x PCIe x16, 2x PCIe x8, 1x PCIe x4 и 1x PCIe x1
  • 2 порта Intel® X710 10GbE
  • 8 разъемов SATA 3 и один разъем M.2 (совместимый с SATA/PCIe)
  • Диапазон рабочих температур окружающей среды 0 ~ 60 °C

Дополнительная информация

Form Factor

ATX form factor

Processor System

Socket Intel LGA4677 (Socket E)
CPU type 4th Gen Intel Xeon Scalable processors (CPU cooler should be purchased separately*)

Core Logic

Chipset Intel C741 chipset

Memory

Total slots 8x (1 DIMM per channel)
Capacity Maximum 2TB ECC RDIMM
Memory type DDR5 ECC-REG 4400/4800 MHz RDIMM, supports Intel® Optane™ Persistent Memory
Memory size 16GB, 32GB, 64GB, 128GB, 256GB

Expansion Slots

Total PCI/PCI-X/PCIe slots 7
Slot location 1 PCIe x1 slot (x1 link), signal from PCH
Slot location 2 PCIe x16 slot (x16 link), signal from CPU, CXL support
Slot location 3 PCIe x4 slot (x4 link), signal from CPU
Slot location 4 PCIe x16 slot (x16 link), signal from CPU, CXL support
Slot location 5 PCIe x8 slot open end (x8 link), signal from PCH
Slot location 6 PCIe x16 slot (x16 link), signal from CPU, CXL support
Slot location 7 PCIe x8 slot close end (x8 link), signal from CPU

Graphics

VGA Aspeed AST2600
Storage
SATA controller Intel® C741: 8 x SATA 3 (6 Gb/s), support software RAID 0,1,5,10
SAS controller -

Networking

GbE/10GbE LAN 2 x Intel® I210AT / Intel® X710-AT2 (dual 10GbE ports)

Onboard I/O Connector

PSU connector 24-pin SSI power connector + 2 x 8-pin SSI 12 V power connector + 4-pin SSI 12 V power connector
USB connector 4 x USB 2.0 ports (two onboard headers) + 2 x USB 3.2 Gen1 ports (one onboard header) + 1 x Type-A USB 2.0 port
Fan header 6 x 4-pin (5 for system + 1 for CPU)
M.2 1 x M.2 2280/22110 B+M key (SATA and PCIe)
SMBus 1
Chassis Intrusion 1
Front LAN LED 1
Audio Header 1
PS/2 KB/Mouse 1
Serial port header 1

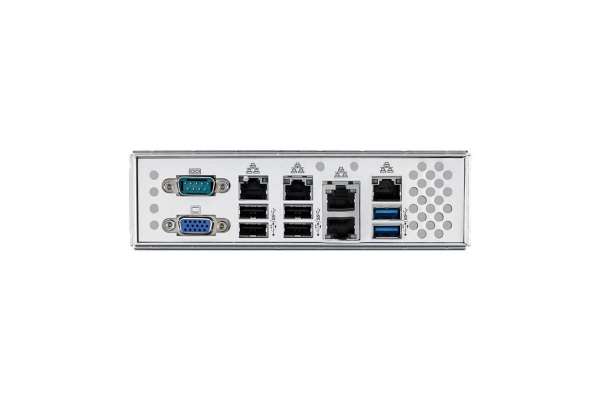

Rear I/O Connector

External serial port 1
External USB port 2x (USB 3.2 Gen1) + 4x USB (2.0)
VGA port 1
RJ-45 5x (1 port dedicated for IPMI function)
PS/2 KB/mouse -

Management Solution

Software -
Out of band remote management Yes

Monitoring

CPU temperature Yes
System Monitoring Yes

Watchdog Timer

Output System reset
Interval Programmable 1 ~ 255 sec/min

Power Requirement

Power On

(225W CPU @1.5GHz 4800 64G*8)

  • 3.3V (1.239A)
  • 5V (1.314A)
  • 5Vsb (0.7A)
  • 12V (0.052A)
  • 12V_8P (20.833A)

Environment

Temperature
  • Operating 0 ~ 60 °C, depends on CPU speed and cooling solution
  • Non-operating -40 ~ 85 °C
Humidity
  • Operating 10% ~ 95%
  • Non-operating 10% ~ 95% (Non condensing)

Physical Characteristics

Dimension (L x H) 304 x 244 mm (12" x 9.6")
