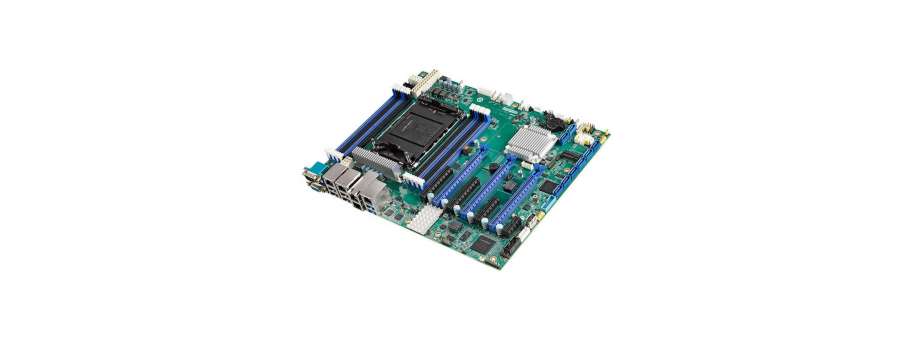

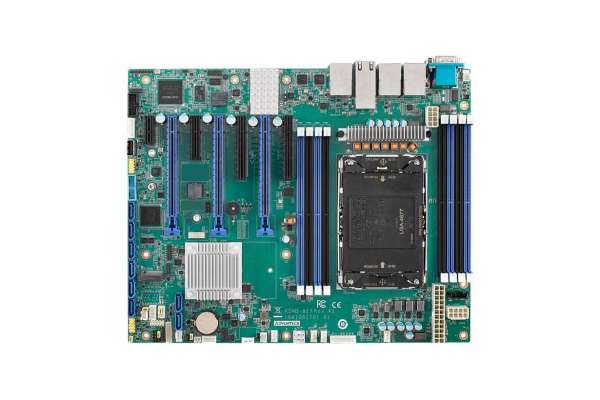

4th Gen Intel® Xeon® Scalable ATX Server Board Advantech with 8x DDR5, 3x PCIe x16, 8x SATA 3, 4x USB 3.2 (Gen1), Dual 10GbE, and IPMI ASMB-817

Price and avalability

Partnumber Description Price VAT incl Avalability
ASMB-817T2-00A1 LGA4677 ATX SMB w/8 SATA/3 PCIe x16/2 10GbE/IPMI  73 944,3
ASMB-817I-00A1 LGA4677 ATX SMB w/8 SATA/3 PCIe x16/IPMI  63 022,1
  • LGA4677 ATX server board with 4th Gen. Intel Xeon® Scalable processor
  • DDR5 4400/4800 MHz RDIMM up to 2TB (8 DIMMs) supports Intel® Optane™ Persistent Memory
  • Features 3x PCIe x16, 2x PCIe x8, 1x PCIe x4, and 1x PCIe x1
  • Intel® X710 dual 10GbE ports
  • Eight SATA 3 and one M.2 connectors (SATA/PCIe compatible)
  • 0 ~ 60 °C ambient operating temperature range

Additional information

Form Factor

ATX form factor

Processor System

Socket Intel LGA4677 (Socket E)
CPU type 4th Gen Intel Xeon Scalable processors (CPU cooler should be purchased separately*)

Core Logic

Chipset Intel C741 chipset

Memory

Total slots 8x (1 DIMM per channel)
Capacity Maximum 2TB ECC RDIMM
Memory type DDR5 ECC-REG 4400/4800 MHz RDIMM, supports Intel® Optane™ Persistent Memory
Memory size 16GB, 32GB, 64GB, 128GB, 256GB

Expansion Slots

Total PCI/PCI-X/PCIe slots 7
Slot location 1 PCIe x1 slot (x1 link), signal from PCH
Slot location 2 PCIe x16 slot (x16 link), signal from CPU, CXL support
Slot location 3 PCIe x4 slot (x4 link), signal from CPU
Slot location 4 PCIe x16 slot (x16 link), signal from CPU, CXL support
Slot location 5 PCIe x8 slot open end (x8 link), signal from PCH
Slot location 6 PCIe x16 slot (x16 link), signal from CPU, CXL support
Slot location 7 PCIe x8 slot close end (x8 link), signal from CPU

Graphics

VGA Aspeed AST2600
Storage
SATA controller Intel® C741: 8 x SATA 3 (6 Gb/s), support software RAID 0,1,5,10
SAS controller -

Networking

GbE/10GbE LAN 2 x Intel® I210AT / Intel® X710-AT2 (dual 10GbE ports)

Onboard I/O Connector

PSU connector 24-pin SSI power connector + 2 x 8-pin SSI 12 V power connector + 4-pin SSI 12 V power connector
USB connector 4 x USB 2.0 ports (two onboard headers) + 2 x USB 3.2 Gen1 ports (one onboard header) + 1 x Type-A USB 2.0 port
Fan header 6 x 4-pin (5 for system + 1 for CPU)
M.2 1 x M.2 2280/22110 B+M key (SATA and PCIe)
SMBus 1
Chassis Intrusion 1
Front LAN LED 1
Audio Header 1
PS/2 KB/Mouse 1
Serial port header 1

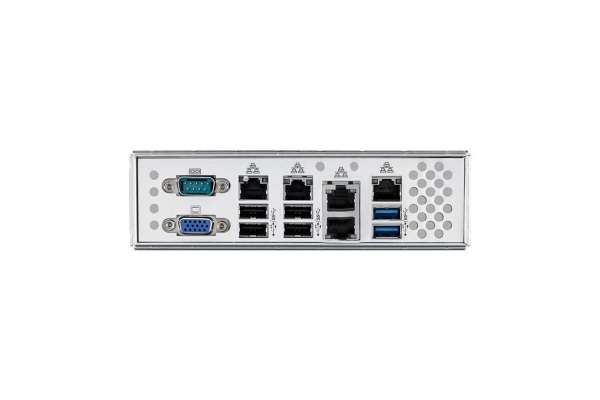

Rear I/O Connector

External serial port 1
External USB port 2x (USB 3.2 Gen1) + 4x USB (2.0)
VGA port 1
RJ-45 5x (1 port dedicated for IPMI function)
PS/2 KB/mouse -

Management Solution

Software -
Out of band remote management Yes

Monitoring

CPU temperature Yes
System Monitoring Yes

Watchdog Timer

Output System reset
Interval Programmable 1 ~ 255 sec/min

Power Requirement

Power On

(225W CPU @1.5GHz 4800 64G*8)

  • 3.3V (1.239A)
  • 5V (1.314A)
  • 5Vsb (0.7A)
  • 12V (0.052A)
  • 12V_8P (20.833A)

Environment

Temperature
  • Operating 0 ~ 60 °C, depends on CPU speed and cooling solution
  • Non-operating -40 ~ 85 °C
Humidity
  • Operating 10% ~ 95%
  • Non-operating 10% ~ 95% (Non condensing)

Physical Characteristics

Dimension (L x H) 304 x 244 mm (12" x 9.6")
