Model
|
R11
|
R11L
|
Rugged Specs
|
|
|
MIL-STD-810G Certified |

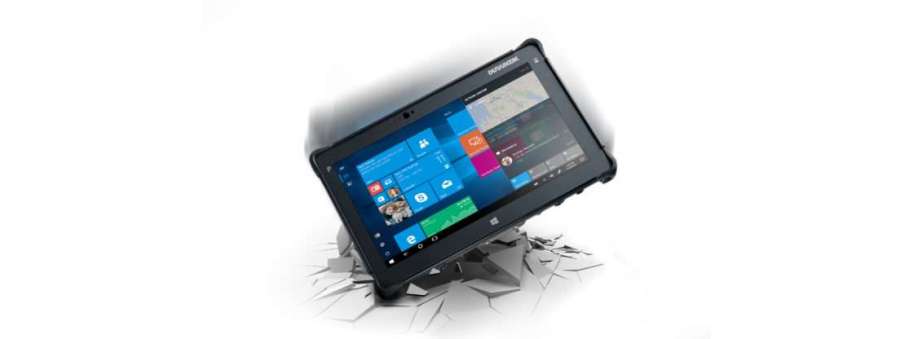

4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity) |
4′ drop 26 faces, drop, shock, vibration, altitude, freeze/thaw, high/low temperature, temperature shock, humidity) |
Electromagnetic |
MIL STD-461F |
MIL STD-461F |
Water and Dust Resistant |
IP65 |
IP65 |
Hazardous Environment |
ANSI C1D2 12.12.01 |
ANSI C1D2 12.12.01 |
Tech Specs
|
|
|
Display |
11.6″ FHD (1920 x1080)

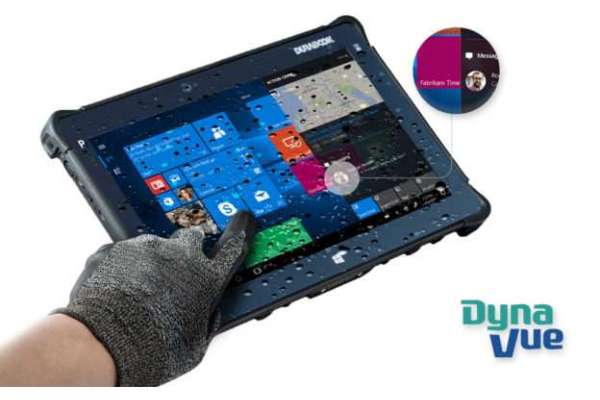

Optional 500 nits DynaVue® sunlight readable display with capacitive multi-touch screen
|
11.6″ FHD (1920 x1080)
Optional 500 nits DynaVue® sunlight readable display with capacitive multi-touch screen
|
Operating System |
Windows® 10 Pro |
Windows® 10 Pro |
Processors |
Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz up to 4.2GHz processor, 8MB cache
Intel® Core™ i7-8550U (8th Gen) 1.8GHz up to 4.0GHz processor, 8MB cache
Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz up to 3.6GHz processor, 6MB cache
Intel® Core™ i5-8250U (8th Gen) 1.6GHz up to 3.4GHz processor, 6MB cache |
Intel® Pentium® 4417U 2.3GHz processor, 2MB cache |
Memory |
1 slot 8GB up to 16GB (2400MHz DDR4) |
1 slot 4GB (2133MHz DDR4) |
Storage |
128GB SSD
Optional 256GB/512GB SSD |
64GB SSD |
Graphics |
Intel® UHD Graphics 620 |
Intel® HD Graphics 610 |
Camera |
Front: Integrated 2MP Webcam
Rear: 5.0MP auto-focus rear camera with flashlight |
Front: Integrated 2MP Webcam
Rear: 5.0MP auto-focus rear camera with flashlight |
Audio |
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 1 |
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 1 |
Keyboard & Pointing Device |
6 buttons (1 user-definable) |
6 buttons (1 user-definable) |
I/O Ports |
USB 3.0 (type A) x 2
Audio in/out (combo jack) x 1
microSD card (support microSDXC) x 1

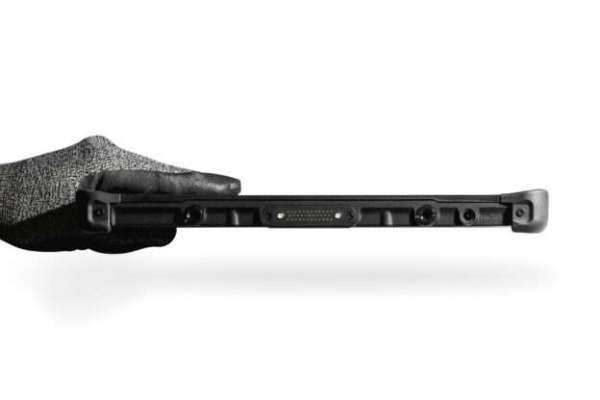

Docking connector (35-pin Pogo) x 1
SIM card slot x 1
DC-In jack x 1
Optional RF antenna pass-through for GPS, WWAN4 |
USB 3.0 (type A) x 2
Audio in/out (combo jack) x 1
microSD card (support microSDXC) x 1
Docking connector (35-pin Pogo) x 1
SIM card slot x 1
DC-In jack x 1
Optional RF antenna pass-through for GPS, WWAN4 |
Expansion Slots |
Optional 1D/2D Barcode Reader
Optional RJ-45 x 1 or Smart Card / CAC Reader or RFID2 |
Optional 1D/2D Barcode Reader
Optional RJ-45 x 1 or Smart Card / CAC Reader or RFID2 |
Wireless & Communications |
Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac)
Bluetooth® V5.0
Optional dedicated GPS module (UBLOX-NEO-M8N)4
Optional 4G LTE multi-carrier mobile broadband4
Optional RF antenna pass-through for GPS, WWAN4 |
Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac)
Bluetooth® V5.0
Optional dedicated GPS module (UBLOX-NEO-M8N)4
Optional 4G LTE multi-carrier mobile broadband4
Optional RF antenna pass-through for GPS, WWAN4 |
Security |
Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington Lock
Optional RFID reader1 |
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington Lock
Optional RFID reader1 |
Power |
AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 11.1V, 3950mAh, 8 hours3
Optional Hi-Cap battery Li-Ion 11.1V, 7800mAh, 16 hours3 |
AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 11.1V, 3950mAh, 8 hours3
Optional Hi-Cap battery Li-Ion 11.1V, 7800mAh, 16 hours3 |
Dimension & Weight |
299 mm (L) x 192 mm (W) x 20 mm (H)
1.2 kg (with 3950mAH battery) |
299 mm (L) x 192 mm (W) x 20 mm (H)
1.2 kg (with 3950mAH battery) |
Warranty |
3-year limited warranty standard |
3-year limited warranty standard |
|
-
Contact your sales representative for feature availability.
-
RJ45, Smart Card reader and RFID are mutually exclusive options.
-
Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
-
WWAN and GPS are mutually exclusive.
|
-
Contact your sales representative for feature availability.
-
RJ45, Smart Card reader and RFID are mutually exclusive options.
-
Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
-
WWAN and GPS are mutually exclusive.
|
