Name: Компактный компьютер SPC-2845
Brand: Vecow
SKU: SPC-2845-4
Price: 24674.1 UAH
Availability: InStock

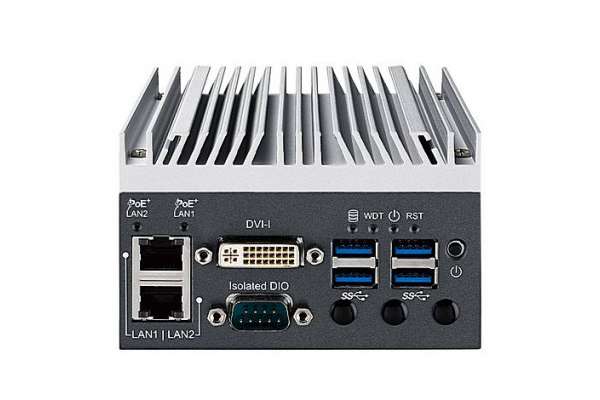

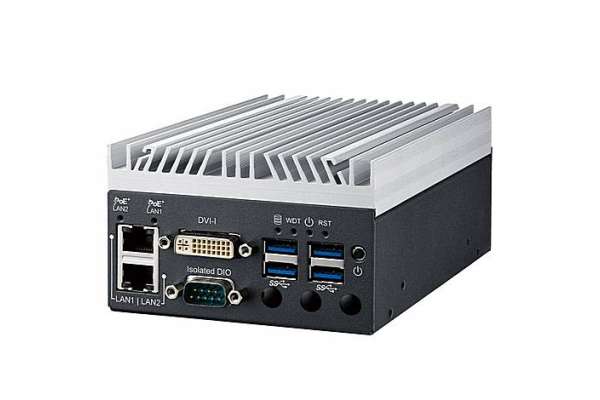

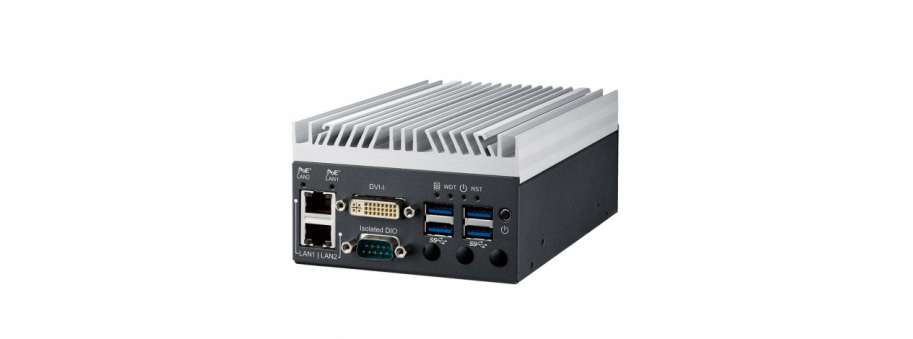

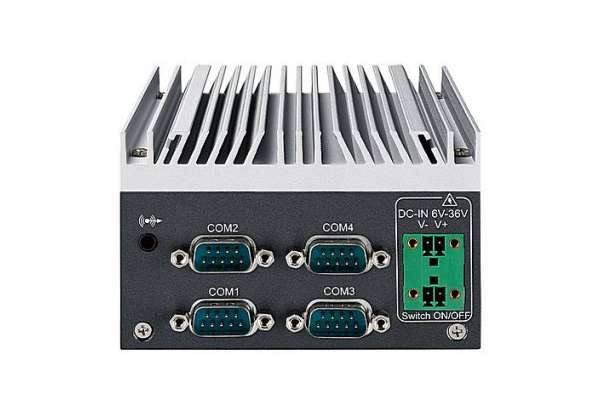

Компактный компьютер SPC-2845

Промышленный встраиваемый компьютер Vecow SPC-2845 на процессоре Intel Atom E3845 QC и оперативной памятью 4 или 8 ГБ

Промышленные компьютеры >> Встраиваемые компактные компьютеры

Промышленный встраиваемый компьютер Vecow SPC-2845 на процессоре Intel Atom E3845 QC и оперативной памятью 4 или 8 ГБ для видеонаблюдения на автомобильном и железнодорожном транспорте

Цены и наличие

Производитель: Vecow

Vecow SPC-2000 Series Ultra-compact Embedded System features with ultra small form factor, multiple I/O onboard, WiFi/3G/4G/UMTS/GPS supported, reliable performance in harsh environments and wide range of power input to make easy implementation possible.

Intel® Atom™ Quad Core E3845 1.91GHz Processor
Rugged, -25°C to 70°C Operating Temperature
Fanless and Ultra-compact
6V to 36V DC Power Input
4 COM (RS-232/422/485) with Auto Flow Control
DVI-I for VGA/DVI/HDMI Video Output
8 Isolated DIO, 4 USB 3.0
2 PoE+ GbE LAN

Vecow SPC-2000 Series Ultra-compact Embedded System is your powerful, fanless, compact and cost effective choice to meet various requirements of Automation, Machine Vision, Surveillance and any Internet of Things (IoT) applications.

Цены и наличие

Код товара	Описание товара	Цена с НДС	Наличие на складе
SPC-2845-4	Компактный компьютер SPC-2845, on board intel Atom Bay Trail Quad Core E3845 Processor, pre-installed with certified DDR3L 4GB RAM.	24 674,1	Доступно
SPC-2845-8	Компактный компьютер SPC-2845, on board intel Atom Bay Trail Quad Core E3845 Processor, pre-installed with certified DDR3L 8GB RAM.	26 371,9
SPC-2145-4	Компактный компьютер SPC-2145, on board intel Atom Bay Trail Quad Core E3845 Processor, pre-installed with certified DDR3L 4GB RAM.	22 127,5
SPC-2145-8	Компактный компьютер SPC-2145, on board intel Atom Bay Trail Quad Core E3845 Processor, pre-installed with certified DDR3L 8GB RAM.	23 825,2

Дополнительная информация

System
Processor	Intel® Atom™ Quad Core E3845 1.91GHz Processor
Chipset	Intel® SoC
Memory	1 DDR3L 1333 SO-DIMM, up to 8GB
Video	1 DVI-I for VGA/ DVI/ HDMI Video Output
Audio	1 Line-out
Software Support	Windows 8, Windows 7, WES7, Linux
I/O Interface
Serial	4 RS-232/ 422/ 485
Ethernet	2 Gigabit LAN by Intel® I210
PoE	2 Gigabit IEEE 802.3at (25.5W/48V) PoE+ ports
USB	4 USB 3.0
DIO	8 Isolated DIO (4 DI, 4 DO)
LED	Power/ HDD/ WTD/ PoE
Mini PCIe	- 1 Mini PCIe Socket (PCIe + USB + SIM card socket) - 1 Mini PCIe Socket (PCIe + USB) optional with mSATA (Jumper Select)
Power Supply
Power Input	- Terminal Block; DC-IN 6V to 36V - 2-pin Remote Power On/Off Switch - Power Button
Adaptor	AC to DC, 60W (Optional)
Storage
SATA HDD	- 1 SATA II Port at 3.0Gbps - 1 Front-access CFast Slot, Push-in/ Push-out Ejector (SPC-2845R) - 1 Front-access SSD/ HDD Tray (SPC-2845RS)
mSATA	1 Mini PCIe socket (PCIe + USB), optional with mSATA
Other
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Mechanical
Dimension (W x L x H)	106mm x 150.4mm x 65.9mm (4.2” x 5.9” x 2.6”)
Weight	1.4 kg (3.1 lb)
Mounting	- Wallmount by mounting bracket - DIN-Rail Mounting Kit (Optional)
Design	- Ultra-compact; 3.5" Form Factor - Top cover Heat Sink; Fanless Design
Environment
Operating Temperature	-25°C to 70°C (-13°F to 157°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, Non-condensing
Shock	- IEC 60068-2-27 - SSD : 50G @ Wallmount, Half sine, 11ms
Vibration	- IEC 60068-2-64 - SSD : 5 Grms @ 5Hz to 500Hz, 3 Axis
EMC	CE, FCC, EN 50155, EN 50121-3-2
