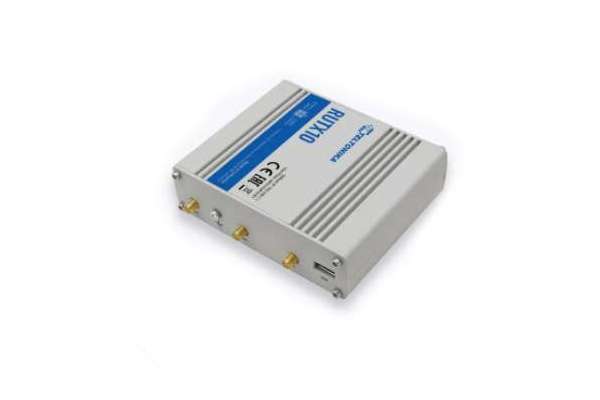

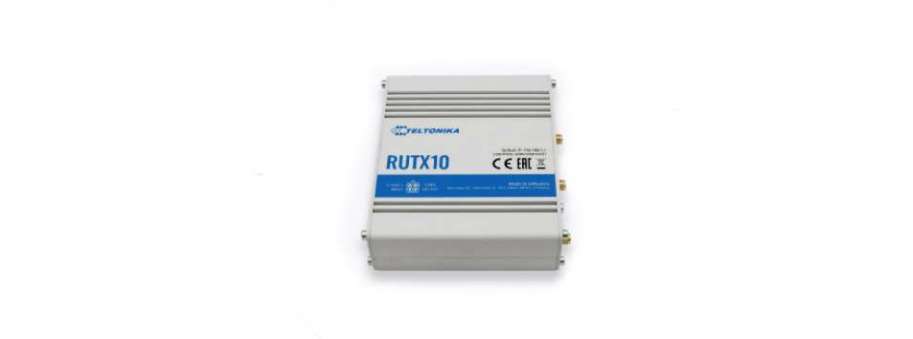

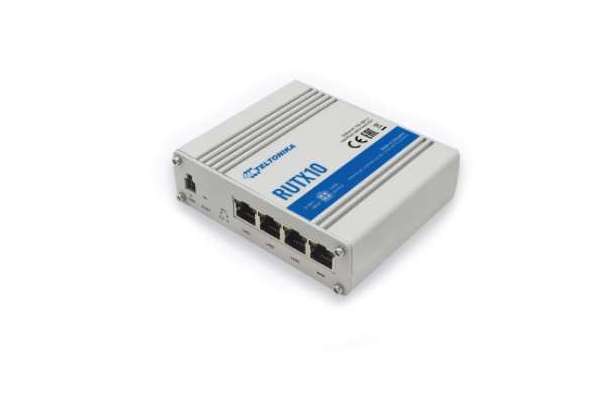

Ethernet-маршрутизатор с 4-х ядерным процессором ARM Cortex A7, 717 МГц Teltonika-RUTX10

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
RUTX10000000 Teltonika RUTX10 - маршрутизатор 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported на 2 SIM, із 4 портами Gigabit Ethernet, GPS, в комплекті антени із кабелем та блок живлення.  9 137,5
Teltonika RMS Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою).  186,6 Доступно
088-00270 Комплект кріплення на DIN-рейку PR5MEC11 (для Teltonika RUT)  210,5
058R-00229 Кабель живлення 4-pin із гвинтовою клемою  559,9 Доступно
PR1KCO28 Зовнішня combo MIMO MOBILE/GNSS/WIFI SMA антена (003R-00253)  3 591,8

Маршрутизатор Teltonika Enterprise нового поколения, оснащенный двухдиапазонным Wi-Fi 5 802.11ac и модулем Bluetooth LE. Идеально подходит для малого офиса или государственного сектора. Высокоскоростное соединение Wi-Fi позволяет компаниям перейти на полностью беспроводные офисные настройки.

RutOS с широкими возможностями настройки - это душа RUTX10, но на самом деле именно синергия между аппаратным и программным обеспечением делает это устройство идеальным помощником в корпоративных решениях.

4-х ядерного процессора ARM Cortex A7 с частотой 717 МГц более чем достаточно для работы VPN, а если того, что мы предлагаем, недостаточно, имеется 256 МБ флэш-памяти для установки дополнительных протоколов.

Инструкция пользователя

Дополнительная информация

ETHERNET

WAN 1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

WIRELESS

Wireless mode 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

BLUETOOTH

Bluetooth 4.0 Bluetooth low energy (LE) for short range communication

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS

Supported >25 service providers, others can be configured manually
Network backup VRRP, Wired and WiFi WAN options, each of which can be used as an automatic Failover
SSHFS (optional) Possibility to mount remote file system via SSH protocol (not available in standard FW)

SECURITY

Authetication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port based and tag based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support

MODBUS

Modbus TCP slave ID range 1-255
Modbus TCP master Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)

SYSTEM CHARACTERISTICS

CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash

USB

Data rate USB 2.0
Applications Samba share, custom scripts (planned)
External devices Possibility to connect external HDD, flash drive, additional modem, printer (planned)
Storage formats FAT, FAT32, NTFS

INPUT/OUTPUT

Input 1x Digital Input
Output 1x Digital Output
Events SMS, Email, RMS

POWER

Connector 4 pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption 9 W Max

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)

Ethernet 4x RJ45 ports, 10/100/1000 Mbps
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 8x LAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs
Power 4 pin DC connector
Antennas 2x RP-SMA for WiFi, 1x RP-SMA for Bluetooth
USB USB A port for external devices
Reset Factory reset button

PHYSICAL SPECIFICATION

Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 32 mm (H x W x D)
Weight 355 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40 °C to 75 °C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
