POE коммутаторы ISW-504 и ISW-514

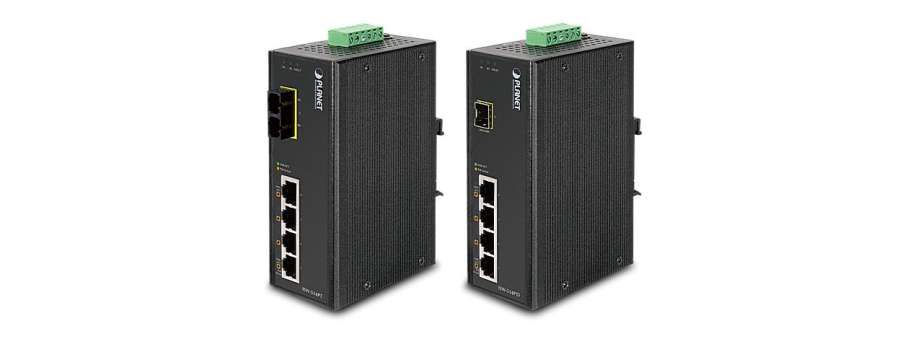

Промышленные POE коммутаторы с web-управлением Planet ISW-504P и ISW-514P на 4 POE порта 10/100 и установкой на DIN рейку

Коммуникации >> Промышленные сетевые решения начального уровня

Производитель: PLANET Technology Corp.

The PLANET ISW-504PT PoE Industrial Ethernet Switch is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and operates reliably in heavy industrial demanding environments. The ISW-504PT provides 5 10/100Mbps copper ports with 4-Port IEEE 802.3af Power over Ethernet inject interfaces delivered in an IP-30 rugged strong case. Supporting up to 15.4Watts power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the ISW-504PT is an ideal solution to deploy surveillance system and wireless service in climatically demanding wide temperature range(-40 to 75 Degree C)environments.

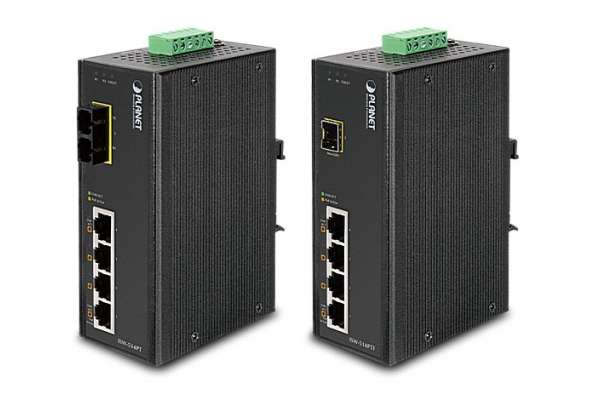

PLANET ISW-514PT PoE Industrial Ethernet Switch is designed to transmit power and data over single Ethernet cable to remote PoE capable devices and operates reliably in heavy industrial demanding environments. The ISW-514PT series provides four 10/100Mbps copper ports supporting IEEE 802.3af Power over Ethernetinjector and one 100Base-FX fiber optic interface delivered in an IP-30 rugged strong case. Supporting up to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the ISW-514PT series is an ideal solution to deploying surveillance system and wireless service in climatically demanding wide temperature range (-40 to 75 Degree C) environments. The 100Base-FX fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network.

  • ISW-504PT - 5-Port 10/100Mbps with 4-Port PoE Industrial Ethernet Switch (-40~75 Degree C)
  • ISW-514PT - 4-Port 10/100Mbps with PoE +1-Port 100FX(MM, SC) Industrial Ethernet Switch - 2km (-40~75 Degree C)
  • ISW-514PT15 - 4-Port 10/100Mbps with PoE +1-Port 100FX(SM, SC) Industrial Ethernet Switch - 15km (-40~75 Degree C)
  • ISW-514PTF - 4-Port 10/100Mbps with PoE +1-Port 100FX(SFP) Industrial Ethernet Switch (-40~75 Degree C)
  • ISW-504PS - 5-Port 10/100Mbps with 4-PoE Industrial Web Smart Switch (-10~60 Degree C)
  • ISW-514PS - 4-Port 10/100Mbps with PoE +1-Port 100FX(MM, SC) Industrial Web Smart Switch - 2km (-10~60 Degree C)
  • ISW-514PS15 - 4-Port 10/100Mbps with PoE +1-Port 100FX(SM, SC) Industrial Web Smart Switch - 15km (-10~60 Degree C)
  • ISW-514PSF - 4-Port 10/100Mbps with PoE +1-Port 100FX(SFP) Industrial Web Smart Switch (-10~60 Degree C)

IEEE 802.3af Power over Ethernet PSE Industrial Switch

PoE feature is more often supported in the industrial Ethernet devices for efficient operation in harsh environments. The ISW-504PT in-line power follows standard IEEE 802.3af and allows giving power to 4 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5 / 5e UTP wire. With Data and Power over Ethernet from one unit, the ISW-504PT shall reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and (power lowering), the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords.Furthermore, there is only 24V DC input in some industrial environments, the ISW-504PT series supports 24V DC or 48V DC dual voltages input and able to provide more wide range of industrial IEEE 802.3af PoE applications.

Wide Temperature conquers installation in harsh environments

The ISW-504PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under wide temperature range from -40 to 75 Degree C, the ISW-504PT can be placed in almost any difficult environment. It also offers dual-redundant, reversible polarity 24V DC or 48V DC power inputs for high availability applications requiring backup power inputs.

Robust Switch performance

The ISW-504PT offers high performance switch architecture with 5 10/100Mbps UTP ports. It provides non-blocking switch fabric, wire-speed throughput as high as 1Gbps and the 2K MAC Address table. It also performs wire-speed packets transfer without risk of packet loss and the Flow Control function is default enabled to provide fast and reliable data transfer.
All of the RJ-45 copper interfaces support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 3, 4, 5, 5e or 6 cable. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Интерфейс:

  • 8-портов 10/100/1000Base-T RJ-45 с поддержкой IEEE 802.3af PoE
  • 2 100/1000Base-X mini-GBIC/SFP слота

Power over Ethernet:

  • IEEE 802.3af Power over Ethernet End-Span PSE
  • Подключение до 8 IEEE 802.3af устройств

Физические и электрические характеристики:

  • IP30 Алюминиевый корпус
  • Установка на DIN рейку или на стену
  • Питание 48V DC с резервированием и защитой от смены полярности
  • EFT защита 6000 VDC
  • 6000 VDC защита Ethernet
  • Рабочая температура от -40 до 75

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
ISW-504PS Промышленный Web/Smart коммутатор на DIN рейку в корпусе IP30 5-Port/TP Web/Smart POE Industrial Fast Ethernet Switch (-10 to 60 C)  6 504,6
ISW-504PT Промышленный неуправляемый коммутатор на DIN рейку в корпусе IP30 5-Port/TP POE Industrial Fast Ethernet Switch (-40 to 75 C)  6 911,7
ISW-514PSF Промышленный Web/Smart коммутатор на DIN рейку в корпусе IP30 4-Port/TP+1-Port Fiber(SFP) Web/Smart POE Industrial Fast Ethernet Switch (-10 to 60 C)  7 238,6
ISW-514PTF Промышленный неуправляемый коммутатор на DIN рейку в корпусе IP30 4-Port/TP + 1-Port Fiber(SFP) POE Industrial Fast Ethernet Switch (-40 to 75 C)  6 989,0

Дополнительная информация

Hardware Specification

10/100Base-TX Ports

5

IEEE 802.3af PoE ports

4

Dimension (D x W x H)

135 x 87.8 x 56 mm

Weight

842g

Power LED

Power1, Power2 and Fault
Port 1~4: PoE in-use, LNK / ACT
Port 5: LNK / ACT

Power Requirement

24 or 48 VDC input
Redundant power with polarity reverse protection function

Installation

DIN Rail kit and Wall Mount ear

Alarm

Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA . Max. 15.4 Watts

Power Pin Assignment

1/2(+), 3/6(-)

Switch Specification

Switch Processing Scheme

Store-and-Forward

Address Table

2K entries

Flow Control

Back Pressure for Half Duplex
IEEE 802.3x Pause Frame for Full Duplex

Switch fabric

1Gbps

Throughput (packet per second)

0.74Mpps@64bytes

Network cables

10/100Base-TX:
Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max.)
EIA/TIA-568 100-ohm STP (100meters, max.)

Regulation Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Standard Compliance

IEEE 802.3:Ethernet
IEEE 802.3u:Fast Ethernet
IEEE 802.3x:Flow Control
IEEE 802.3af:Power over Ethernet

Environment

Temperature

Operating: -40~75 Degree C
Storage: -40~85 Degree C

Humidity

Operating: 5~90%, Storage: 5~90% (Non-condensing)
