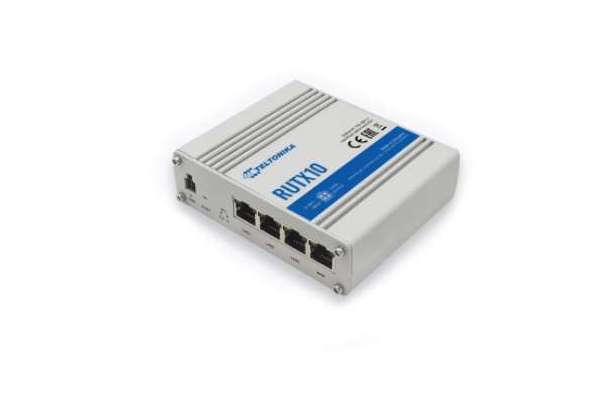

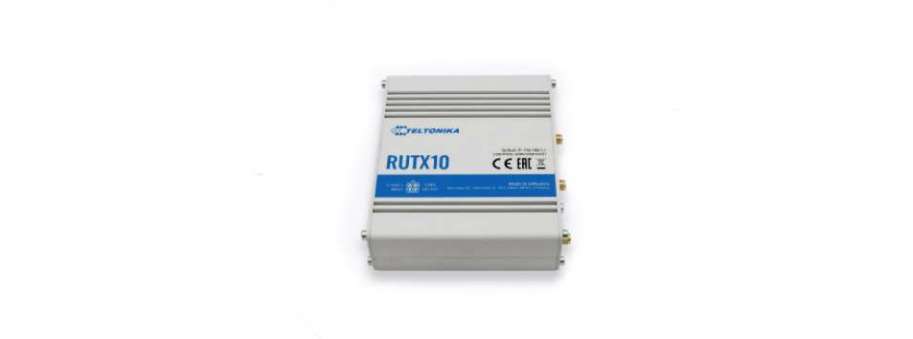

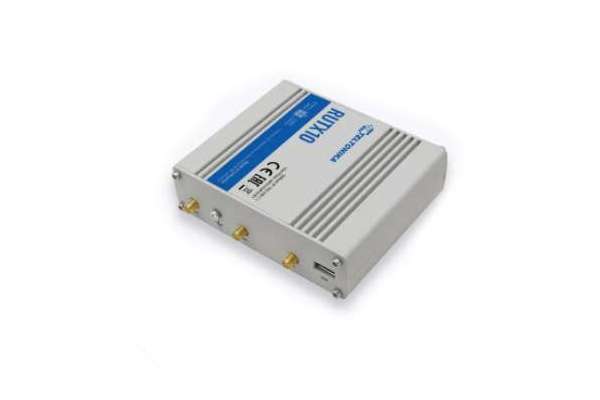

Ethernet router with Quad core ARM Cortex A7 CPU, 717 MHz Teltonika RUTX10
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| RUTX10000000 | Teltonika RUTX10 - маршрутизатор 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported на 2 SIM, із 4 портами Gigabit Ethernet, GPS, в комплекті антени із кабелем та блок живлення. | 8 448,3 | |
| Teltonika RMS | Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою). | 177,9 | Доступно |
| 088-00270 | Комплект кріплення на DIN-рейку PR5MEC11 (для Teltonika RUT) | 200,7 | |
| 058R-00229 | Кабель живлення 4-pin із гвинтовою клемою | 533,8 | Доступно |
| PR1KCO28 | Зовнішня combo MIMO MOBILE/GNSS/WIFI SMA антена (003R-00253) | 2 361,6 |
Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings.
Highly customizable RutOS is at the soul of RUTX10, but it’s actually synergy between hardware and software that makes this device perfect performer in enterprise solutions. Quad Core ARM Cortex A7 717 MHz CPU is more than enough for VPN functionality and if what we offer is not enough there is 256 MBytes Flash memory to install additional protocols.
Additional information
ETHERNET |
|
| WAN | 1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
WIRELESS |
|
| Wireless mode | 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| WiFi security | WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ESSID | ESSID stealth mode |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
BLUETOOTH |
|
| Bluetooth 4.0 | Bluetooth low energy (LE) for short range communication |
NETWORK |
|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS |
Supported >25 service providers, others can be configured manually |
| Network backup | VRRP, Wired and WiFi WAN options, each of which can be used as an automatic Failover |
| SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
SECURITY |
|
| Authetication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port based and tag based VLAN separation |
| WEB filter | Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN |
|
| OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server instances can run simultaneously |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs |
| SSTP | SSTP client instance support |
MODBUS |
|
| Modbus TCP slave | ID range 1-255 |
| Modbus TCP master | Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped) |
SYSTEM CHARACTERISTICS |
|
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH memory | 256 MB SPI Flash |
USB |
|
| Data rate | USB 2.0 |
| Applications | Samba share, custom scripts (planned) |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer (planned) |
| Storage formats | FAT, FAT32, NTFS |
INPUT/OUTPUT |
|
| Input | 1x Digital Input |
| Output | 1x Digital Output |
| Events | SMS, Email, RMS |
POWER |
|
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards |
| Power consumption | 9 W Max |
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS) |
|
| Ethernet | 4x RJ45 ports, 10/100/1000 Mbps |
| I/Os | 1 Digital Input, 1 Digital Output on 4 pin power connector |
| Status LEDs | 8x LAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs |
| Power | 4 pin DC connector |
| Antennas | 2x RP-SMA for WiFi, 1x RP-SMA for Bluetooth |
| USB | USB A port for external devices |
| Reset | Factory reset button |
PHYSICAL SPECIFICATION |
|
| Casing material | Full aluminium housing |
| Dimensions | 115 mm x 95 mm x 32 mm (H x W x D) |
| Weight | 355 g |
| Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
OPERATING ENVIRONMENT |
|
| Operating temperature | -40 C to 75 C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
