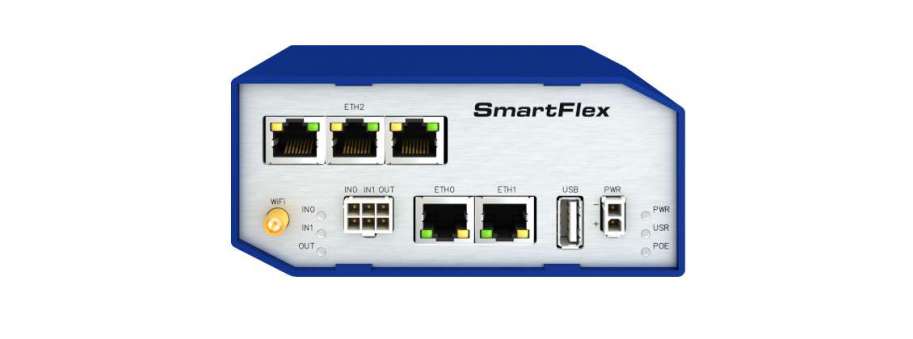

Industrial router SmartFlex SR300

Industrial router SmartFlex SR300 with 2 Ethernet 10/100 interfaces, 1 USB 2.0 and IPSec, OpenVPN, L2TP

Networks and Communications >> Industrial Firewall System

 Price and avalability

Manufacturer: Advantech Co., Ltd.

LAN Industrial router SmartFlex SR300 is an ideal device for the realization of a secure connection of two local area networks (LANs). Interconnection is carried out using two ETH-ERNET 10/100 interfaces and secure tunnel (IPSec, OpenVPN, L2TP).
The other equally important ways to use this router is to connect any device with RS232, RS485 or I/O interface to the local network (LAN). For this purpose, SmartFlex SR300 is equipped with two ETHERNET 10/100 ports and other interfaces based on the version of the router chosen by the user. As a standard, this router is equipped with two ETHERNET 10/100 ports, one USB 2.0

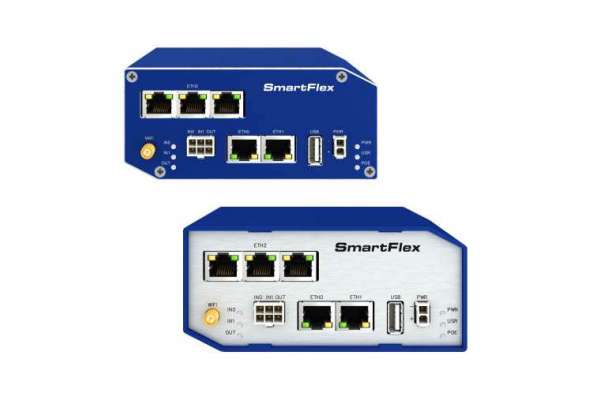

Host port, two binary inputs and one output (I/O connector). An integral part of the router is also a memory card reader placed on the rear panel. This reader allows SmartFlex SR300 to operate with microSD cards and increase storage space of the router up to 64 GB (32 GB in case of SDHC cards). The router can be equipped with WiFi module on customer’s request, however it is not possible to order it and add to the router later. The router can be equipped with PoE PD (Power over Ethernet – powered device) to power the router via Ethernet, or PoE PSE (power source equipment) to power other devices by the router. Richer range of interfaces is available in versions containing three switched Ethernets. SmartFlex SR300 is supplied either in a plastic or metal casing, based on the requirements of the customer.

Price and avalability

Partnumber Description Price VAT incl Avalability
BB-SR30010120 Мережевий пристрій/Перетворювач інтерфейсів 5xETH, USB, 2xBI/BO, SD Holder, WiFi, Metal  15 741,5

Additional information



SR300
General



CPU

2 DMIPS per MHz

Flash memory

256 MB

RAM

512 MB

M-RAM

128 kB

Temperature range


Cold start -40 ◦C
Function -40 ◦C to +80 ◦C
Storage -40 ◦C to +85 ◦C
Humidity
Operating 0 to 95 % relative humidity non condensing
Storage 0 to 95 % relative humidity non condensing
Altitude
Operating 2000 m / 70 kPa
Degree of protection IP30
Supply voltage 10 to 60 V DC
Consumption
Idle/ Average/ Peak/ Sleep mode. 2 W / 3.3 W/ 4.5 W / 10 mW
Dimensions 55 x 97 x 125 mm (DIN 35 mm, EN 60715)
Weight
Plastic box/ Metal box approximately 211 g (depends on interface) / approximately 327 g (depends on interface)
User interface
ETH 2 Ethernet (10/100 Mbps)
USB USB 2.0
I/O 6-pin panel socket
Micro SD SDHC, SDXC
Antenna connectors Reverse SMA – 50 Ω (only for versions with WiFi module)
Certificates
Radio ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1
EMC ETSI EN 301 489-1 V1.9.2, ETSI EN 301 489-1 V2.1.1, ETSI EN 301 489-17 V3.1.1
Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 + AC:2011, EN 62311:2008 UL C1D2 and ATEX: UL 60950-1, 2nd ed. + am1 + am2 * CAN/CSA C22.2 No. 60950-1-07, 2nd ed. + am1 + am2 * UL E486108 * ATEX II 3 G Ex nA IIC T4 Gc, DEMKO 16 ATEX 1801X ( * Excluding versions with PoE PSE.)
