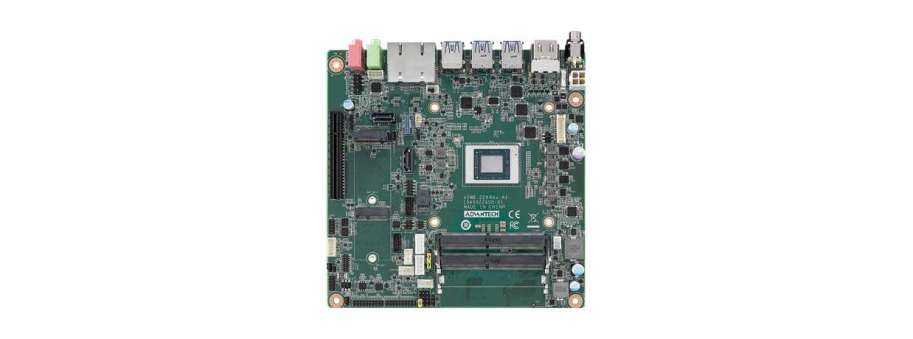

Mini-ITX Advantech c 2 x HDMI, 2 x DP(Type-C), 8 x USB, 6 x COM, и входным напряжением 12V AIMB-229

Цены и наличие

Код товара Описание товара Цена с НДС Наличие на складе
AIMB-229VG2-00A1E miniITX V2748 2HDMI/2DP/8USB/6COM/2Gb/2M.2  39 957,0
AIMB-229VG2-02A1E miniITX V2718 2HDMI/2DP/8USB/6COM/2Gb/2M.2  36 921,4

AMD V-серии mini-ITX с 2HDMI / 2DP / 8USB / 6COM / 2Gb / 2M.2

  • Поддерживает процессор AMD V2000
  • Два 260-контактных SO-DIMM до 64 ГБ DDR4 3200 SDRAM
  • Поддерживает несколько дисплеев, максимум 4
  • Поддерживает 1 PCIe x8, 1 слот E-Key 2230 M.2, 1 слот M-Key 2242/3043/2280 M.2
  • 6COM, 3 USB3.2 Gen2, 3 USB3.2 Gen1, 2 USB2.0, 2 SATA, 16 бит GPIO
  • Поддерживает SUSI, WISE-DeviceOn и Edge AI Suite

Система процессора

SOC (7nm V2748 V2718 V2516
Max. Speed 4.15Ghz (8 Core 54W) 4.15Ghz (8 Core 25W) 3.95Ghz (6 Core 25W)
L2 Cache 4Mb 4Mb 4Mb
BIOS AMI 128Mbit SPI

Дополнительная информация

Expansion Slot

M.2 1 M-Key (support 2242/3042/2280), 1 E-Key (support 2230)
PCIe 1 PCIe x8

Memory

Technology Dual Channel DDR4 3200MHz SDRAM
Max. Capacity 64 GB/ 32 GB per SO-DIMM
Socket 2 x 260-pin DDR4 SO-SIMM with ECC Support

Graphics

Controller AMD Integrated Vega GCN
eDP 1, resolution up to 5120x2880@60Hz Max (Optional)
Display Port 2, Supports DP++(via USB Type-C), resolution up to 4096 x 2160 @ 60Hz
HDMI 2, resolution up to 4096x2160@60Hz (HDMI2.0 supported by SKU)
Multi Display
  • HDMI/HDMI/DP/DP
  • eDP/HDMI/DP/DP

Ethernet

Interface 10/100/1000 Mbps
Controller
  • GbE LAN1: Realtek 8111H
  • GbE LAN2: Realtek 8111H
Connector RJ-45 x 2

SATA

Max Data Transfer Rate 600 MB/s
Channel 2, SATA III

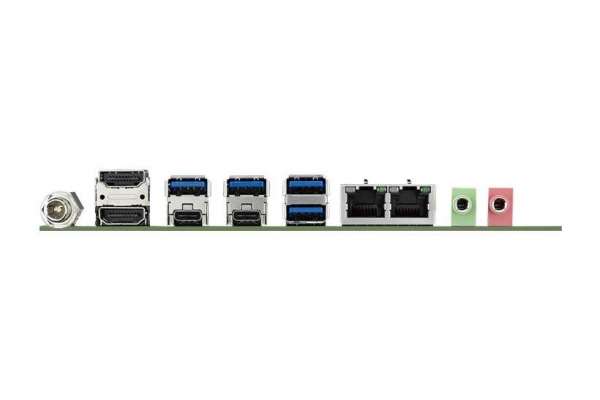

Rear I/O

DP++ Type-C 2
Ethernet 2
HDMI 2
USB 3 x USB3.2 Gen2/3 x USB3.2 Gen1
Audio 2 (Line out + Mic/Line in)
DC jack 1 (2.5 mm)

Internal Connector

eDP (Optional) 1
USB 2 x USB2.0
Serial

6,

  • COM1: support RS-232 with 5V/12V/Ring
  • COM2: support RS-232/422/485 supports 9 bit data/auto flow(select by Jumper)
  • COM3: Colay Cctalk(5/12V; Jumper select) ; singnal mix with RS232
  • COM4: support 5V/12V selection(by jumper);
  • Colay TTL (5V, TX, RX only) ; singnal mix with RS232
  • COM5: support RS-232/422/485 supports 9 bit data/auto flow(select by Jumper)
  • COM6: RS-232
SATA 2
SATA PWR Connector 2
PS/2 KB & MS 1
Intrusion Protection 1
GPIO 16 bit

Watchdog Timer

Output System reset
Interval Programmable 1 ~ 255 sec/min

Power

Power Type 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2x2) power connector; Supports AT/ATX mode
Typical Power Consumption TBD

Environment (Temperature)

Operating 0 ~ 60 °C (32 ~ 140 °F)
Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Physical Characteristics

Dimensions 170 mm x 170 mm (6.69" x 6.69")
