Mini-ITX with 2 x HDMI, 2 x DP(Type-C), 8 x USB, 6 x COM, and 12V DC-In Advantech AIMB-229

Price and avalability

Partnumber Description Price VAT incl Avalability
AIMB-229VG2-00A1E miniITX V2748 2HDMI/2DP/8USB/6COM/2Gb/2M.2  59 196,2
AIMB-229VG2-02A1E miniITX V2718 2HDMI/2DP/8USB/6COM/2Gb/2M.2  57 163,8
AIMB-229VG2-03A1E miniITX V2516 2HDMI/2DP/8USB/6COM/2Gb/2M.2  43 961,2

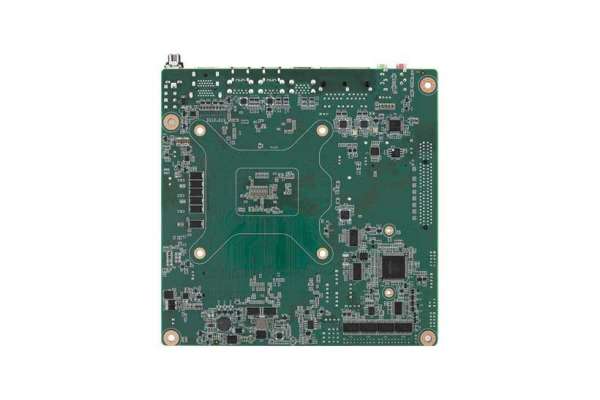

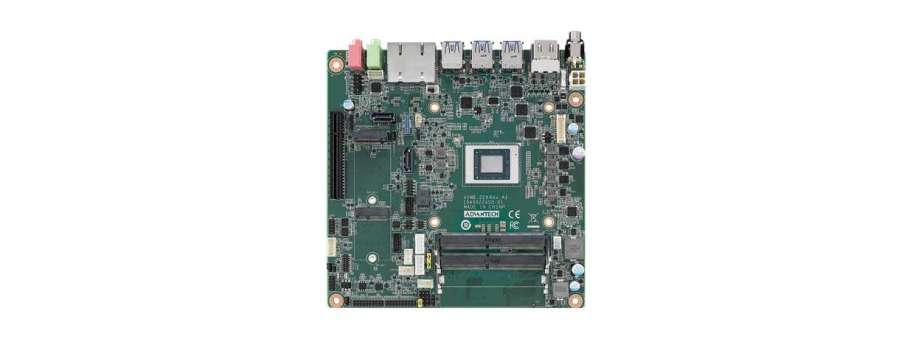

AMD V-series mini-ITX with 2HDMI/2DP/8USB/6COM/2Gb/2M.2

  • Support AMD V2000 processor
  • Two 260-pin SO-DIMM up to 64GB DDR4 3200 SDRAM
  • Support multi display, Max up to 4 displays
  • Supports 1 PCIe x8, 1 E-Key 2230 M.2 slot, 1 M-Key 2242/3043/2280 M.2 slot
  • 6COM, 3 USB3.2 Gen2, 3 USB3.2 Gen1, 2 USB2.0, 2 SATA, 16bit GPIO
  • Support SUSI, WISE-DeviceOn and Edge AI Suite

Processor System

SOC (7nm V2748 V2718 V2516
Max. Speed 4.15Ghz (8 Core 54W) 4.15Ghz (8 Core 25W) 3.95Ghz (6 Core 25W)
L2 Cache 4Mb 4Mb 4Mb
BIOS AMI 128Mbit SPI

Additional information

Expansion Slot

M.2 1 M-Key (support 2242/3042/2280), 1 E-Key (support 2230)
PCIe 1 PCIe x8

Memory

Technology Dual Channel DDR4 3200MHz SDRAM
Max. Capacity 64 GB/ 32 GB per SO-DIMM
Socket 2 x 260-pin DDR4 SO-SIMM with ECC Support

Graphics

Controller AMD Integrated Vega GCN
eDP 1, resolution up to 5120x2880@60Hz Max (Optional)
Display Port 2, Supports DP++(via USB Type-C), resolution up to 4096 x 2160 @ 60Hz
HDMI 2, resolution up to 4096x2160@60Hz (HDMI2.0 supported by SKU)
Multi Display
  • HDMI/HDMI/DP/DP
  • eDP/HDMI/DP/DP

Ethernet

Interface 10/100/1000 Mbps
Controller
  • GbE LAN1: Realtek 8111H
  • GbE LAN2: Realtek 8111H
Connector RJ-45 x 2

SATA

Max Data Transfer Rate 600 MB/s
Channel 2, SATA III

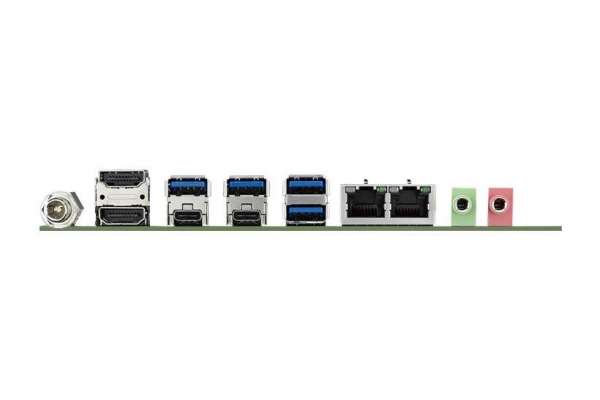

Rear I/O

DP++ Type-C 2
Ethernet 2
HDMI 2
USB 3 x USB3.2 Gen2/3 x USB3.2 Gen1
Audio 2 (Line out + Mic/Line in)
DC jack 1 (2.5 mm)

Internal Connector

eDP (Optional) 1
USB 2 x USB2.0
Serial

6,

  • COM1: support RS-232 with 5V/12V/Ring
  • COM2: support RS-232/422/485 supports 9 bit data/auto flow(select by Jumper)
  • COM3: Colay Cctalk(5/12V; Jumper select) ; singnal mix with RS232
  • COM4: support 5V/12V selection(by jumper);
  • Colay TTL (5V, TX, RX only) ; singnal mix with RS232
  • COM5: support RS-232/422/485 supports 9 bit data/auto flow(select by Jumper)
  • COM6: RS-232
SATA 2
SATA PWR Connector 2
PS/2 KB & MS 1
Intrusion Protection 1
GPIO 16 bit

Watchdog Timer

Output System reset
Interval Programmable 1 ~ 255 sec/min

Power

Power Type 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2x2) power connector; Supports AT/ATX mode
Typical Power Consumption TBD

Environment (Temperature)

Operating 0 ~ 60 °C (32 ~ 140 °F)
Non-Operating -40 ~ 85 °C (-40 ~ 185 °F)

Physical Characteristics

Dimensions 170 mm x 170 mm (6.69" x 6.69")
