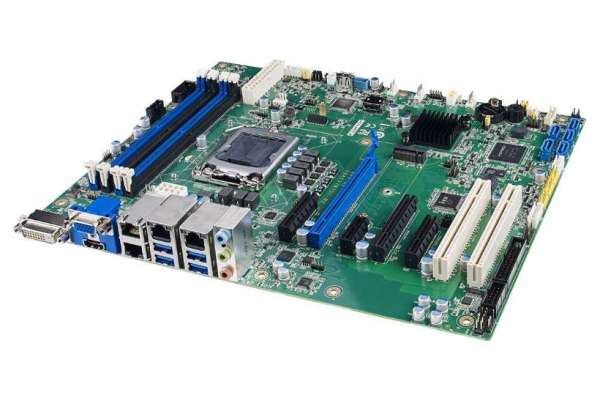

Serverboard ASMB-787

LGA 1200 Intel® Xeon® W & 10th Gen. Core™ ATX Server Board ASMB-787 by Advantech with 4 x DDR4, 5 x PCIe, 2 x PCI, 4 x USB 3.2, 5 x SATA 3 ASMB-787

System Components >> Industrial motherboards

 Price and avalability

Manufacturer: Advantech Co., Ltd.

  • LGA 1200 Intel® Xeon® W & 10th Gen. Core™ i9/i7/i5/i3 processors with W480E chipset
  • DDR4 2933/2666/2400 MHz ECC/Non-ECC UDIMM up to 128 GB
  • One PCIe x16 link (or two x8 link), two PCIe x4, and one PCIe x1 slots
  • Triple displays - DVI-D, VGA, and HDMI 2.0 ports
  • Five SATA 3 ports and four x USB 3.2 ports
  • One M.2 2280/2242 (SATA / PCIe compatible)
  • Rackmount optimized placement with positive air flow design
  • 0 ~ 60 °C (32 ~ 140 °F) ambient operating temperature range

Price and avalability

Partnumber Description Price VAT incl Avalability
ASMB-787G2-00A1 Промислова серверна материнська плата Advantech ASMB-787G2, LGA 1200 ATX Server Board W480E GbEx2  17 874,0

Additional information

Specifications


Form Factor ATX form factor

Processor System





Socket  Intel® LGA 1200
CPU type Intel® Xeon® W-1270x/W-1290x and 10th Generation Core™ i3/i5/i7/i9 series (TDP up to 125W)

Core Logic


Chipset Intel W480E chipset

Memory


Total slots 4 x (Dual Channel)
Max. capacity 128 GB
Memory type DDR4 ECC/Non-ECC 2933/2666/2400 MHz UDIMM (288-pin)*
Memory size 4 GB, 8 GB, 16 GB, 32GB

Expansion Slots



Total PCI/PCIe slots 7
Slot location 1 PCI slot
Slot location 2 PCI slot
Slot location 3 PCIe x4 slot (Gen3 x4 link)
Slot location 4 PCIe x8 slot (Gen3 x8 link)
Slot location 5 PCIe x1
Slot location 6 PCIe x16 slot (Gen3 x8 or x16 link)
Slot location 7 PCIe x4 slot (Gen3 x4 link)

Graphics


Controller Intel® HD Graphics**
VRAM 1 GB maximum shared memory with 2 GB and above system memory installed

Storage


SATA controller Intel® W480E: 8 SATA 3 6 Gb/s ports with Intel Rapid Storage Technology support (for Windows only) (Supports software RAID 0, 1, 10 & 5)
SAS controller

Networking


Interface 10/100/1000 Mbps
Controller GbE LAN1: Intel® I219; GbE LAN 2~4: Intel I210-AT
Connector RJ-45 x 2 for G2 version; RJ-45 x 4 for G4 version

Onboard I/O Connector


Printer Port connector 1
PSU connector 24-pin SSI power connector + 8-pin SSI 12V power connector
USB connector 1 x USB 3.2 Gen 1 (2 ports), 3 x USB 2.0 (6 ports), 1 x USB Type-A
M.2 connector 1 x M.2 2280/2242 (PCIe/SATA)
Fan header 5 x (4-pin)
SMBus 1
Chassis intruder 1
Front LAN LED 2
Serial port header 2 x (RS-232)
Audio connector 1 x (ALC 892)
PS/2 KB/Mouse 1 x (Optional PS/2 KB/Mouse cable and bracket required)

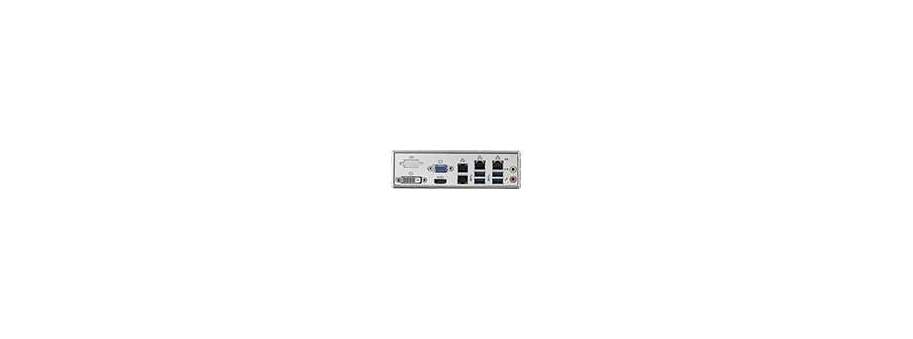

Rear I/O Connector


External serial port - (via COM cable in the package)
External USB port 4 x (USB 3.2 Gen 2)
VGA port 1 x (Resolution up to 1920 x 1200 @ 60 Hz)
DVI port 1 x (Resolution up to 1920 x 1200 @ 60 Hz)
HDMI port 1 x (Resolution up to 4096 x 2160 @ 60 Hz)
RJ-45 2 x for G2 version; 4 for G4 version
Audio connector 2 x (Mic-in, Line-out)
PS/2 KB/Mouse -

Watchdog Timer


Output System reset
Interva Programmable 1 ~ 255 sec

Power Requirement


Power On 3.3 V  / 5 V     / 12 V  / 12V_8P  /  5 VSB / -12 V
(Xeon W-1290E 3.5GHz DDR4 2666 32G*4) 1.69A / 1.68A / 0.31A 9.25A0.1A     /0.01A

Environment


Temperature Operating; 0 ~ 60° C, depends on CPU speed and cooler solution  / Non-operating -40 ~ 85° C
Humidity Operating 0% ~ 95% /  Non-operating 5% ~ 95% (Non condensing)

Physical Characteristics


Dimensions 304.8 x 244 mm (12 x 9.6 in)
