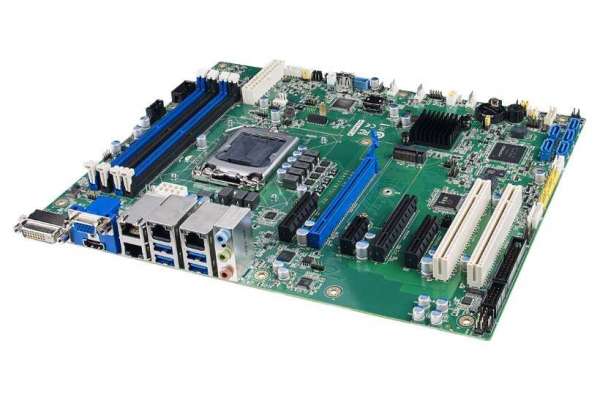

Specifications
|
|
Form Factor |
ATX form factor |
Processor System
|
|
Socket |
Intel® LGA 1200 |
CPU type |
Intel® Xeon® W-1270x/W-1290x and 10th Generation Core™ i3/i5/i7/i9 series (TDP up to 125W) |
Core Logic
|
|
Chipset |
Intel W480E chipset |
Memory
|
|
Total slots |
4 x (Dual Channel) |
Max. capacity |
128 GB |
Memory type |
DDR4 ECC/Non-ECC 2933/2666/2400 MHz UDIMM (288-pin)* |
Memory size |
4 GB, 8 GB, 16 GB, 32GB |
Expansion Slots
|
|
Total PCI/PCIe slots |
7 |
Slot location 1 |
PCI slot |
Slot location 2 |
PCI slot |
Slot location 3 |
PCIe x4 slot (Gen3 x4 link) |
Slot location 4 |
PCIe x8 slot (Gen3 x8 link) |
Slot location 5 |
PCIe x1 |
Slot location 6 |
PCIe x16 slot (Gen3 x8 or x16 link) |
Slot location 7 |
PCIe x4 slot (Gen3 x4 link) |
Graphics
|
|
Controller |
Intel® HD Graphics** |
VRAM |
1 GB maximum shared memory with 2 GB and above system memory installed |
Storage
|
|
SATA controller |
Intel® W480E: 8 SATA 3 6 Gb/s ports with Intel Rapid Storage Technology support (for Windows only) (Supports software RAID 0, 1, 10 & 5) |
SAS controller |
- |
Networking
|
|
Interface |
10/100/1000 Mbps |
Controller |
GbE LAN1: Intel® I219; GbE LAN 2~4: Intel I210-AT |
Connector |
RJ-45 x 2 for G2 version; RJ-45 x 4 for G4 version |
Onboard I/O Connector
|
|
Printer Port connector |
1 |
PSU connector |
24-pin SSI power connector + 8-pin SSI 12V power connector |
USB connector |
1 x USB 3.2 Gen 1 (2 ports), 3 x USB 2.0 (6 ports), 1 x USB Type-A |
M.2 connector |
1 x M.2 2280/2242 (PCIe/SATA) |
Fan header |
5 x (4-pin) |
SMBus |
1 |
Chassis intruder |
1 |
Front LAN LED |
2 |
Serial port header |
2 x (RS-232) |
Audio connector |
1 x (ALC 892) |
PS/2 KB/Mouse |
1 x (Optional PS/2 KB/Mouse cable and bracket required) |

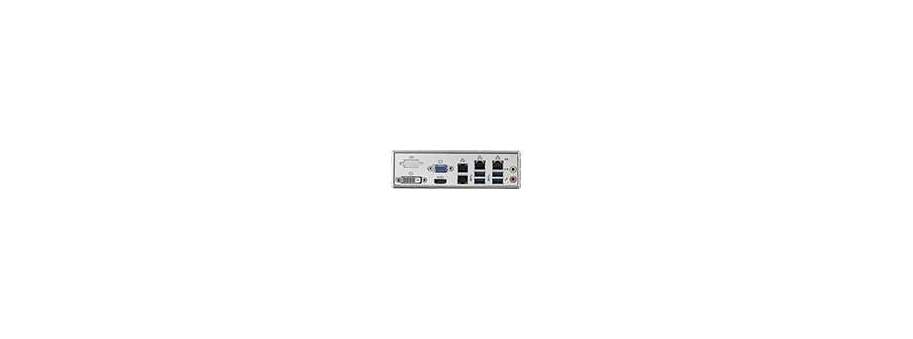

Rear I/O Connector
|
|
External serial port |
- (via COM cable in the package) |
External USB port |
4 x (USB 3.2 Gen 2) |
VGA port |
1 x (Resolution up to 1920 x 1200 @ 60 Hz) |
DVI port |
1 x (Resolution up to 1920 x 1200 @ 60 Hz) |
HDMI port |
1 x (Resolution up to 4096 x 2160 @ 60 Hz) |
RJ-45 |
2 x for G2 version; 4 for G4 version |
Audio connector |
2 x (Mic-in, Line-out) |
PS/2 KB/Mouse |
- |
Watchdog Timer
|
|
Output |
System reset |
Interva |
Programmable 1 ~ 255 sec |
Power Requirement
|
|
Power On |
3.3 V / 5 V / 12 V / 12V_8P / 5 VSB / -12 V |
(Xeon W-1290E 3.5GHz DDR4 2666 32G*4) |
1.69A / 1.68A / 0.31A/ 9.25A / 0.1A /0.01A |
Environment
|
|
Temperature |
Operating; 0 ~ 60° C, depends on CPU speed and cooler solution / Non-operating -40 ~ 85° C |
Humidity |
Operating 0% ~ 95% / Non-operating 5% ~ 95% (Non condensing) |
Physical Characteristics
|
|
Dimensions |
304.8 x 244 mm (12 x 9.6 in) |
