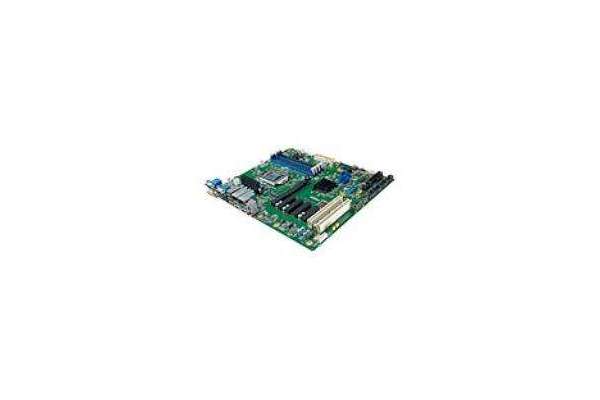

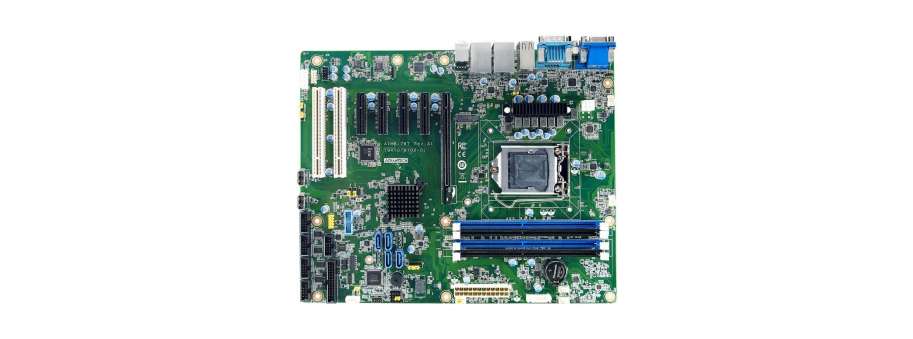

Industrial Motherboard on 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Advantech AIMB-787
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMB-787G2-00A2 | Промислова материнська плата Advantech LGA1200 ATX Q470E/2LAN/DP/DVI/VGA w/o LPT | 26 764,8 | |
| AIMB-787G2-00A2U | Промислова материнська плата Advantech AIMB-787G2 LGA1200 ATX Q470E/2LAN/DP/DVI/VGA, без LPT(Made in Taiwan) | 30 548,7 | |
| AIMB-787G2-01A2 | Промислова материнська плата Advantech AIMB-787G2-00A2 w/ I211-AT | 24 499,2 |
LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® ATX with DP/DVI/VGA, DDR4, USB 3.2, M.2, SATA 3.0
- Intel® 10th generation Core™ i9/i7/i5/i3/Pentium®/Celeron® processor with Q470E chipset
- Four DIMM sockets up to 128 GB DDR4 2933
- Triple display DP/DVI-D/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2
- Supports Intel vPro, AMT & TPM technologies
- Note 1: TPM module is required to enable Intel vPro and TPM technologies.
- Note 2: Legacy platform is not supported.
| CPU | i9- 10900E | i9- 10900TE | i7- 10700E | i7- 10700TE | i5- 10500E | i5- 10500TE | i3- 10100E | i3- 10100TE | G6400E | G6400TE | G5900E | G5900TE |
| Base Frequency | 2.8 GHz | 1.8 GHz | 2.9 GHz | 2.0 GHz | 3.1 GHz | 2.3 GHz | 3.2 GHz | 2.3 GHz | 3.8 GHz | 3.2 GHz | 3.2 GHz | 3.0 GHz |
| L3 Cache | 20 MB | 20 MB | 16 MB | 16 MB | 12 MB | 12 MB | 6 MB | 6 MB | 4 MB | 4 MB | 2 MB | 2 MB |
| Cores | 10 | 10 | 8 | 8 | 6 | 6 | 4 | 4 | 2 | 2 | 2 | 2 |
| TDP | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W |
Additional information
Processor System |
|
| Socket | LGA1200 |
| Chipset | Q470E |
| BIOS | AMI 256 Mbit SPI |
Expansion Slot |
|
| PCI | 2 (32-bit/33 MHz) |
| PCIe x4 (Gen 3) | 4 (3 x link x4, 1 x link x1) |
| PCIe x16 (Gen 3) | 1 |
Memory |
|
| Technology | Dual Channel (Non-ECC) DDR4 2400/2666/2933 |
| Max. Capacity | 128 GB |
| Socket | 4 x 288-pin DIMM |
Graphics |
|
| Controller | Intel HD Graphics |
| VRAM | 1 GB maximum shared memory with 2 GB and above system memory installed |
Ethernet |
|
| Interface | 10/100/1000 Mbps |
| Controller | GbE LAN1: Intel I219-LM, GbE LAN2: Intel I210-AT |
| Connector | 2 x RJ-45 |
SATA |
|
| Max Data Transfer Rate | 600 MB/s |
| Channel | 4 |
| RAID | 0,1,5,10 |
Rear I/O |
|
| VGA | 1 (Resolution up to 1920 x 1200 @ 60 Hz) |
| DVI-D | 1 (Resolution up to 1920 x 1200 @ 60 Hz) |
| DisplayPort | 1 (Resolution up to 4096 x 2304 @ 60 Hz) |
| Ethernet | 2 |
| USB | 8 (2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0) |
| Audio | 2 (Line-out, Mic-in) |
| Serial | 1 (RS-232) |
Internal Connectors |
|
| USB | 6 (2 x USB 3.2 Gen 1 via header, 2 x USB 2.0 via header, 2 x USB 2.0 Type-A connector) |
| Serial | 5 (4 x RS-232, 1 x RS-232/422/485) |
| SATA | 4 |
| M.2 | 1 (PCIe x4 M-key 2280 type) |
| Parallel | 1 |
| GPIO | 8-bit |
| PS/2 KB/Mouse | 1 (Optional PS/2 KB/Mouse Cable is required) |
Watchdog Timer |
|
| Output | System reset |
| Interval | Programmable 1 ~ 255 sec |
Power Requirement |
|
| Power On | Intel Core i5-10500E; DDR4 32 GB x 4 |
Physical Characteristics |
|
| Dimensions (L x H) | 304.8 x 244 mm (12" x 9.6") |
