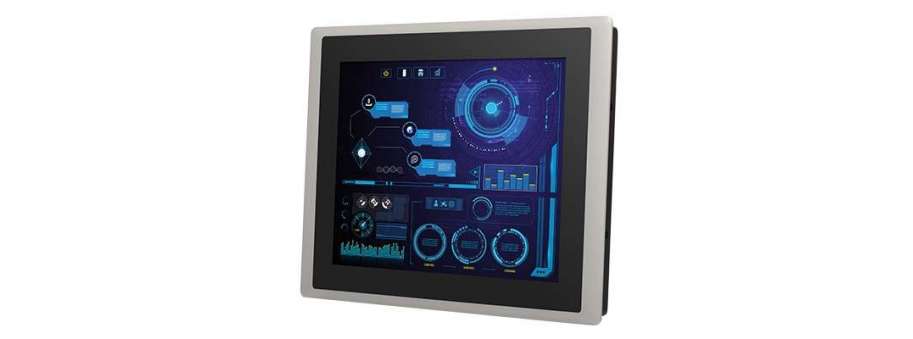

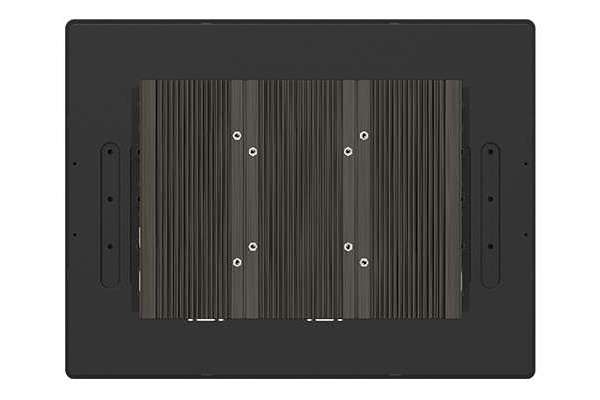

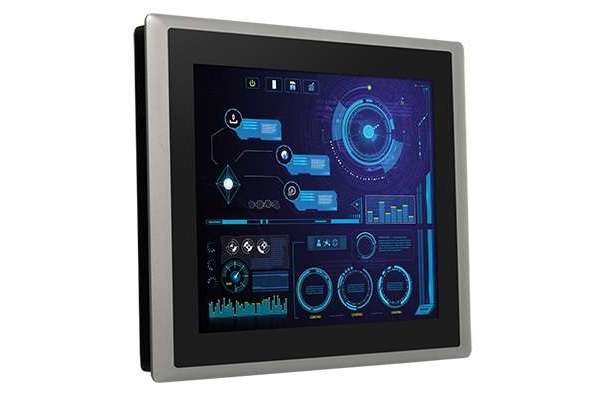

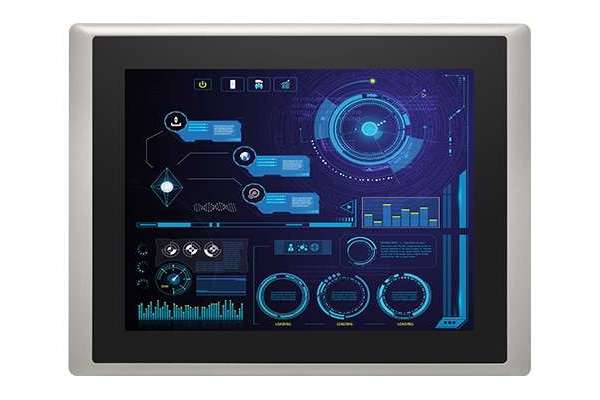

Панельный ПК с TFT XGA-дисплеем 4:3 и процессором Intel Meteor Lake-PS Core Series (разъем LGA) Cincoze CV-115 / P2302

Производитель: Cincoze
Facebook Twitter Linkedin Mail

Серия CV-100/P2302 — это высокопроизводительные модульные промышленные панельные ПК с процессорами Intel® Core™ Ultra U-серии (Meteor Lake-PS), широким выбором размеров экрана и гибкими возможностями расширения. Они включают в себя богатый набор встроенных интерфейсов ввода/вывода (2,5 Гбит/с LAN, USB 3.2 Gen 2x1, COM и DIO), разъемы M.2 Key B Type 3042/3052, слоты расширения M.2 Key E Type 2230 и поддерживают эксклюзивный модуль расширения CFM для добавления функций PoE и IGN.

Запатентованная технология CDS от Cincoze обеспечивает гибкость для будущих модернизаций производительности компьютера или замены дисплея. Надежная серия CV-100/P2302 может использоваться в различных областях, таких как человеко-машинный интерфейс оборудования и визуализация производственных процессов.

  • 15" TFT XGA 4:3 LCD с резистивным экраном / P-CAP / P-CAP (AG)
  • Процессор Intel® Meteor Lake-PS Core™ Ultra 7/5/3
  • 2 разъема DDR5 SO-DIMM, поддержка памяти до 5600 МГц, 96 ГБ памяти
  • Четыре независимых дисплея (CDS / HDMI / DP / VGA)
  • 1 разъем M.2 Key E Type 2230 для расширения беспроводного/Bluetooth модуля
  • 1 разъем M.2 Key B Type 3052/3042 для расширения 5G/GNSS/хранилища/дополнительных карт
  • 1 разъем M.2 Key B Type 3042 для расширения хранилища/дополнительных карт
  • Конструкция с литой алюминиевой передней панелью
  • Соответствие стандарту IP65 для передней панели

Дополнительная информация

CV-115R / CV-115C / CV-115C-AG

Display
LCD Size 15" (4:3)
Max. Resolution 1024 x 768
Brightness (cd/m2) 350
Contrast Ratio 800 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Viewing Angle (H-V) 160 / 150
Backlight LED Life Time 50,000 hrs (LED Backlight)

Touch Screen
Touch Type
  • Resistive 5-wire (for CV-115R)
  • Projected Capacitive (for CV-115C)
  • Projected Capacitive (for V-115C-AG)
Anti-Glare for CV-115C-AG
Wet Touch Tracking
for CV-115C and V-115C-AG

Physical
Dimension ( W x D x H ) 408 x 312.4 x 59.2 mm
Weight Information 4.36 kg
Mechanical Construction Die-Casting Flat Surface

Power
Power Consumption
  • 8W (Max.) (for CV-115R)
  • 7.95W (Max.) (for CV-115C)
  • 7.95W (Max.) (for V-115C-AG)
Environment
Front Panel Protection IP 65 Compliant
Operating Temperature 0°C to 65°C (32°F to 149°F) (With Industrial Grade peripherals; Ambient with air flow)
Storage Temperature -20°C to 65°C (-4°F to 149°F)
Relative Humidity 90% RH @ 40°C (Non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

System

 P2302 / P2302E
Processor
Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W
- Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W
- Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP
Memory 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB
BIOS AMI BIOS

Graphics
Graphics Engine Intel® Graphics
Maximum Display Output Supports Quad Independent Display
CDS 1x CDS Connector (1920 x 1080 @60Hz)
DP
1x DisplayPort Connector (4096 x 2304 @60Hz)

* Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
VGA 1x VGA Connector (1920 x 1080 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN
2x 2.5GbE LAN, RJ45
- GbE1: Intel® I226
- GbE2: Intel® I226
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 2 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 3.2 Gen1x1 (5Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
DIO 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage / Expansion
2.5” SSD/HDD 2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 Key E Socket 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion
M.2 Key B Socket
  • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/GNSS/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 3042 (PCIe Gen 3x2 / USB2.0), Support Storage/Add-on Card Expansion
PCI Express for P2302E
SIM Socket 1 x Front Accessible SIM Socket
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off
1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption
Intel Core™ Ultra 7 Processor 165UL: 79.7W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing
Inrush Current (Peak) Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu Desktop 24.04 LTS

Physical
Dimension( W x D x H )
  • 254.5 x 190 x 49.5 mm (for P2302)
  • 254.5 x 190 x 69 mm (for P2302E)
Weight Information
  • 2.16 kg (for P2302)
  • 2.26 kg (for P2302E)
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Environment
Operating Temperature
-40°C to 65°C (-40°F to 149°F)

* PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 95%RH @ 65°C (non-Condensing)
Shock
  • Operating, 50 Grms (w/SSD, according to IEC60068-2-27)
  • MIL-STD-810H
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-6)
  • MIL-STD-810H
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2:
Safety UL, cUL, CB, IEC, EN 62368-1
