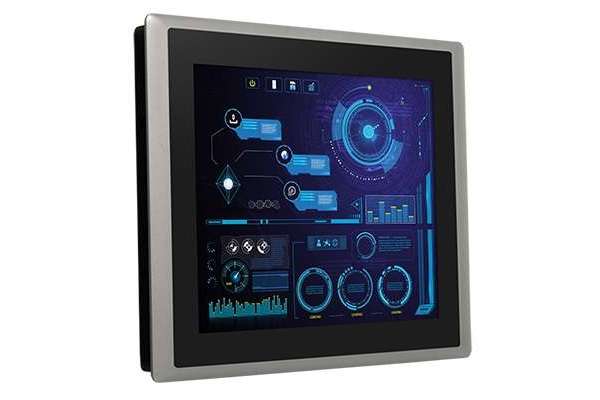

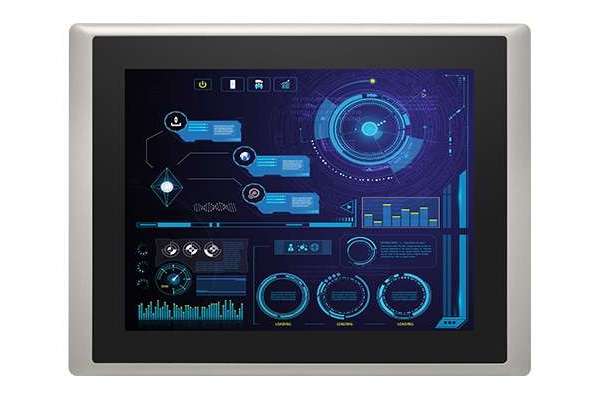

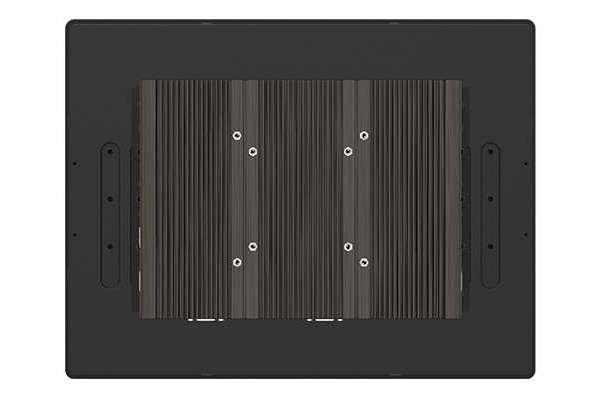

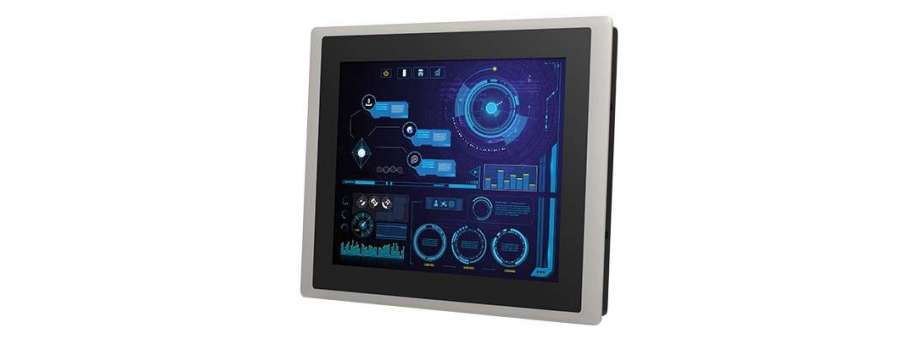

TFT XGA 4:3 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Embedded Computer Cincoze CV-115 / P2302
The CV-100/P2302 series is a high-performance modular industrial panel PC with an Intel® Core™ Ultra U-series (Meteor Lake-PS) Processors, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (2.5 GbE LAN, USB 3.2 Gen 2x1, COM, and DIO), has M.2 Key B Type 3042/3052 Socket , M.2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE and IGN functions. Cincoze’s exclusive CDS patented technology provides flexibility for future computer performance upgrades or display replacements. The rugged CV-100/P2302 series can meet the diverse applications of equipment machine HMI and production process visualization.
- 15" TFT XGA 4:3 LCD with Resistive / P-CAP / P-CAP (AG)
- Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- 2 x DDR5 SO-DIMM Socket, Supports up to 5600MHz 96GB Memory
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/GNSS/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
- Designed with Aluminum Die-cast Front Bezel
- Front Panel IP65 Compliant
Additional information
| CV-115R / CV-115C / CV-115C-AG | |
Display |
|
| LCD Size | 15" (4:3) |
| Max. Resolution | 1024 x 768 |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 800 : 1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Viewing Angle (H-V) | 160 / 150 |
| Backlight LED Life Time | 50,000 hrs (LED Backlight) |
Touch Screen |
|
| Touch Type |
|
| Anti-Glare | for CV-115C-AG |
| Wet Touch Tracking |
for CV-115C and V-115C-AG
|
Physical |
|
| Dimension ( W x D x H ) | 408 x 312.4 x 59.2 mm |
| Weight Information | 4.36 kg |
| Mechanical Construction | Die-Casting Flat Surface |
Power |
|
| Power Consumption |
|
| Environment | |
| Front Panel Protection | IP 65 Compliant |
| Operating Temperature | 0°C to 65°C (32°F to 149°F) (With Industrial Grade peripherals; Ambient with air flow) |
| Storage Temperature | -20°C to 65°C (-4°F to 149°F) |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
System |
P2302 / P2302E |
| Processor |
Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
- Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W
- Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W
- Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W
- Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP
|
| Memory | 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB |
| BIOS | AMI BIOS |
Graphics |
|
| Graphics Engine | Intel® Graphics |
| Maximum Display Output | Supports Quad Independent Display |
| CDS | 1x CDS Connector (1920 x 1080 @60Hz) |
| DP |
1x DisplayPort Connector (4096 x 2304 @60Hz)
* Verified maximum resolution: 3840 x 2160 @ 60Hz |
| HDMI | 1x HDMI Connector (3840 x 2160 @30Hz) |
| VGA | 1x VGA Connector (1920 x 1080 @60Hz) |
Audio |
|
| Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm |
I/O |
|
| LAN |
2x 2.5GbE LAN, RJ45
- GbE1: Intel® I226
- GbE2: Intel® I226
|
| COM | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB |
|
| DIO | 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block |
Storage / Expansion |
|
| 2.5” SSD/HDD | 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| M.2 Key E Socket | 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion |
| M.2 Key B Socket |
|
| PCI Express | for P2302E |
| SIM Socket | 1 x Front Accessible SIM Socket |
| CFM (Control Function Module) Interface |
|
Power |
|
| Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch |
| Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off |
1x Remote Power On/Off, 2-pin Terminal Block
|
| Max. Power Consumption |
Intel Core™ Ultra 7 Processor 165UL: 79.7W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing
|
| Inrush Current (Peak) | Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V |
Operating System |
|
| Windows | Windows®11, Windows®10 |
| Linux | Ubuntu Desktop 24.04 LTS |
Physical |
|
| Dimension( W x D x H ) |
|
| Weight Information |
|
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall / VESA / CDS / DIN Rail |
| Physical Design |
|
Environment |
|
| Operating Temperature |
-40°C to 65°C (-40°F to 149°F)
* PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2 |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 95%RH @ 65°C (non-Condensing) |
| Shock |
|
| Vibration |
|
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI |
|
| EMS |
|
| Industrial Environment | EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: |
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
