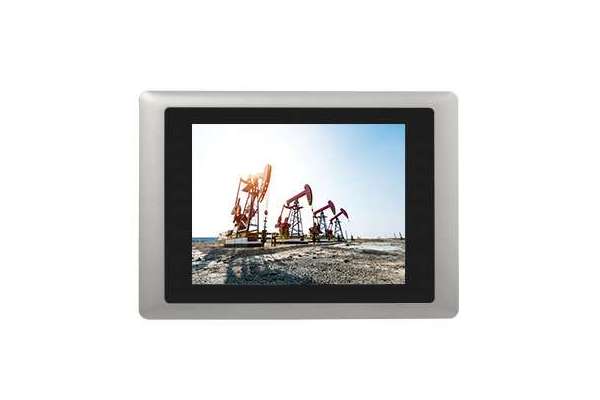

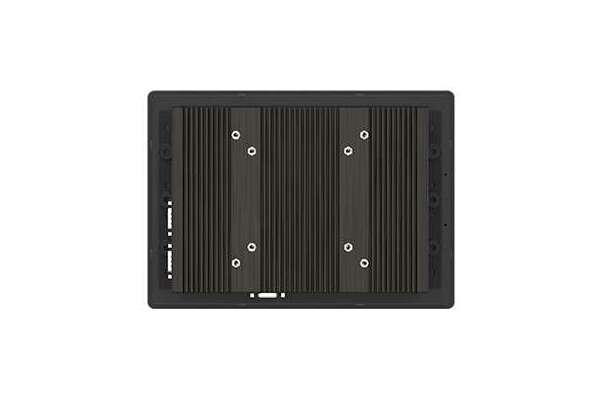

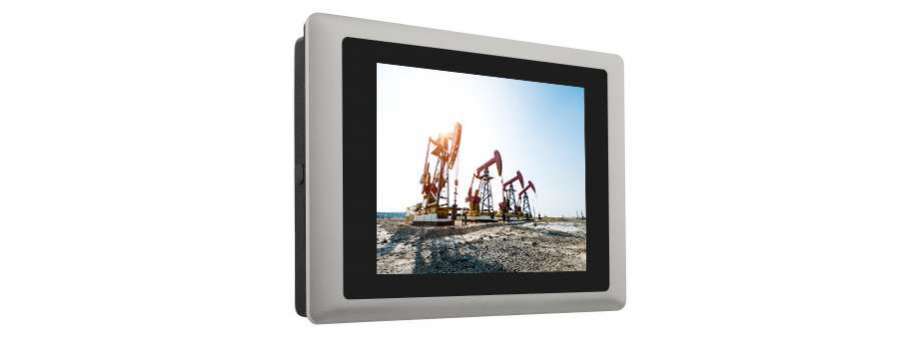

Сенсорный тонкий ПК с TFT-LCD экраном P-Cap 1600 нит на платформе Intel® Alder Lake-N Cincoze CS-108/P1301

Производитель: Cincoze
Facebook Twitter Linkedin Mail

Серия CS-100/P1301 — это панельный ПК, обеспечивающий читаемость на солнце и сверхвысокую яркость до 1800 нит. Он оснащен процессором Intel® Alder Lake-N, который предлагает полный набор размеров экрана, соотношений сторон и уровней яркости. Широкий набор портов ввода/вывода, гибкие возможности расширения, прочность, простота обслуживания на месте и другие характеристики делают серию CS-100/P1301 лучшим выбором для наружных киосков или HMI-приложений.

  • 8.4“ TFT-LCD XGA с ультравысокой яркостью до 1600 нит
  • Встроенный процессор Intel® Alder Lake-N Core™ i3-N305, N97 и Atom® x7425E
  • 1 разъем DDR5 SO-DIMM, поддержка памяти до 4800 МГц и 16 ГБ
  • 1 разъем M.2 Key E Type 2230 для расширения беспроводной связи/Bluetooth/модуля Intel CNVi
  • 1 разъем M.2 Key B Type 3042/3052 для расширения 5G/GNSS/хранилища/дополнительных карт
  • Передняя панель соответствует стандарту IP65
  • Прочная передняя панель из литого алюминия
  • Поддержка панельного / VESA / стоечного монтажа
  • Поддержка запатентованной технологии Cincoze CDS (патент № M482908)

Дополнительная информация

Display
LCD Size 8.4" (4:3)
Max. Resolution 800 x 600
Brightness (cd/m2) 1600
Contrast Ratio 600 : 1
LCD Color 16.2M
Pixel Pitch (mm) 0.213 (H) x 0.213 (V)
Viewing Angle (H-V) 160 / 140
Backlight LED Life Time 50,000 hrs (LED Backlight)

Touch Screen
Touch Type Projected Capacitive
Wet Touch Tracking v

Physical
Dimension ( W x D x H ) 262 x 186.2 x 56.2mm
Weight Information 1.58kg
Mechanical Construction Flat Rugged Aluminum Die-casting Bezel

Power
Power Consumption 9.48W (Max.)

Environment
Front Panel Protection IP 65 Compliant
Operating Temperature -20°C to 70°C (-4°F to 158°F) (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Relative Humidity 90% RH @ 40°C (Non-Condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

System
Processor
Onboard Intel® Alder Lake-N Series Processor:
- Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W
- Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W
- Intel Atom® x7425E 4 Cores Up to 3.40 GHz, T
Memory 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB
BIOS AMI BIOS

Graphics
Graphics Engine Integrated Intel® UHD Graphics
Maximum Display Output Supports Triple Independent Display
CDS 1x CDS Connector (1920 x 1080 @60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
VGA 1x VGA Connector (1920 x 1200 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN
2x 2.5GbE LAN, RJ45
- GbE1 / GbE2: Intel® I226
COM 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
USB
  • 3 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
DIO 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block

Storage / Expansion
2.5” SSD/HDD 1x 2.5” Front Accessible SATA HDD/SSD Bay
M.2 Key E Socket 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth/Intel CNVi Module Expansion
M.2 Key B Socket 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/GNSS/Storage/Add-on Card Expansion
SIM Socket 1x Front Accessible SIM Socket
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1x Remote Power LED, 2-pin Terminal Block
Max. Power Consumption
• i3-N305 CPU: 48.59W
• N97 CPU: 34.04W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in te
Inrush Current (Peak)
  • i3-N305 CPU: 5.538 A@12V
  • N97 CPU: 5.242 A@12V

Operating System

Microsoft® Windows® Windows®11, Windows®10
Linux Ubuntu Desktop 22.04 LTS

Physical
Dimension ( W x D x H ) 204.5 x 149 x 46.5mm
Weight 1.57 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Environment
Operating Temperature
  • Intel® Processor N97: -20°C to 70°C (-4°F to 158°F)
  • Intel Atom® x7425E : -40°C to 70°C (-40°F to 158°F)
  • Intel® Core™ i3-N305: -20°C to 60°C (-4°F to 140°F)

* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)

* With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity
  • Intel® Processor N97 / Atom® x7425E: 95%RH @ 70°C (non-Condensing)
  • Intel® Core™ i3-N305: 95%RH @ 60°C (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMC
  • CE, UKCA, FCC, ICES-003 Class A
  • EN61000-6-4, EN61000-6-2 @ DC-input 24V
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.)
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety UL, cUL, CB, IEC, EN 62368-1
