General
|
|
|
|
|
|
|
|
Certifications
|
CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD
|
CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD
|
CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD
|
CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD
|
CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD
|
CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD
|
|
Power consumption (typical)
|
25W
|
25W
|
25W
|
25W
|
25W
|
25W
|
|
Power Requirement
|
Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC
|
Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC
|
Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC
|
Redundant Power Supply Power1: 100~240 VAC, 100~240 VDC Power2: 100~240 VAC, 100~240 VDC
|
Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC
|
Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC
|
|
OS Support
|
Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux
|
Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux
|
WES7, Windows7, Linux, Windows server 2008 R2 (64bits), Windows Embedded 8.1 (32/64bits)
|
Windows7, Windows8, Windows Server 2008 R2,WES7(WS7P), Windows Server 2012R2 Windows Embedded 8 64-bit
|
Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux
|
Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux
|
|
Dimensions ( W x D x H )
|
440 x 280 x 88 mm
|
440 x 280 x 88 mm
|
440 x 280 x 88 mm
|
440 x 280 x 88 mm
|
440 x 280 x 88 mm
|
440 x 280 x 88 mm
|
|
Enclosure
|
SECC & Aluminum
|
SECC & Aluminum
|
SECC & Aluminum
|
SECC & Aluminum
|
SECC & Aluminum
|
SECC & Aluminum
|
|
Weight
|
6.0 kg
|
6.0 kg
|
6.0 kg
|
6.0 kg
|
6.0 kg
|
6.0 kg
|
|
Mounting
|
2U Rackmount
|
2U Rackmount
|
2U Rackmount
|
2U Rackmount
|
2U Rackmount
|
2U Rackmount
|
|
System Design
|
Fanless
|
Fanless
|
Fanless
|
Fanless
|
Fanless
|
Fanless
|
|
System Hardware
|
|
|
|
|
|
|
|
CPU
|
Intel ® Celeron ® 2980U 1.6 GHz
|
Intel ® Core™ dual-core i7 4650U 1.7 GHz
|
Intel Haswell Core i7 4650U 1.7GHz dual-core
|
Intel Haswell i3 4010U 1.7GHz
|
Intel SkyLake Xeon E3-1505L Quad-core 2.0GHz
|
Intel SkyLake Xeon E3-1505L Quad-core 2.0GHz
|
|
Memory
|
DDR3L 1.35V non-ECC 8G
|
DDR3L 1.35V non-ECC 8G
|
DDR3L 1.35V non-ECC 16G
|
DDR3L 1.35V non-ECC 8G
|
DDR4 1.2V ECC 16G (Up to 32G)
|
DDR4 1.2V ECC 16G (Up to 32G)
|
|

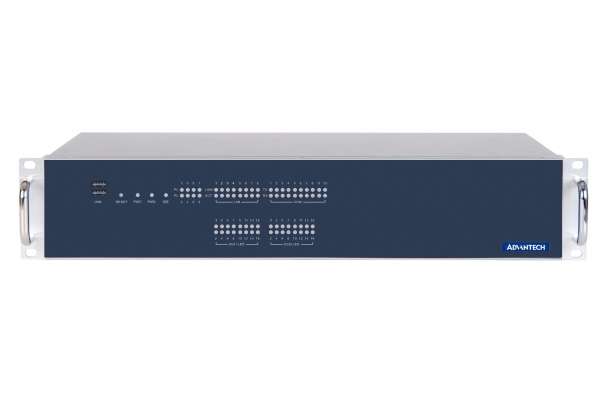

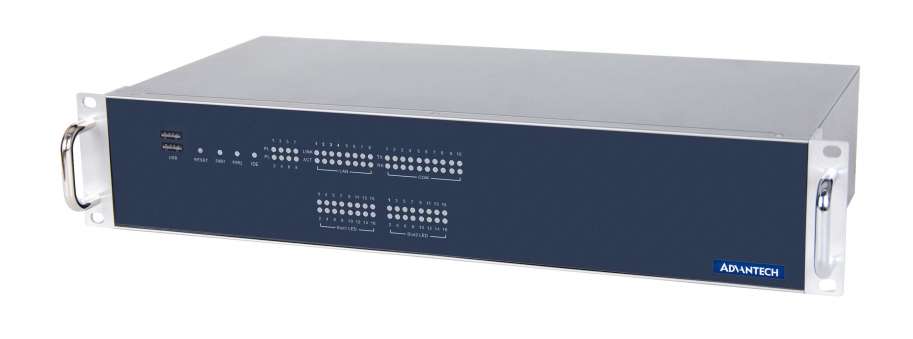

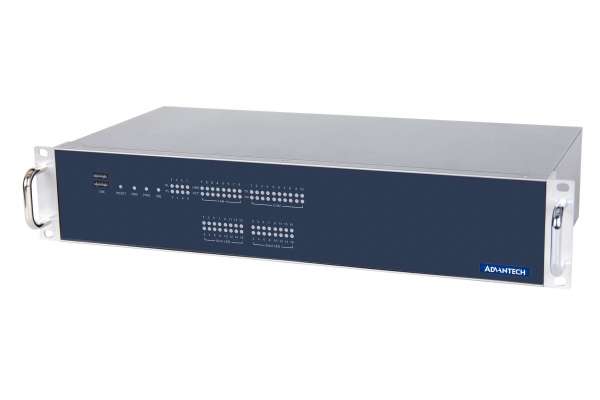

Indicators
|
LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2
|
LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2
|
LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2
|
LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2
|
LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2
|
LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2
|
|
Storage
|
2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket
|
2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket
|
2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket
|
2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket
|
2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket
|
2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket
|
|
Display
|
1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)
|
1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)
|
DB15 VGA connector, 1 x DVI
|
1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)
|
1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)
|
1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)
|
|
Watchdog Timer
|
Programmable 256 levels time interval, from 1 to 255 seconds for each tier
|
Programmable 256 levels time interval, from 1 to 255 seconds for each tier
|
Programmable 256 levels time interval, from 1 to 255 seconds for each tier
|
Programmable 7-tier event handler, from 1 ~ 255 seconds for each tier
|
Programmable 256 levels time interval, from 1 to 255 seconds for each tier
|
Programmable 256 levels time interval, from 1 to 255 seconds for each tier
|
|

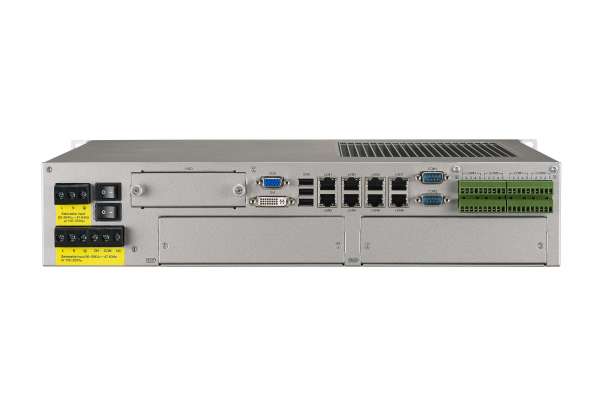

I/O Interface
|
|
|
|
|
|
|
|

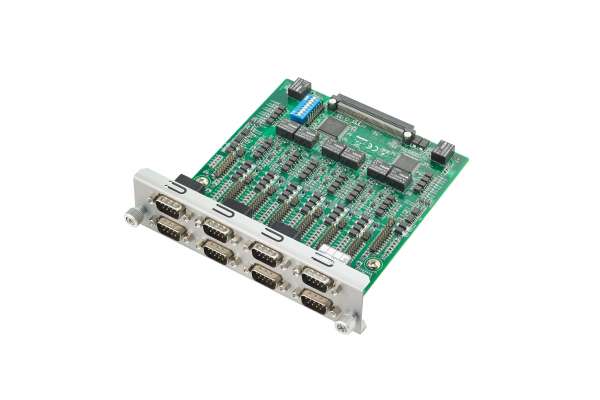

Serial Ports
|
2 x RS-232, 8 x RS-232/422/485, 2,500V isolation
|
2 x RS-232, 8 x RS-232/422/485, 2,500V isolation
|
2 x RS-232, 8 x RS-232/422/485; 2500 VDC isolation
|
2 x RS-232, 8 x RS-232/422/485; 2500 VDC isolation
|
2 x RS-232, 8 x RS-232/422/485, 2,500V isolation
|
2 x RS-232, 8 x RS-232/422/485, 2,500V isolation
|
|
Serial Port Speed
|
RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)
|
RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)
|
RS-232: 50~115.2 kbps; RS-422/485: 50~921.6 kbps
|
RS-232: 50~115.2 kbps; RS-422/485: 50~921.6 kbps
|
RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)
|
RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)
|
|
LAN
|
8 x 10/100/1000 Base-T RJ45 ports
|
8 x 10/100/1000 Base-T RJ45 ports
|
8 x 10/100/1000 Base-T RJ45 ports
|
8 x 10/100/1000 Base-T RJ45 ports
|
8 x 10/100/1000 Base-T RJ45 ports
|
8 x 10/100/1000 Base-T RJ45 ports
|
|
USB
|
6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal
|
6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal
|
6 x USB, UHCI, Rev 2.0 Compliant;2 x Front Rev 3.0 Compliant
|
6 x USB, UHCI, Rev 2.0 Compliant;2 x Front Rev 3.0 Compliant
|
6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal
|
6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal
|
|

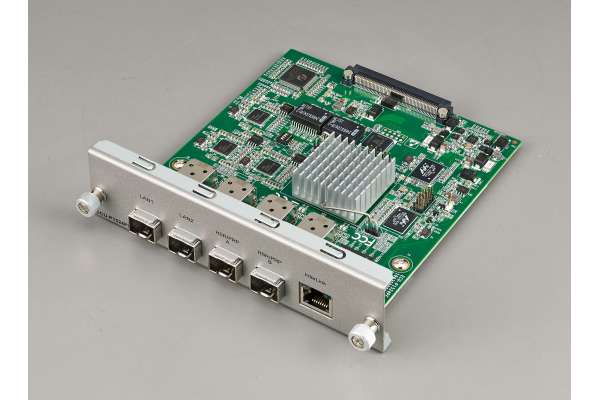

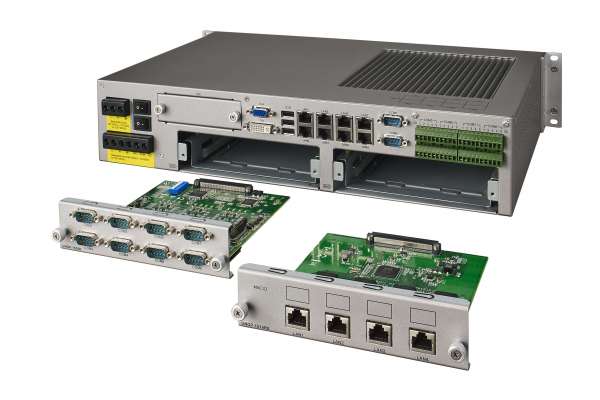

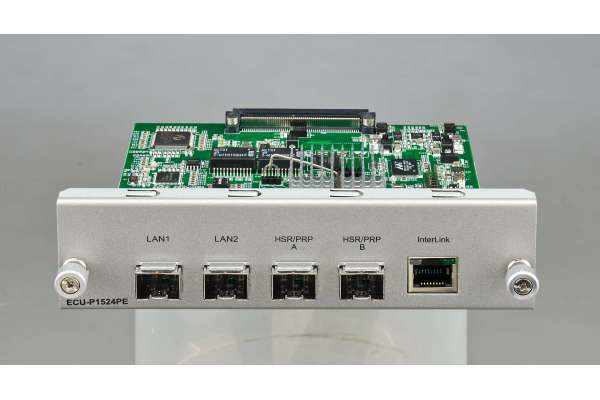

Extension
|
2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)
|
2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)
|
2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)
|
2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)
|
2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)
|
2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)
|
|
Environment
|
|
|
|
|
|
|
|
Temperature (Operating)
|
IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)
|
IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)
|
IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)
|
IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)
|
IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 60°C (-13 ~ 140°F)
|
IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 60°C (-13 ~ 140°F)
|
|
Humidity (Operating)
|
5 ~ 95 % RH, non-condensing
|
5 ~ 95 % RH, non-condensing
|
5 ~ 95 % RH, non-condensing
|
5 ~ 95 % RH, non-condensing
|
5 ~ 95 % RH, non-condensing
|
5 ~ 95 % RH, non-condensing
|
|
Humidity (Storage)
|
5 ~ 95% RH, non-condensing
|
5 ~ 95% RH, non-condensing
|
5 ~ 95% RH, non-condensing
|
5 ~ 95% RH, non-condensing
|
5 ~ 95% RH, non-condensing
|
5 ~ 95% RH, non-condensing
|
|
Vibration Protection
|
IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz
|
IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz
|
IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash: 2 Grms @ 5 ~ 500 Hz
|
IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash: 2 Grms @ 5 ~ 500 Hz
|
IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz
|
IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz
|
|
Shock Protection
|
IEC 68 2-27 CFast®: 30 G half sine,11 ms
|
IEC 68 2-27 CFast®: 30 G half sine,11 ms
|
IEC 68 2-27 CFast®: 30 G half sine,11 ms
|
IEC 68 2-27 CFast®: 30 G half sine,11 ms
|
IEC 68 2-27 CFast®: 30 G half sine,11 ms
|
IEC 68 2-27 CFast®: 30 G half sine,11 ms
|
