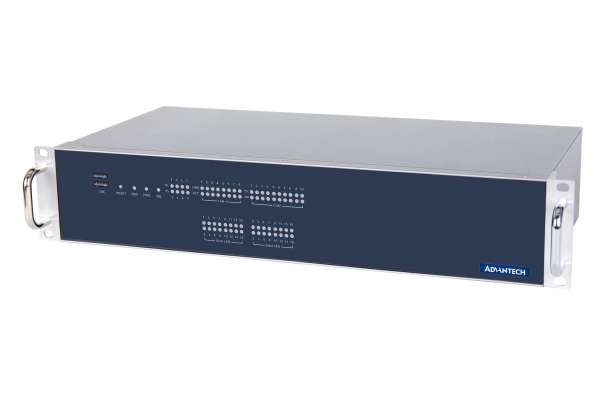

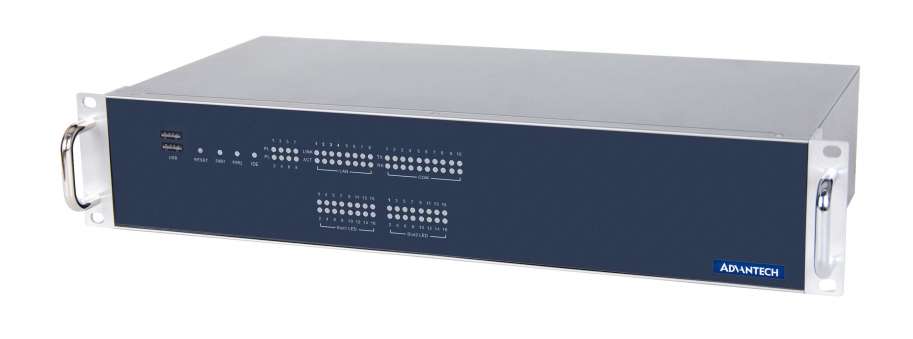

2U Rackmount computer ECU-4784

Intel Hasewell Core i7/i3 Advantech ECU-4784 IEC-61850-3 Certified Power Automation Computers

Industrial Computer >> Embedded computers with expansion slots

 Price and avalability

Manufacturer: Advantech Co., Ltd.

The ECU-4784 series are TUV IEC 61850-3 and IEEE 1613 certified products, which can provide high reliability and stability for global power automation target market application.

  • Intel Hasewell Core i7, i3, Celeron Processors
  • Isolated 8 x LAN, 10 x Serial Port Communication Interfaces
  • 220VAC/DCRedundant Power Supply
  • 48V Power for Selection
  • 2 x IO Expansion Slots
  • 2 x 2.5’’ SATA HDD, 1 x CFast Socket for Storage
  • VGA & DVI Display Interface
  • Programmable LEDs
  • Intelligent Connectivity Diagnosis Management
  • Remote Management
  • Trusted Platform Module
  • Virtualization Technology for Directed I/O

With the fanless and robust design, high CPU performance, flexible expansion, rich communication interfaces and intelligent functions, the ECU-4784 series are industrial PC that suitable for smart substation in harsh environment, not the general computers

Key Features & Benefits

X86 Architecture with Intel Hasewell Core i7, i3, Celeron Processors

The ECU-4784 series support different Intel processors which can deliver very high performance and broad operating system and software compatibility, including 1.7GHz dual-core i7, 1.7GHz i3 and 1.6GHz Celeron.

Redundant Power Supply

The ECU-4784 support two 100~240V power modules (One power is build-in, the other one by CTOS configuration center), which providing reliable, independent and continuous power supply, ensure your stable operation.

48V Power for Selection

For special industry application, customer could install 48V power module on ECU-4784 by CTOS configuration center. So different power combination supply for your selection: 220V+48V or dual 48V.

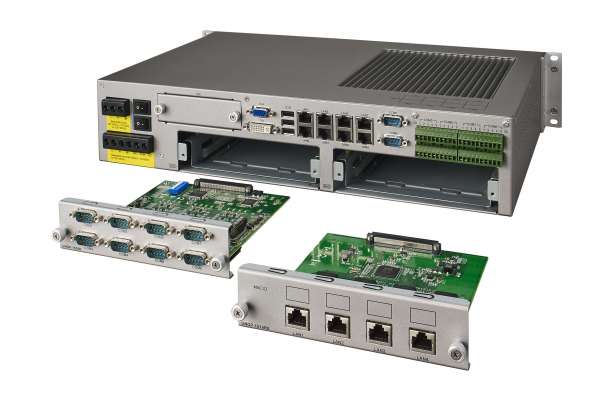

IO Expansion Slots

The ECU-4784 supports two standard PCI/PCIe expansion slots, each slot supports 1x PCIe and 2x PCI interface, enabling you to customize the system I/O to meet your applications requirement, with flexible UNOP and ECM cards.

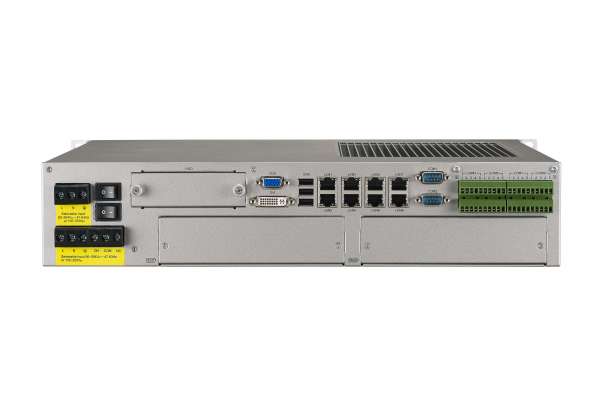

Isolated and Rich Communication Interfaces

For various communication requests, the ECU-4784 provides as many as 26x serial ports (With ECU-P1628D/1618D), 12x Ethernet ports (with UNOP-1514) and 6x USB ports, all isolated ports that get flexible and reliable system interconnection.

Mass and Fast Storage

The ECU-4784 has 1x CFast and 2x 2.5’’ hot-swappable SATA interfaces from the rear panel. The integrated SATA controller could support Redundant Arrays of Independent Disks (RAID) to maximize data availability and improve storage performance, RAID 0, RAID 1 , RAID 5 are all supported.

Versatile Display Interface

DVI and VGA interfaces are both supported for your display application.

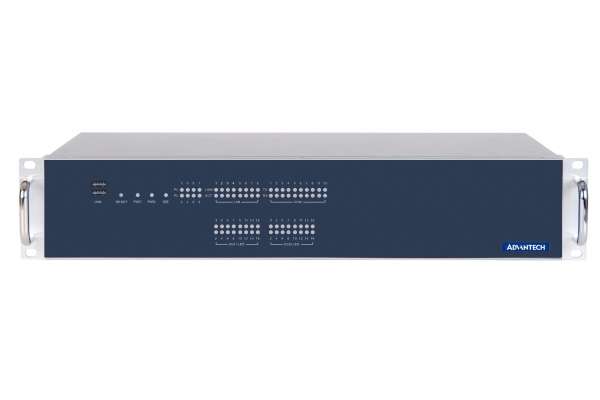

Programmable LEDs

For ECU-4784, eight programmable LEDs on front panel for your customization.

Intelligent Connectivity Diagnosis Management

Because of an intelligent agent build-in ECU-4784, the serial ports and Ethernet ports will be under monitoring. This software function could help the ECU-4784 to enhance maintenance efficiency.

Remote Management

Using Intel Active Management Technology, the ECU-4784 enables full access to the system, storage, desktop, mouse, keyboard and video remotely, regardless of whether they start up or the functioning operating system is crashed.

Trusted Platform Module

An Infineon microchip build-in the mother board, helps ECU-4784 to prevent the illegal user access, which protects the system to be safe.

Virtualization Technology for Directed I/O

The VT-D architecture enables system software to assign one or more I/O devices to a protection domain, and provides the necessary isolation to assure separation between each virtual machine’s computer resources, which improves performance of I/O devices in virtualized environment

Price and avalability

Partnumber Description Price VAT incl Avalability
ECU-4784-C25SAE Промышленный стоечный компьютер для энергетики Celeron 2980U 1.6G, 8GB RAM,8xLAN,10xCOM,2xSlot  81 025,8
ECU-4784-C25SBE Промышленный стоечный компьютер для энергетики Celeron 2980U 1.6G, 8GB RAM,8xLAN,10xCOM,2xSlot  75 094,2
ECU-4784-D55SAE Промышленный стоечный компьютер для энергетики Core i7 1.7GHz, 8GB RAM,8xLAN,10xCOM,2xSlot  122 860,0
ECU-4784-D55SBE Промышленный стоечный компьютер для энергетики Core i7 1.7GHz, 8GB RAM,8xLAN,10xCOM,2xSlot  115 896,0
ECU-4784-D56SAE Промышленный стоечный компьютер для энергетики Core i7 1.7GHz, 16GB RAM,8xLAN,10xCOM,2xSlot (Компактный компьютер 2U для установки в 19" шкаф)  130 353,0
ECU-4784-D56SBE Промышленный стоечный компьютер для энергетики CORE I7 1.7GHZ, 16GB RAM,8XLAN,10XCOM,2xSlot  117 079,0
ECU-4784-E14SAE Промышленный стоечный компьютер для энергетики Core i3 1.7GHz, 4GB RAM,4xLAN,4xCOM,no Slot  58 048,4
ECU-4784-E15SAE Промышленный стоечный компьютер для энергетики Core i3 1.7GHz, 8GB RAM,8xLAN,10xCOM,2xSlot  82 354,2
ECU-4784-E56DAE Промышленный стоечный компьютер для энергетики Xeon E3 2.0G,16GB,8xLAN,10xCOM,2xSlot,Dual Power  170 389,0
ECU-4784-E56SAE Промышленный стоечный компьютер для энергетики Xeon E3 2.0GHz, 16GB RAM, 8xLAN, 10xCOM, 2xSlot  164 955,0
ECU-4784-E57SAE Промышленный стоечный компьютер для энергетики Xeon E3 2.0GHz, 32GB RAM, 8xLAN, 10xCOM, 2xSlot  170 389,0
ECU-P1300-AE Модуль ввода-вывода Vibration Signal Modulate Card  13 179,9
ECU-P1514R-AE CIRCUIT BOARD, PCI-104 4 Port LAN Ethernet Card For ECU-4674  159,7

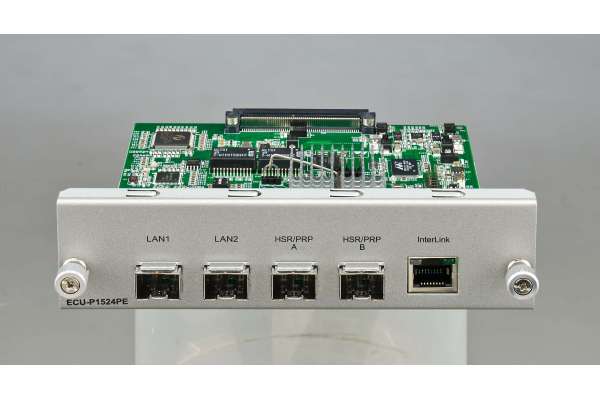

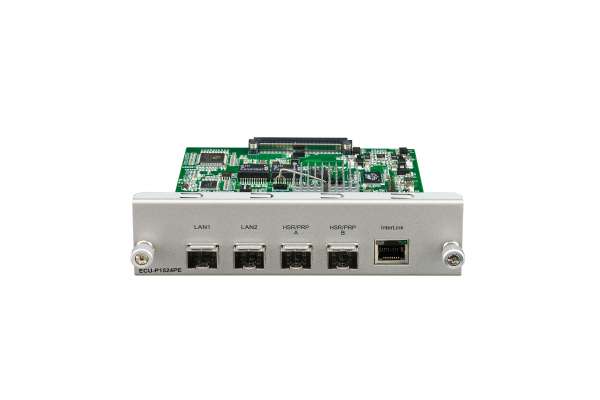

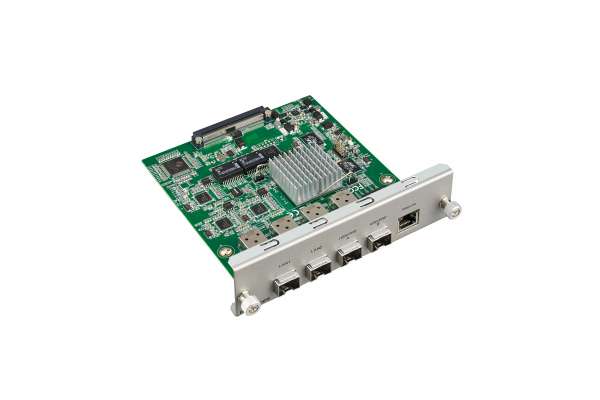

ECU-P1524PE-GAE Плата расширения 2-port SFP Gigabit Ethernet Card with HSR/PRP  22 961,5

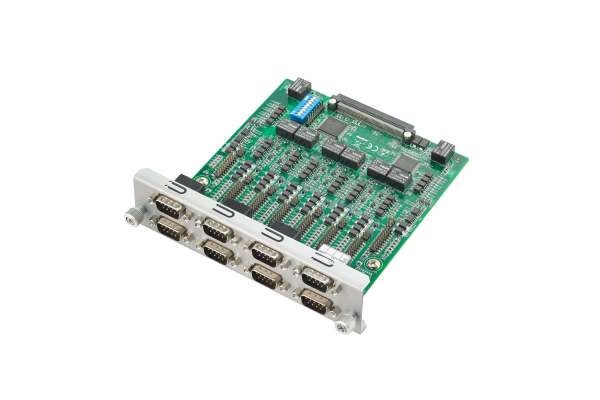

ECU-P1618D-AE Плата расширения 8-port RS-232/422/485 for UNO-4673A,4683  11 161,5

Additional information

Part Number

ECU-4784-C25SBE

ECU-4784-D55SBE

ECU-4784-D56SBE

ECU-4784-E15SAE

ECU-4784-E56SAE

ECU-4784-E57SAE

General



Certifications

CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD

CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD

CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD

CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD

CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD

CE, FCC, CCC, Electricity IV level for China,IEC-61850-3, IEEE-1613, UL, CB, LVD

Power consumption (typical)

25W

25W

25W

25W

25W

25W

Power Requirement

Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC

Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC

Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC

Redundant Power Supply Power1: 100~240 VAC, 100~240 VDC Power2: 100~240 VAC, 100~240 VDC

Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC

Supports redundant power input; Power 1: 100~240 VAC or 100~240 VDC; Power 2: 100~240 VAC or 100~240 VDC

OS Support

Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux

Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux

WES7, Windows7, Linux, Windows server 2008 R2 (64bits), Windows Embedded 8.1 (32/64bits)

Windows7, Windows8, Windows Server 2008 R2,WES7(WS7P), Windows Server 2012R2 Windows Embedded 8 64-bit

Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux

Windows7, Windows8, Windows10, Windows Server 2008 R2,Windows Server 2012 R2, Windows Server 2016, WES7(WS7P), Windows Embedded 8 64-bit, Linux

Dimensions ( W x D x H )

440 x 280 x 88 mm

440 x 280 x 88 mm

440 x 280 x 88 mm

440 x 280 x 88 mm

440 x 280 x 88 mm

440 x 280 x 88 mm

Enclosure

SECC & Aluminum

SECC & Aluminum

SECC & Aluminum

SECC & Aluminum

SECC & Aluminum

SECC & Aluminum

Weight

6.0 kg

6.0 kg

6.0 kg

6.0 kg

6.0 kg

6.0 kg

Mounting

2U Rackmount

2U Rackmount

2U Rackmount

2U Rackmount

2U Rackmount

2U Rackmount

System Design

Fanless

Fanless

Fanless

Fanless

Fanless

Fanless

System Hardware



CPU

Intel ® Celeron ® 2980U 1.6 GHz

Intel ® Core™ dual-core i7 4650U 1.7 GHz

Intel Haswell Core i7 4650U 1.7GHz dual-core

Intel Haswell i3 4010U 1.7GHz

Intel SkyLake Xeon E3-1505L Quad-core 2.0GHz

Intel SkyLake Xeon E3-1505L Quad-core 2.0GHz

Memory

DDR3L 1.35V non-ECC 8G

DDR3L 1.35V non-ECC 8G

DDR3L 1.35V non-ECC 16G

DDR3L 1.35V non-ECC 8G

DDR4 1.2V ECC 16G (Up to 32G)

DDR4 1.2V ECC 16G (Up to 32G)

Indicators

LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2

LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2

LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2

LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2

LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2

LEDs for PWR1, PWR2, HDD,Programmable LED, LAN (LINK, ACT),COM (TX, RX), Slot1 & Slot2

Storage

2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket

2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket

2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket

2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket

2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket

2x 2.5" SATA HDD( RAID 0,1); 1 x CFast socket

Display

1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)

1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)

DB15 VGA connector, 1 x DVI

1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)

1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)

1 x DB15 VGA, 1 x DVI-D (Resolution: 1920 x 1080)

Watchdog Timer

Programmable 256 levels time interval, from 1 to 255 seconds for each tier

Programmable 256 levels time interval, from 1 to 255 seconds for each tier

Programmable 256 levels time interval, from 1 to 255 seconds for each tier

Programmable 7-tier event handler, from 1 ~ 255 seconds for each tier

Programmable 256 levels time interval, from 1 to 255 seconds for each tier

Programmable 256 levels time interval, from 1 to 255 seconds for each tier

I/O Interface



Serial Ports

2 x RS-232, 8 x RS-232/422/485, 2,500V isolation

2 x RS-232, 8 x RS-232/422/485, 2,500V isolation

2 x RS-232, 8 x RS-232/422/485; 2500 VDC isolation

2 x RS-232, 8 x RS-232/422/485; 2500 VDC isolation

2 x RS-232, 8 x RS-232/422/485, 2,500V isolation

2 x RS-232, 8 x RS-232/422/485, 2,500V isolation

Serial Port Speed

RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)

RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)

RS-232: 50~115.2 kbps; RS-422/485: 50~921.6 kbps

RS-232: 50~115.2 kbps; RS-422/485: 50~921.6 kbps

RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)

RS-232: 50 ~ 115.2 kbps; RS-422/485: 50 ~ 115.2 kbps (Max.)

LAN

8 x 10/100/1000 Base-T RJ45 ports

8 x 10/100/1000 Base-T RJ45 ports

8 x 10/100/1000 Base-T RJ45 ports

8 x 10/100/1000 Base-T RJ45 ports

8 x 10/100/1000 Base-T RJ45 ports

8 x 10/100/1000 Base-T RJ45 ports

USB

6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal

6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal

6 x USB, UHCI, Rev 2.0 Compliant;2 x Front Rev 3.0 Compliant

6 x USB, UHCI, Rev 2.0 Compliant;2 x Front Rev 3.0 Compliant

6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal

6 x USB, UHCI, Rev.2.0 Compliant; 2 x Front, 3 x Rear and 1 x Internal

Extension

2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)

2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)

2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)

2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)

2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)

2 Domain I/O Expansion Slots(Each slot supports 1 x PCIe and 2 x PCI Interface)

Environment



Temperature (Operating)

IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)

IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)

IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)

IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 70°C (-13 ~ 158°F)

IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 60°C (-13 ~ 140°F)

IEC 60068-2-2 with 100% CPU/ I/O loading, 24 hrs -25~ 60°C (-13 ~ 140°F)

Humidity (Operating)

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Humidity (Storage)

5 ~ 95% RH, non-condensing

5 ~ 95% RH, non-condensing

5 ~ 95% RH, non-condensing

5 ~ 95% RH, non-condensing

5 ~ 95% RH, non-condensing

5 ~ 95% RH, non-condensing

Vibration Protection

IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz

IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz

IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash: 2 Grms @ 5 ~ 500 Hz

IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash: 2 Grms @ 5 ~ 500 Hz

IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz

IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms @ 5 ~ 500Hz

Shock Protection

IEC 68 2-27 CFast®: 30 G half sine,11 ms

IEC 68 2-27 CFast®: 30 G half sine,11 ms

IEC 68 2-27 CFast®: 30 G half sine,11 ms

IEC 68 2-27 CFast®: 30 G half sine,11 ms

IEC 68 2-27 CFast®: 30 G half sine,11 ms

IEC 68 2-27 CFast®: 30 G half sine,11 ms
