Specifications
|
|
General
|
|
| Certification |
CE, FCC, UL, CCC, BSMI |
| Dimensions (W x D x H) |
150 x 107 x 60 mm (5.91 x 4.22 x 2.36 in) |
| Form Factor |
Small |
| Enclosure |
Aluminum housing |
| Mount Options |
Stand, DIN rail (optional) |
| Weight (Net) |
1.8 kg (3.9 lb) |
| Power Requirement |
12VDC |
| Power Consumption |
31W (typical), 54W (Max) |
| OS Support |
Windows 10 2019 LTSC, AdvLinux (Ubuntu 18.04) |
System Hardware
|
|
| BIOS |
AMI EFI (256 Mbit) |
| Watchdog Timer |
Programmable timer with 255 intervals (1 ~ 255 sec) |
| TPM |
TPM2.0 (SLB9670XQ2.0) |
| Processor |
Intel® i7-8665UE quad core, 1.7 GHz (up to 4.4 GHz)
Intel® i5-8365UE quad core, 1.6 GHz (up to 4.1 GHz)
Intel® i3-8145UE dual core, 2.2 GHz (up to 3.9 GHz)
|
| Memory |
2 socket DDR4 2400 (up to 32 GB max.) |
| Graphics Engine |
Intel® UHD Graphics 620 |
| Ethernet |
10/100/1000 Mbps (LAN1: Intel® i219; LAN2: Intel® i210-IT) |
| LED Indicators |
Power and HDD status |
| Storage |
32GB of eMMC 5.1 (Onboard)
1 x M.2 B Key 2280 (SATA or NVMe PCIex2), shared with expansion
|
| Expansion |
1 x M.2 B Key 3042 (For LTE module , support USB 2.0 only), shared with storage 1 x M.2 E Key 2230 (For WiFi module, support PCIe and USB 2.0) |
| SIM slot |
Yes (One for nano size) |

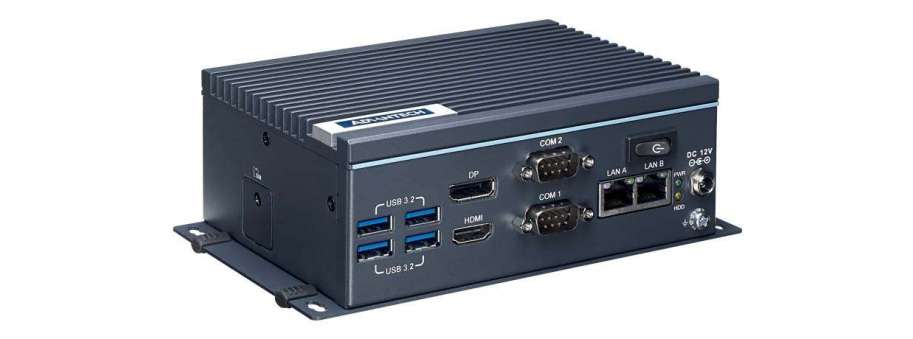

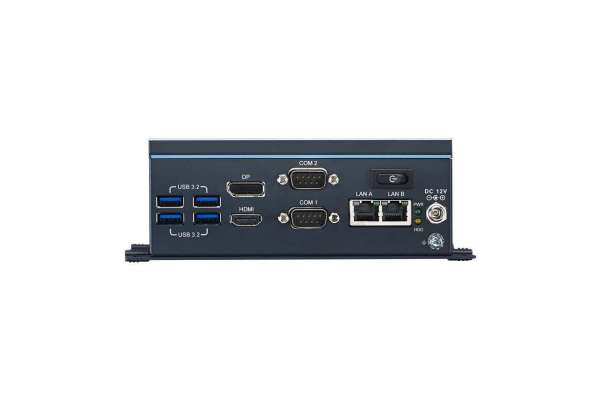

I/O
|
|
| Serial Ports |
2 x RS-232/422/485 |
| LAN |
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet |
| USB |
4 x USB 3.2 |
| Displays |
1 x HDMI 1.4 (up to 4096 x 2160 @30/24 Hz)
1 x DP 1.2 (up to 4096 x 2306 @60 Hz)
|
| Power Connector |
1 x Lockable DC jack |
| Audio |
1 x Line out |
| Others |
1 x GPIO (8 bit) (CAN bus 2.0 is available upon request) |
Environment
|
|
| Operating Temperature |
-20 ~ 60 °C/-4 ~ 140 °F with 0.7m/s air flow and extended temperature peripherals (for more information refer to the optional memory list on page 2) |
| Storage Temperature |
-40 ~ 85 °C/-40 ~ 185 °F |
| Relative Humidity |
10 ~ 95% RH @ 40 °C/104 °F, non-condensing |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection |
Operating, IEC 60068-2-64, 3Grms, random, 5 ~ 500Hz, 1hr/axis |
