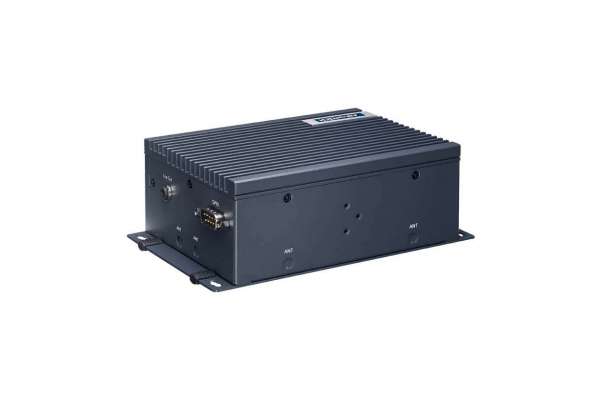

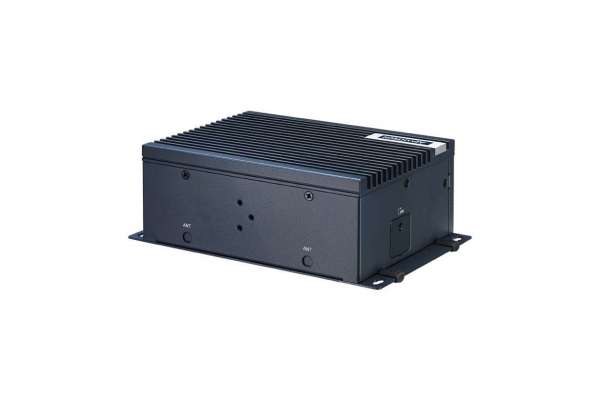

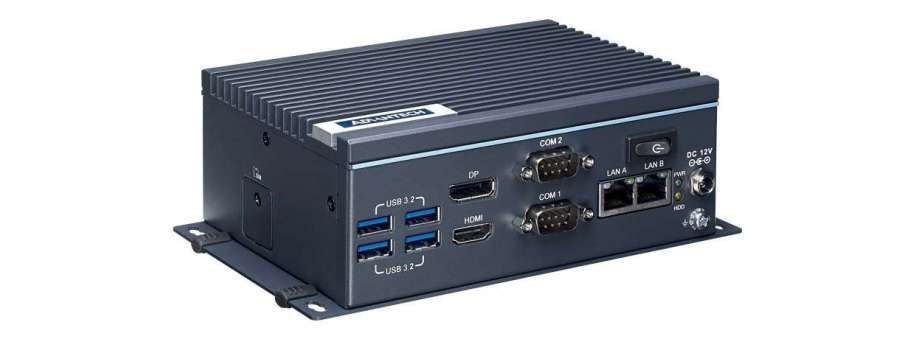

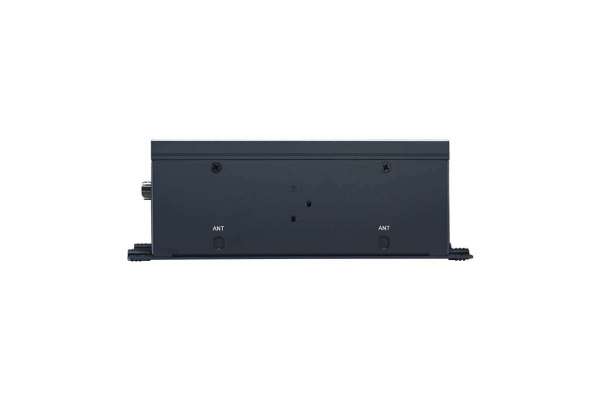

Compact IoT Edge PC UNO-238

Compact IoT Edge Computer UNO-238 by Advantech with Intel® Core™ i Processor, 2 x GbE, 4 x USB 3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPI

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Designed for high-performance computing 8th gen applications, UNO-238 provides a competitively priced computing solution in an optimized compact form factor. Also, UNO-238 is an ideal platform for IT-level applications that require semi-industrial yet cost-efficient computing solutions.

  • 8th generation Intel® Core™ i processor

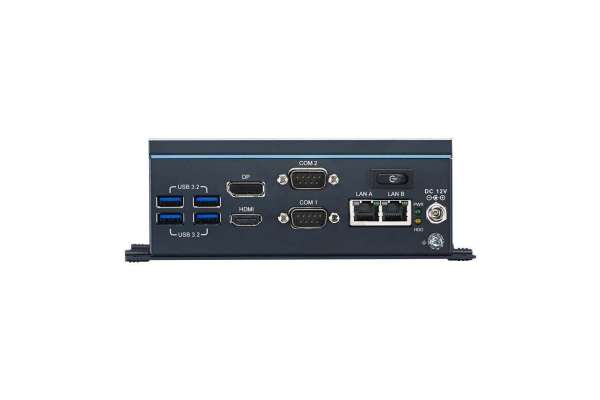

  • 2 x GbE, 4 x USB3.2, 2 x RS-232/422/485, 1 x HDMI, 1 x DP, 1 x GPIO (8 bit)
  • Compact, fanless design
  • Rubber stopper for stand mount and optional kit for DIN-rail mounting
  • Threaded DC jack for reliable power supply
  • Optimized mechanical design for easy RAM swapping

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-238-83N1AE Компактний промисловий комп'ютер Advantech UNO-238, i3-8145UE (3.9GHz), eMMC 32Gb, 4xUSB 3.1, DP+HDMI, 2xCOM, GPIO  36 785,8
UNO-238-85N1AE Компактний промисловий комп'ютер Advantech UNO-238, i5-8365UE (4.1GHz), eMMC 32Gb, 4xUSB 3.1, DP+HDMI, 2xCOM, GPIO  49 435,5
UNO-238-87N1AE Компактний промисловий комп'ютер Advantech UNO-238, i7-8665UE (4.4GHz), eMMC 32Gb, 4xUSB 3.1, DP+HDMI, 2xCOM, GPIO  59 009,2

Additional information

Specifications



General


Certification CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H) 150 x 107 x 60 mm (5.91 x 4.22 x 2.36 in)
Form Factor Small
Enclosure Aluminum housing
Mount Options Stand, DIN rail (optional)
Weight (Net) 1.8 kg (3.9 lb)
Power Requirement 12VDC
Power Consumption 31W (typical), 54W (Max)
OS Support Windows 10 2019 LTSC, AdvLinux (Ubuntu 18.04)

System Hardware


BIOS AMI EFI (256 Mbit)
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
TPM TPM2.0 (SLB9670XQ2.0)
Processor

Intel® i7-8665UE quad core, 1.7 GHz (up to 4.4 GHz)

Intel® i5-8365UE quad core, 1.6 GHz (up to 4.1 GHz)

Intel® i3-8145UE dual core, 2.2 GHz (up to 3.9 GHz)

Memory 2 socket DDR4 2400 (up to 32 GB max.)
Graphics Engine Intel® UHD Graphics 620
Ethernet 10/100/1000 Mbps (LAN1: Intel® i219; LAN2: Intel® i210-IT)
LED Indicators Power and HDD status
Storage

32GB of eMMC 5.1 (Onboard)

1 x M.2 B Key 2280 (SATA or NVMe PCIex2), shared with expansion

Expansion 1 x M.2 B Key 3042 (For LTE module , support USB 2.0 only), shared with storage 1 x M.2 E Key 2230 (For WiFi module, support PCIe and USB 2.0)
SIM slot Yes (One for nano size)

I/O


Serial Ports 2 x RS-232/422/485
LAN 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
USB 4 x USB 3.2
Displays

1 x HDMI 1.4 (up to 4096 x 2160 @30/24 Hz)

1 x DP 1.2 (up to 4096 x 2306 @60 Hz)

Power Connector 1 x Lockable DC jack
Audio 1 x Line out
Others 1 x GPIO (8 bit) (CAN bus 2.0 is available upon request)

Environment


Operating Temperature -20 ~ 60 °C/-4 ~ 140 °F with 0.7m/s air flow and extended temperature peripherals (for more information refer to the optional memory list on page 2)
Storage Temperature -40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity 10 ~ 95% RH @ 40 °C/104 °F, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection Operating, IEC 60068-2-64, 3Grms, random, 5 ~ 500Hz, 1hr/axis
