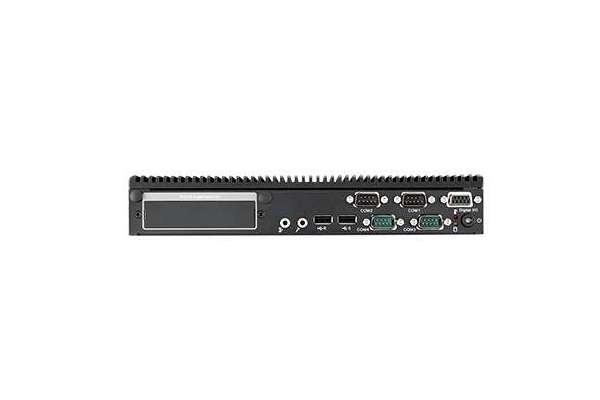

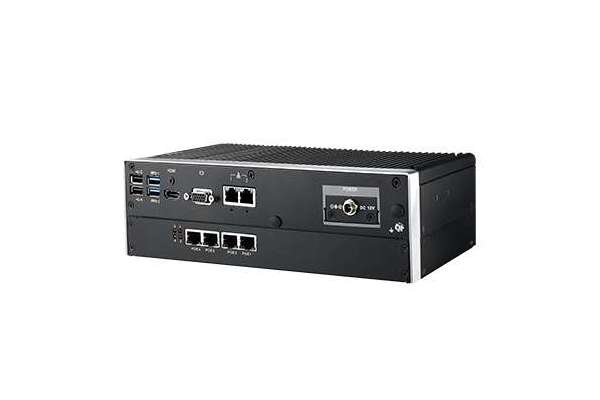

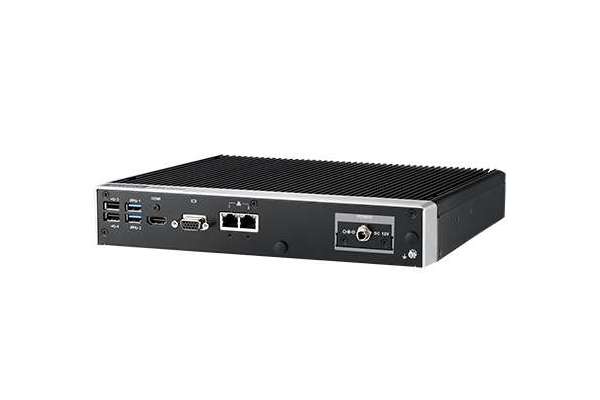

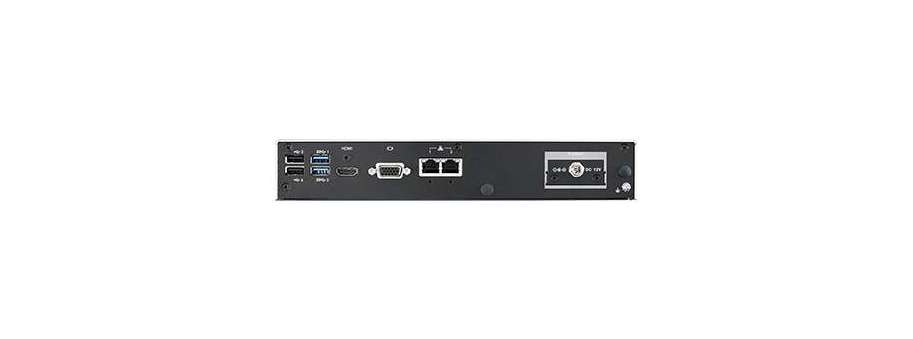

Modular Fanless PC ARK-2232L

Modular Fanless Box PC ARK-2232L on Intel® Atom® E3940 SoC with temperature operating 20 ~ 60 °C

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Intel® Atom® E3940 SoC Modular Fanless Box PC

  • Intel Atom E3940 Quad Core Soc
  • Dual independent displays with one 4K HDMI and one VGA
  • 12V lockable DC jack power input
  • 9-36V power module compatible with all-in-one ordering
  • -20 ~ 60 °C extend temperature operating
  • Mini PCIe expansion with SIM holder for communication module
  • M.2 NGFF 2230 E Key for Wifi communication module
  • mSATA and 1 x 2.5" SATA storage device
  • Advantech iDoor module compatible
  • Advantech EMIO miniPCIe module compatible with all-in-one ordering
  • Advantech MIOe module compatible with all in one ordering (2 Layers)

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-2232L-S6A2 Компактний промисловий комп'ютер Advantech ARK-2232 Intel Atom E3940 F1 1.6GHz VGA HDMI 4COM  19 829,1

Additional information

Part Number

ARK-2232L-S6A2

Processor



CPU

Intel Atom E3940 Quad Core Soc

Core Number

4

Frequency

1.6 GHz, turbo burst 1.8GHz

L2 Cache

2 MB

BIOS

AMI EFI 64 Mbit

Memory



Technology

DDR3L 1866 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

Graphics



Chipset

Intel® HD Graphics 500

Graphic Engine

4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG

VGA

Up to 1920 x 1200 at 60 Hz

HDMI

HDMI 1.4b for HD video playback, 3840 x 2160 at 30Hz

Dual Display

Yes, VGA + HDMI

Ethernet



LAN1

10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN

LAN2

10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN

Audio



Interface

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

I/O



Serial port

2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control

Digital I/O

8bit programmable general purpose input/output

USB

2 x USB 3.0, 4 x USB 2.0

Others



Watchdog timer

255 levels timer interval, setup by software

Expansion



Mini PCIe

1 x full size Mini PCIe with SIM holder

M.2

1 x M.2 2230 E Key

Storage



HDD

Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)

mSATA

1 x full size mSATA socket (share with miniPCIe)

Software Support



Linux

Support by project

Microsoft Windows

Windows 10

Power



Power Type

AT/ATX

Input Voltage

12 VDC (9 ~ 36 VDC as option)

Power Adaptor

AC to DC, DC12V/5A, 60 W (Optional)

Consumption

Typical 7.98 W, Max. 19.76 W

Mechanical



Construction

Aluminum housing

Mounting

Din-Rail mounting, Desk/wall-mounting, VESA mounting

Dimensions

260 x 44 x 140.2 mm (10.24" x 1.73" x 5.52")

Weight

Net Weight: 1.9kg (4.19 lbs); Gross Weight: 2.9kg (6.39 lbs)

Environment



Operational Temperature

With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification



EMC

CE/FCC Class B, CCC, BSMI

Safety Certifications

UL, CCC, BSMI, CB
