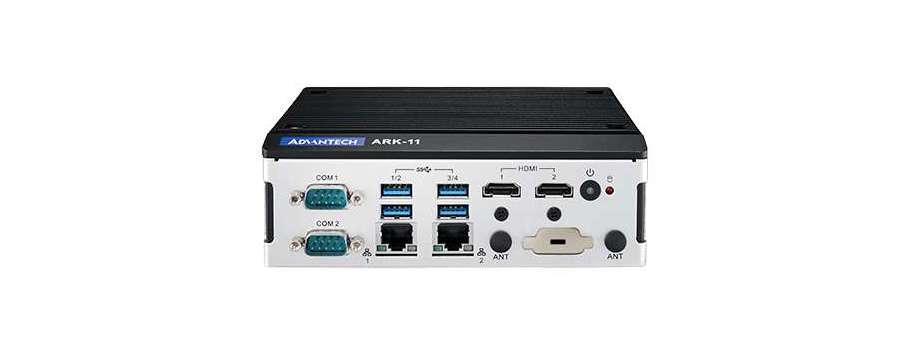

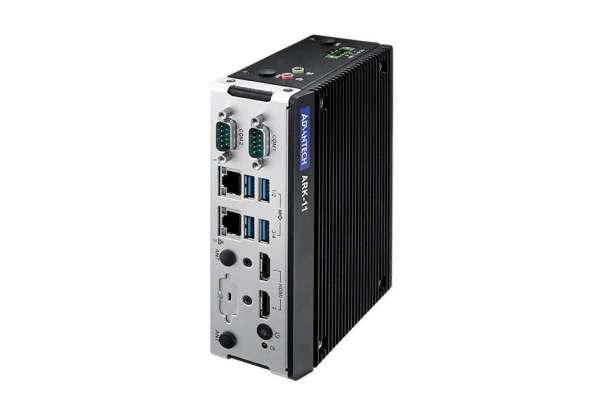

Fanless Box PC ARK-11

Intel Celeron N3350 DC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC ARK-11

Industrial Computer >> Embedded computers and fanless BoxPCs

 Price and avalability

Manufacturer: Advantech Co., Ltd.

Intel Celeron N3350 DC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC

  • Intel Celeron N3350 Dual Core 1.1 GHz
  • DIN-Rail system with essential I/O ports on front-side bezel
  • I-Grade 4G DDR3L memory and 64G SSD built-in
  • Windows 10 IoT Enterprise built-in
  • 60W adaptor bundled in the accessory box
  • Dual HDMI display up to 4K resolution
  • 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
  • 12V ~ 28V wide range power input
  • -30 ~ 70 °C extended operating temperature
  • Advantech WISE-PaaS/DeviceOn support

Price and avalability

Partnumber Description Price VAT incl Avalability
ARK-11-S1A2 Intel N3350 F1 DC w/4G RAM,64G SSD,win10 and ADP  22 776,4

Additional information

Part Number

ARK-11-S1A2

Processor



CPU

Intel Celeron N3350 Dual Core SoC

Frequency

1.1 GHz, turbo burst 2.4 GHz

Core Number

2

BIOS

AMI EFI 64 Mbit

Memory



Technology

DDR3L 1866 MHz

Max. Capacity

8GB, 1 x 4GB memory (-40 ~ 85 °C) built-in

Socket

2 x 204-pin SO-DIMM

Graphics



Chipset

Intel HD Graphics 500, CPU integrated

Graphic Engine

Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0

HDMI

HDMI1 : 3840 x 2160 @ 30Hz; HDMI2 : 3840 x 2160 @ 30Hz

Dual Display

HDMI1 + HDMI2

Ethernet



LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio



Interface

Realtek ALC888S, High Definition Audio, Line-out, Mic-in

I/O



Serial port

2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply

USB

4 x USB 3.0

GPIO

8-bit Programmable DIO (Optional)

Expansion



Mini PCIe

1 x Full-size mPCIe with SIM holder

M.2

1 x M.2 2230 E key for WIFI module

Storage



2.5" HDD/SSD

1 x 2.5" 64G MLC SSD (-40~85°C) built-in

mSATA

1 x Full-size mSATA (*share with mPCIe slot)

Others



Watchdog timer

255 levels timer interval, setup by software

Software Support



Microsoft Windows

Windows 10 IoT Enterprise built-in

Linux

Support by project

Power

Power Type

AT/ATX

Input Voltage

12 ~ 28 VDC

Power Adaptor

AC to DC, 24V/2.5A 60W adaptor built-in

Power Consumption



Typical

6.4W

Max.

18.1W

Mechanical



Construction

Aluminum housing

Mounting

DIN-rail/Wall Mount

Dimensions

53.5 x 158 x 114 mm (2.11" x 6.22" x 4.49")

Weight

1.2 kg (2.65lb)

Environment



Operational Temperature

With extended temp. peripherals: -30 ~ 70 °C (-22 ~ 158 °F) with 0.7 m/s air flow, With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow

Storage Temperature

-40 ~ 85° C (-40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration during Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

Certification



EMC

CE/FCC Class B, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI
